INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
7

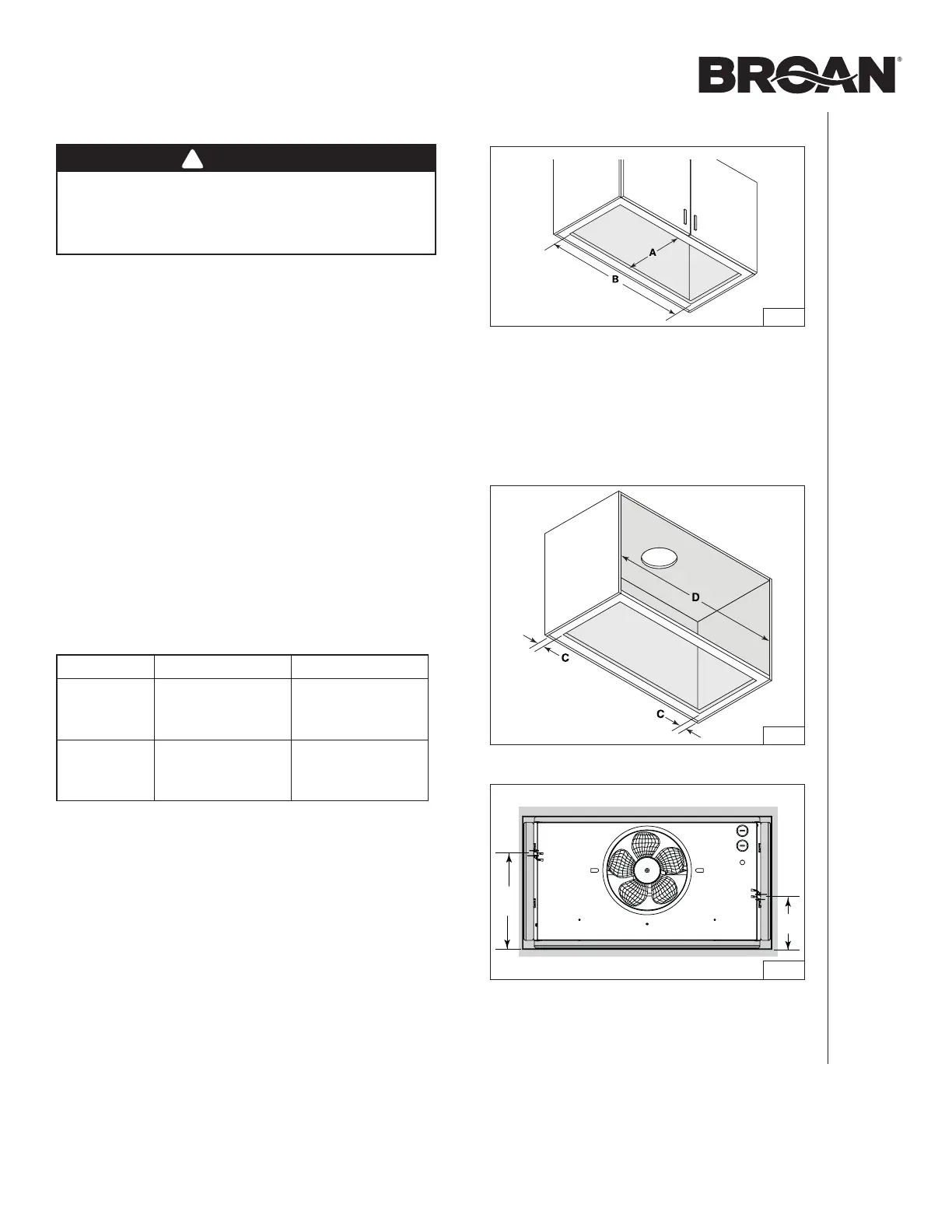

CUT A HOLE IN THE BOTTOM OF THE CABINET
FIG. 6
A = 10¼” (all units)
B = 19
9
/16” (PM300SS)
B = 22 ¹/16” (BBN1243SS)
B = 28 ¹/16” (BBN1303SS)
PREPARE THE CABINET
WARNING
The cabinet must be secured to wall studs or other
wooden framework behind the drywall to support
the weight of this unit. Failure to do so may cause
personal injury or damage to countertop or cooktop.
NOTES: A. The unit has to be installed inside the cabinet. If
installing with one of the optional liners (PM300SS
unit only), use it as a template to cut the hole in
the bottom of the cabinet.
B. The unit should be mounted centered laterally
over the cooktop burners.
C. For back to front position, the unit must be
mounted according to local building codes.
1. Cut a hole in the bottom of the cabinet, using the
dimensions shown (FIG. 6), or use the optional liner as a
template (PM300SS unit only).
2. PM300SS unit only: Where needed, install the metal liner.
Go to PREPARE THE UNIT section on page 10.
3. BBN1243SS and BBN1303SS units only: Measure the
remaining material of the cabinet bottom sides (C) (FIG. 7),
if it is 1/4” or more, there is no need to use the cabinet
brackets. Go to step 8 on page 9.
4. If there is less than 1/4” remaining material (C), carefully
remove those strips. Measure the cabinet inner width (D)
(FIG. 7). Refer to the table below to see which cabinet
bracket edge configuration must be used.
5. Pay attention to the Ease of Install hooks location on the
unit (distance given from unit front flange, FIG. 8). Measure
and mark the position of the Ease of Install hooks (shown
as E in FIG. 9 on next page) on both cabinet side walls.
Unit narrow edge wide edge
BBN1243SS
D
From 22-1/16”
to < 22-1/2”
D
From 22-1/2”
to 23”
BBN1303SS
D
From 28-1/16”
to < 28-1/2”
D
From 28-1/2”
to 29”
FIG. 7
4½
8¼”
FIG. 8
FRONT
UNIT TOP VIEW
To Next Page
