INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
5
INSTALL THE DUCTWORK
(DUCTED INSTALLATION ONLY)
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Decide where the ductwork will run between the hood and
the outside. (FIG. 1)
2. A straight, short duct run will allow the unit to perform most
efficiently.
3. Long duct runs, elbows, and transitions will reduce the
performance of the unit. Use as few of them as possible.
Larger ducting may be required for best performance with
longer duct runs.
4. Install wall cap or roof cap (sold separately). Connect metal
ductwork to cap and work back towards the unit location.
Use 2” metal foil duct tape to seal the joints between
ductwork sections.
24" MIN - 30" MAX
ABOVE
COOKING SURFACE
UNIT
7" ROUND ELBOW
WALL CAP
ROOF CAP
7" ROUND DUCT
HOUSE WIRING
7" ROUND DAMPER
BP87Q (OPTIONAL)
FIG. 1
For ADA compliance installation guidelines, please type the model number into our website.
RECOMMENDED TOOLS AND ACCESSORIES
• Measuring tape
• Phillips screwdriver no. 2
• Flat blade screwdriver (to open knockout holes)
• Saw (to cut holes in cabinet)
• Sheet metal shears
• Pliers
• Metal foil duct tape
• Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• 2 Appropriate wire nuts
• Strain relief, 7/8” diameter (to secure house wiring
cable to the hood)
• BP87Q Damper (optional)
• Liner (optionnal)

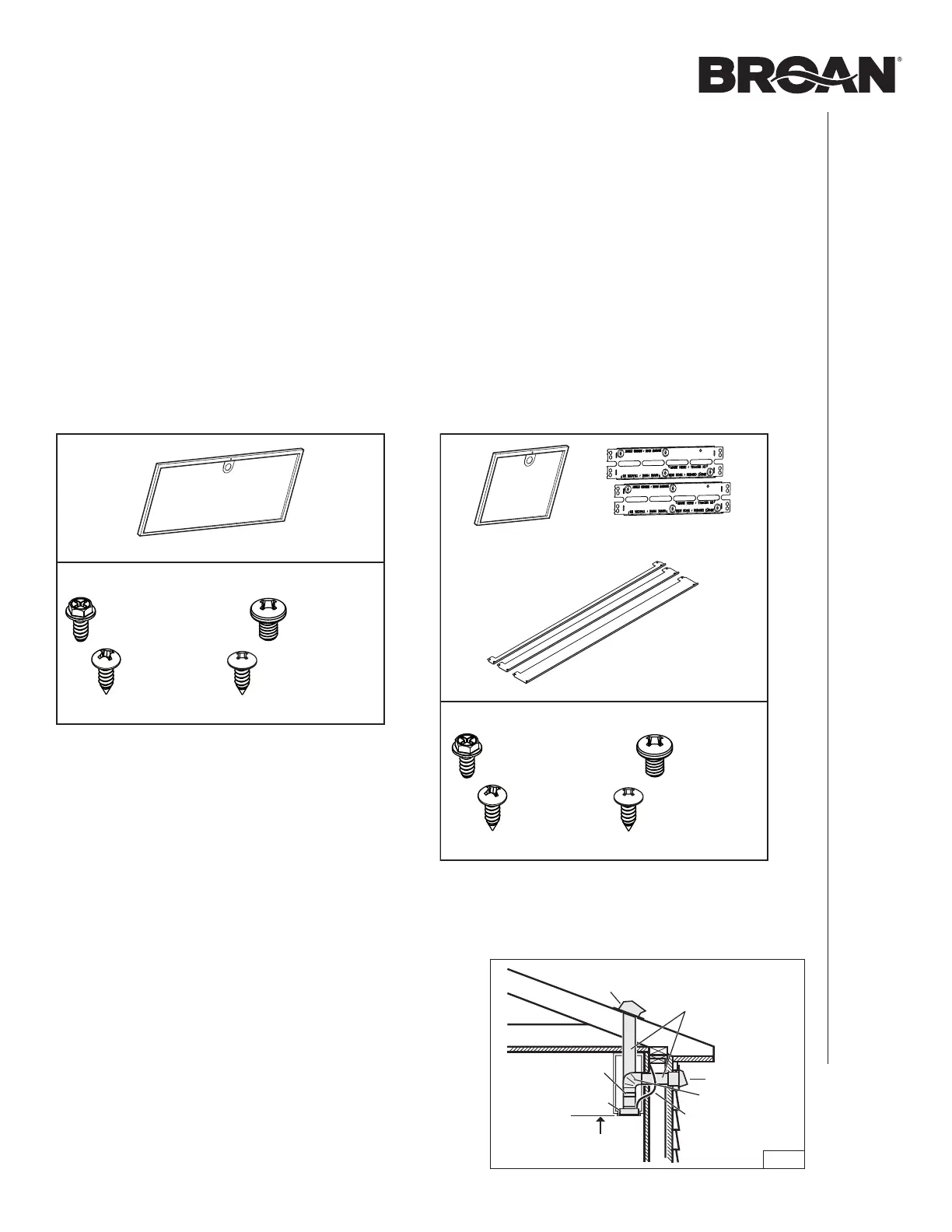

CONTENTS
Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the
manufacturer.
Make sure that the following items are included:
PM300SS BBN1243SS, BBN1303SS
(1) GREASE FILTER
(1) PARTS BAG* CONTAINING:
* FIND PA RTS BAG BEHIND THE WIRING COMPARTMENT COVER.
(4) NO. 8-18 X 1/4”
M
ETAL SCREWS
(8) NO. 8-15 X 5/8”
RD. HD.
W
OOD SCREWS
(4) NO. 6-18 X 3/4”
T
RUSS HEAD
WOOD SCREWS
(4) NO. 8-32 X 1/4”
METAL SCREWS
(2) GREASE FILTERS
(1) SET OF 3 FILLERS
CABINET BRACKETS
(AT TACHED TO THE BACK OF THE UNIT)
(1) P
ARTS BAG* CONTA INING:
* FIND PA RTS BAG BEHIND THE WIRING COMPARTMENT COVER.
(4) NO. 8-18 X 1/4”
METAL SCREWS
(8) NO. 8-15 X 5/8”
RD. HD.
W
OOD SCREWS
(4) NO. 6-18 X 3/4”
TRUSS HEAD
WOOD SCREWS
(4) NO. 8-32 X 1/4”
M
ETAL SCREWS
