3. Configuration Overview
Out of the box, there is no configuration required for the LCEVB to function. Unlike the customer EVB,
the LCEVB is primarily designed for a single mode of operation with no requirement for user
configuration. If you wish to have a more flexible configuration the recommendation is that the fully
configurable customer EVB is purchased.
There are however some jumper footprints and zero ohm resistors populated in positions that would
normally have jumper headers fitted (for example on the MCU power supply lines and tracking to the
peripheral interfaces). If required these can be de-soldered to modify functionality. Any such
modification is done at the full risk of the user and no support or warranty repairs will be provided for a
board that has been modified. Modifications should only be attempted by appropriately trained
personnel using the correct equipment and Personal Protective Apparel
The diagram below gives an overview of the functional blocks of the LCEVB

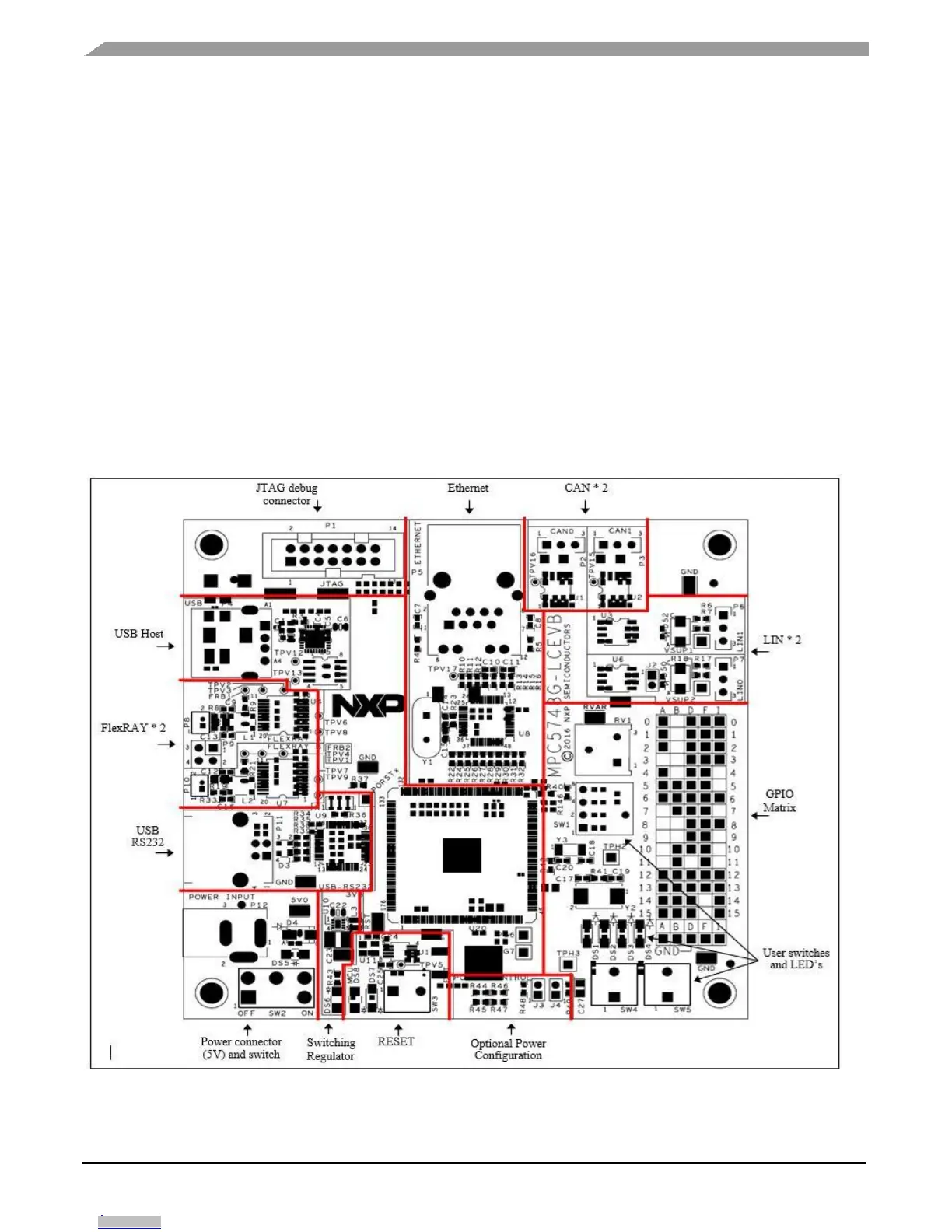

Figure 2. EVB Functional Blocks
MPC5748G Low Cost EVB User Guide, Rev. 1, 08/2016
6 NXP Semiconductors
