Assembling the Stand

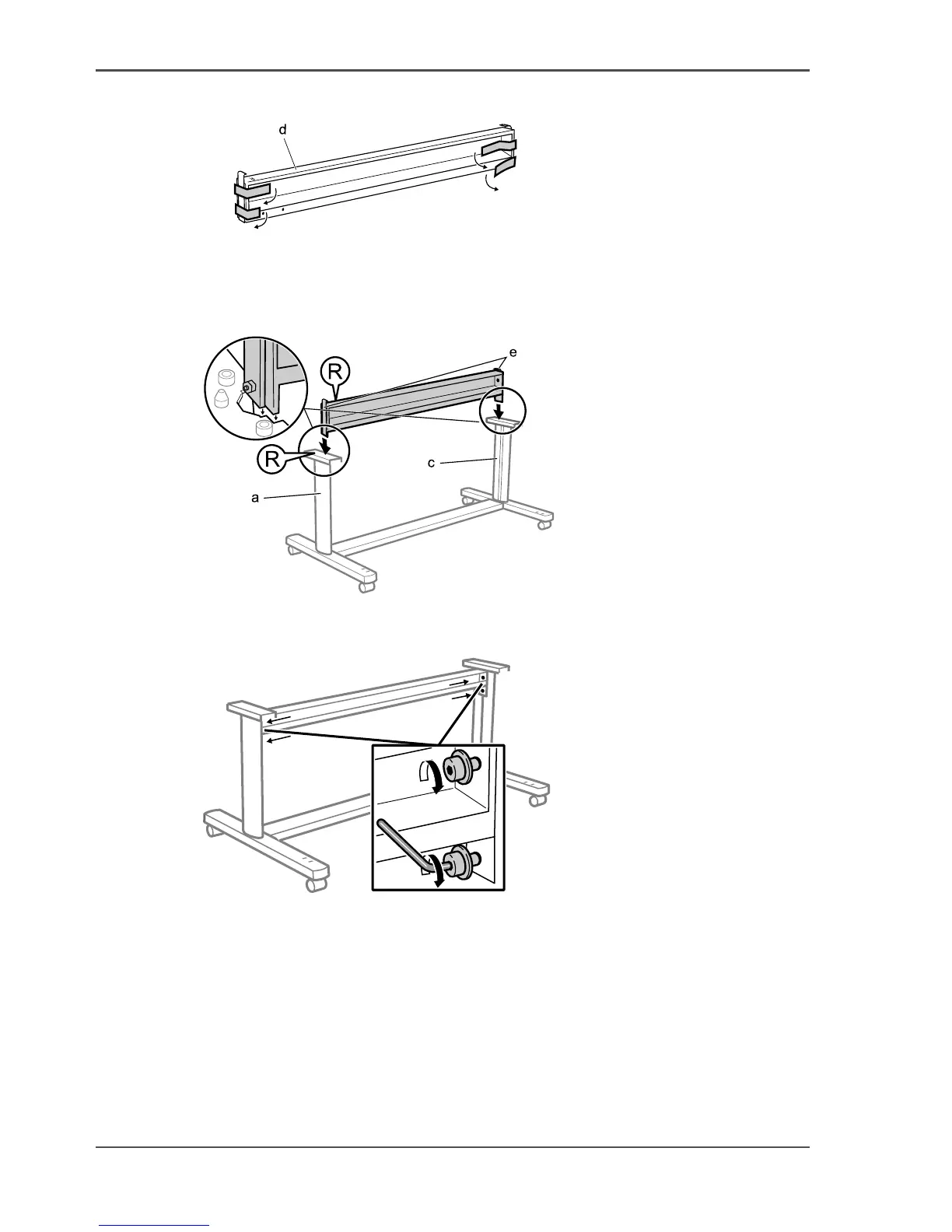

4. Remove the tape that is attached the left and right sides of Stand Upper Stay (d).
[37]
5. Arrange the Stand Upper Stay so that the bends in the brackets on the left and right
side (e) are facing up, and the side marked with an R is facing the Stand Leg R (a).
Insert the Stand Upper Stay into the groove between Stand Leg R (a) and Stand Leg
L (c).
[38]
6. Securely fasten the hex screws on the left and right side using the supplied M8 hex
driver to fix the Stand Stay in place.
[39]
