Assembling the Stand
Assembling the Stand
Caution: Have at least 2 people work on assembling the stand. Attempting
this work alone may cause personal injuries or warp the stand.

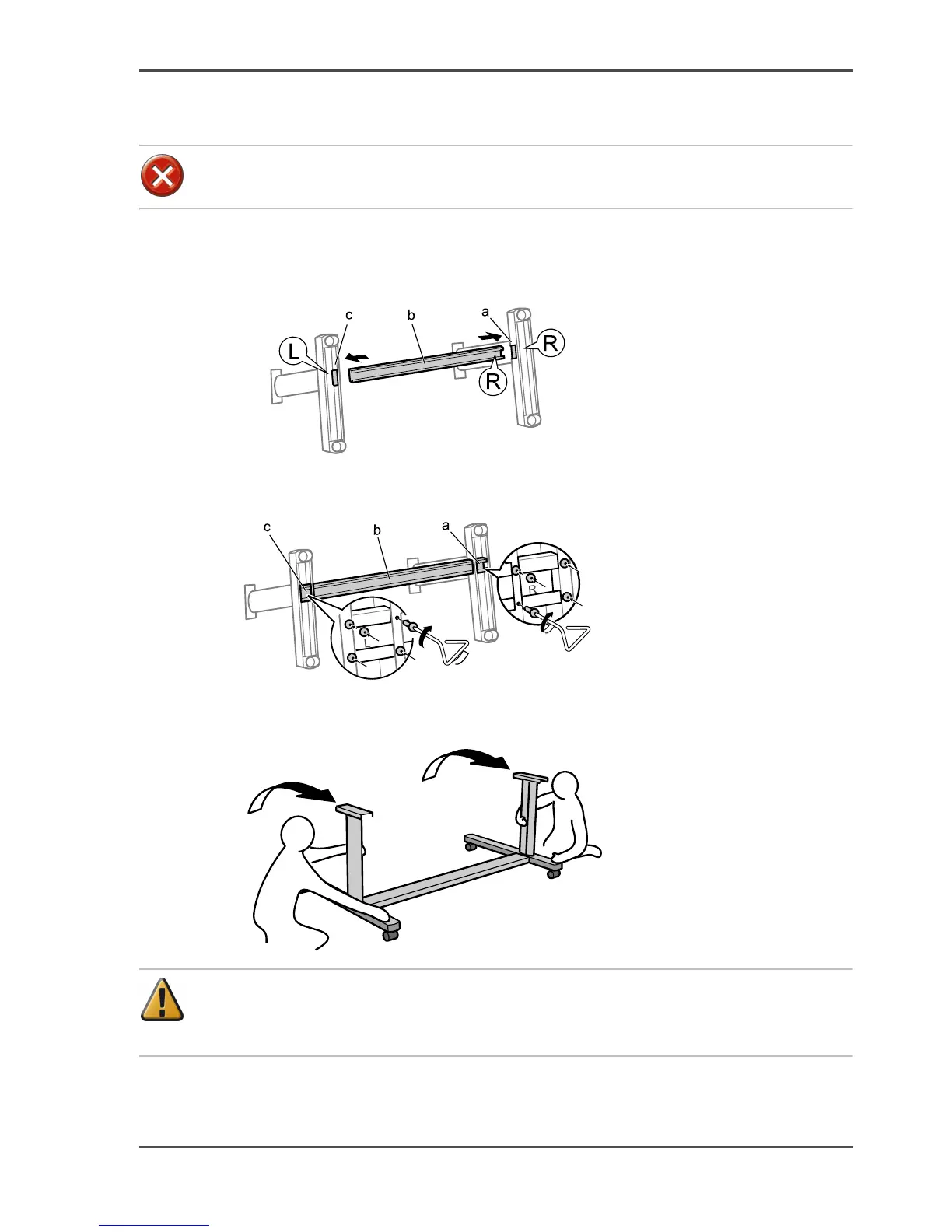

1. Insert the right side of Stand Lower Stay (b) all the way into the hole in the side of
Stand Leg R (a), and insert the left side of Stand Lower Stay all the way into the hold
in the side of Stand Leg L (c).
[34]
2. Securely affix Stand Lower Stay (b) to Stand Leg R (a) and Stand Leg L (c) using 5
hex screws in each side.
[35]
3. Have 2 people grasp the stand from the left and right sides, and lift both sides of the
stand simultaneously.
[36]
Attention: When you are lifting the stand, make sure that you lift both sides at
the same time. Lifting one side at a time can cause the stand to warp and create
problems in the assembly.
