- 124 -
Replacing a headlight bulb
If a headlight bulb burns out, replace it as
follows.

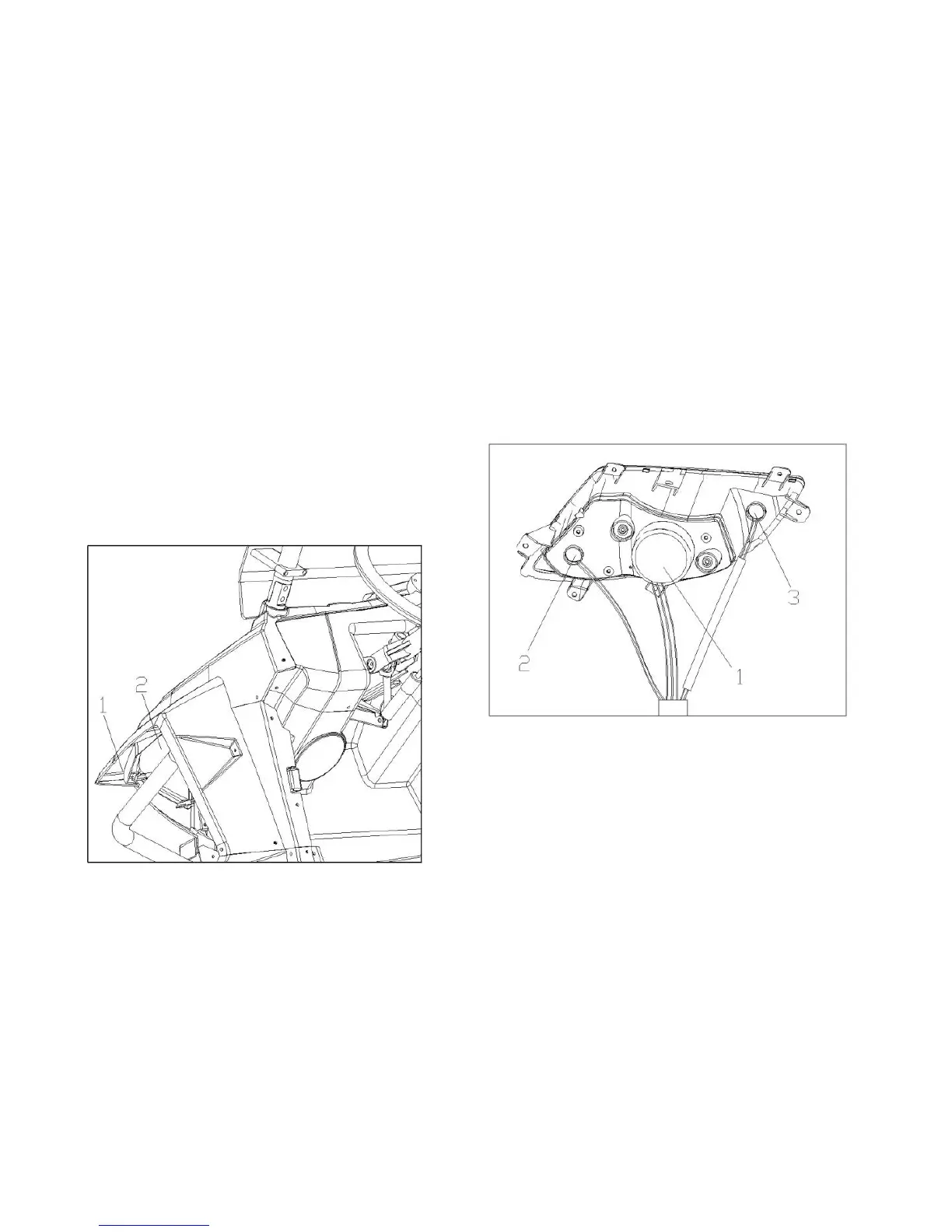

1. Left and right headlights on the front
panel can be taken off from the back of
it.
1. Front plate
2. Front headlight
2. Remove the bulb holder cover at the
rear of the headlight by pulling it off.
1. Headlight bulb holder cover
2. Steering lamp holder
3. Driving lamp holder
