SD SERIES BENCH SCALE EN-3
Battery Installation (Optional)
• Open the battery cover on the bottom of the Indicator and install three “C”
size (LR14) alkaline batteries into the compartment. Orient the batteries as
shown on the inside cover. Close the battery cover.
NOTE: Batteries are not included.

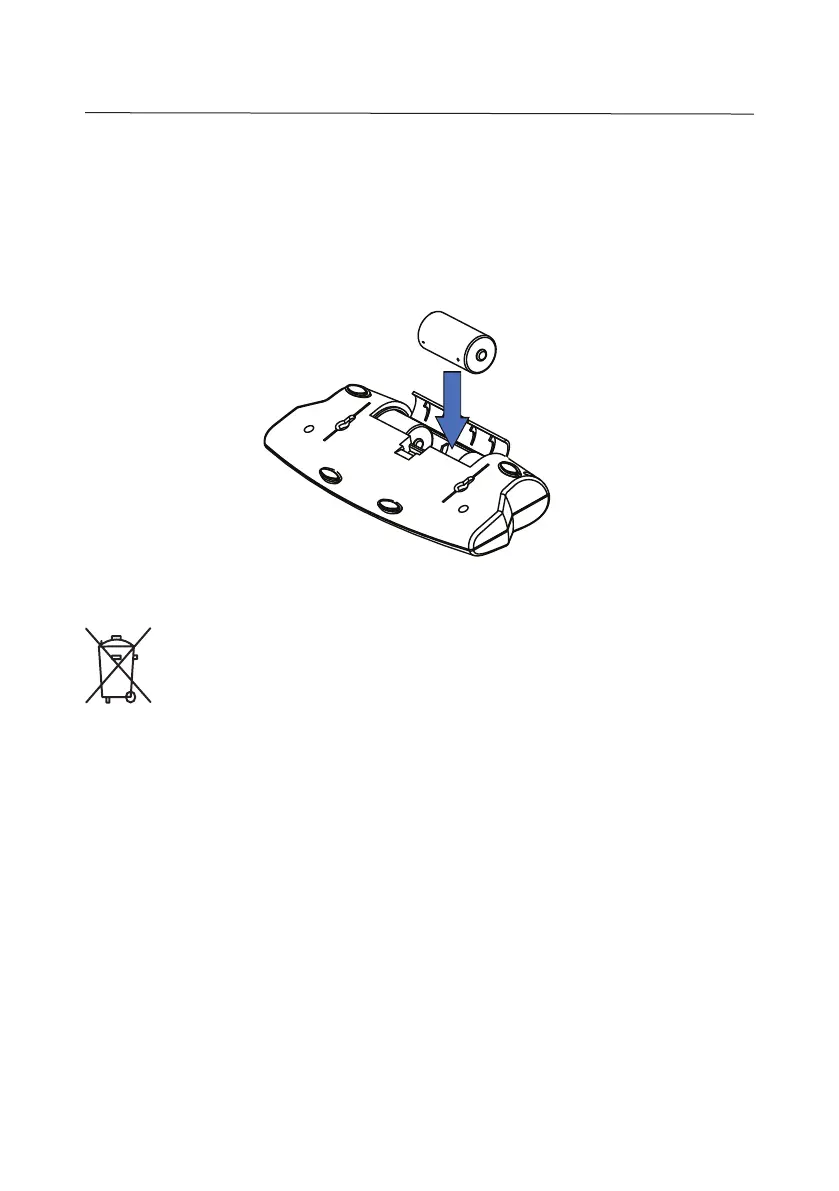

Figure 2. Battery Installation.
CAUTION: Do not dispose of used batteries in domestic waste. Follow
the proper disposal or recycling requirements in accordance with local
laws and regulations.
Indicator Mounting and Placement Options
• Table Top Placement:
The Indicator may be placed on a flat table surface without additional
hardware. Four rubber feet provide reduced slippage on most surfaces.
• Direct Wall Mounting:
The Indicator may be mounted directly to a wall using two screws (not
included). Select appropriate size screws that fit into the holes at the bottom
of the Indicator housing. See Figure 3. When mounting to a wall without a
solid backing, use appropriate anchoring hardware.
