Chapter 2 11
Description of Components
Chapter 2
Description of Components
This chapter describes the components of the Model 5380 PFPD and Detector
Controller. Refer to this chapter as needed.
Model 5380 Detector Assembly-
Assembled View
HV Cable (SHV connector) connects to the PMT HV (high voltage) connector on
the back of the Model 5380 Detector Controller.
Ignitor Cable connects to the ignitor connector on the back of the Model 5380
Detector Controller.
Signal Cable (BNC connector) connects to the PMT signal connector on the back
of the Model 5380 Detector Controller.
Ignitor Cable
Heater and Temperature
Sensor Cable
Gas Lines
HV Cable
Signal Cable
Mounting Plate

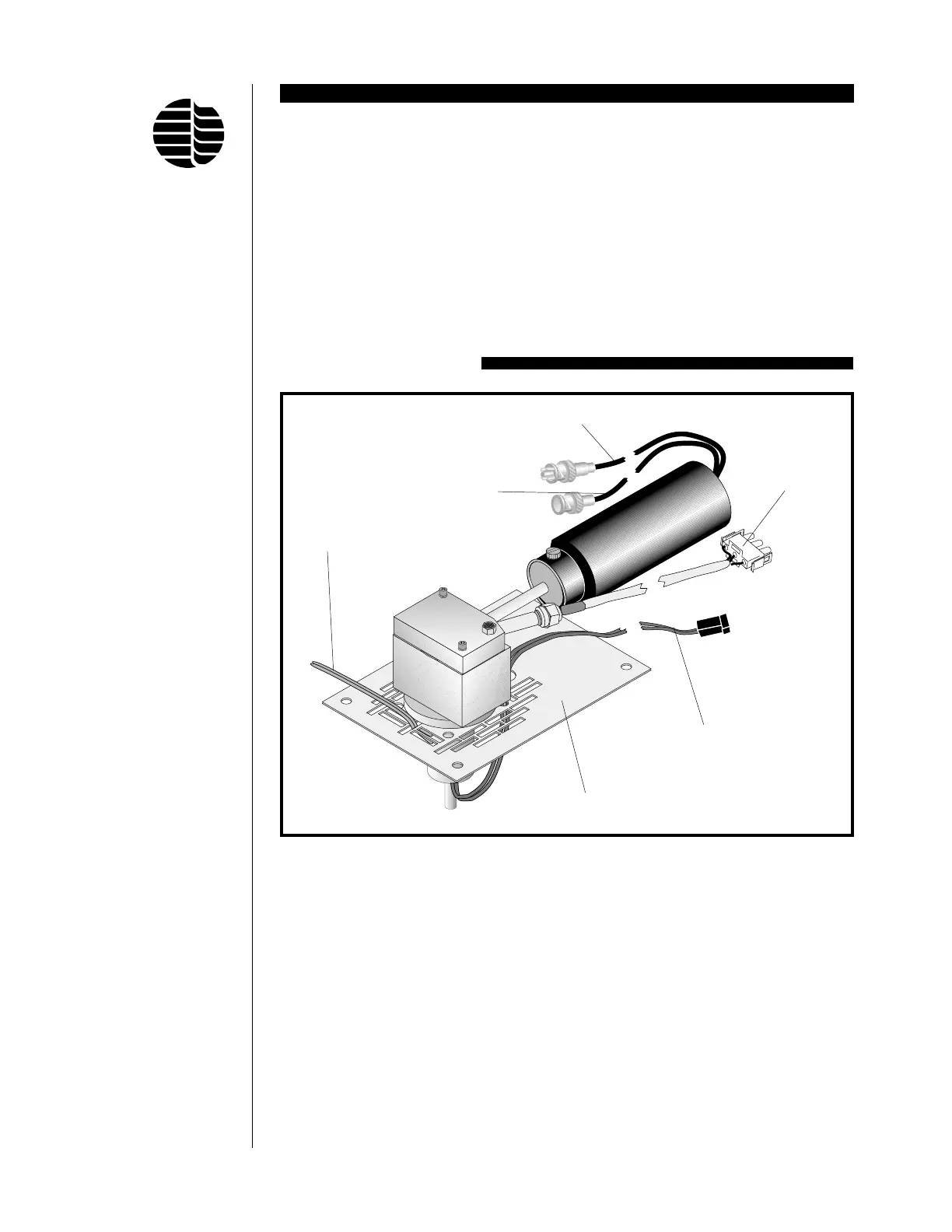

Figure 2.1. Model 5380 Detector Assembly - Assembled
