OI Analytical 5380 - Replacing Optical Components

78 Model 5380 PFPD Operator’s Manual
Rev. 3.1
8. Reconnect the ignitor cable to the Detector Controller.
10. Turn on the Detector Controller. Using WinPulse, reset the PMT voltage and
ignitor current to the desired set value.
Replacing the Optical Components
The three main components of the PFPD’s photomultiplier assembly that can be
replaced are the PMT, the optical filter, and the light pipe. These components are
shown in Figure 6.3.
Never use bare hands when installing the PFPD optics. Never handle tool parts
used to remove or replace internal parts of the detector. Always use clean latex
gloves and use Teflon-coated forceps to remove and replace internal optical parts.
Place optical parts on a clean, lint-free lab tissue or in a clean glass beaker, unless
otherwise stated.

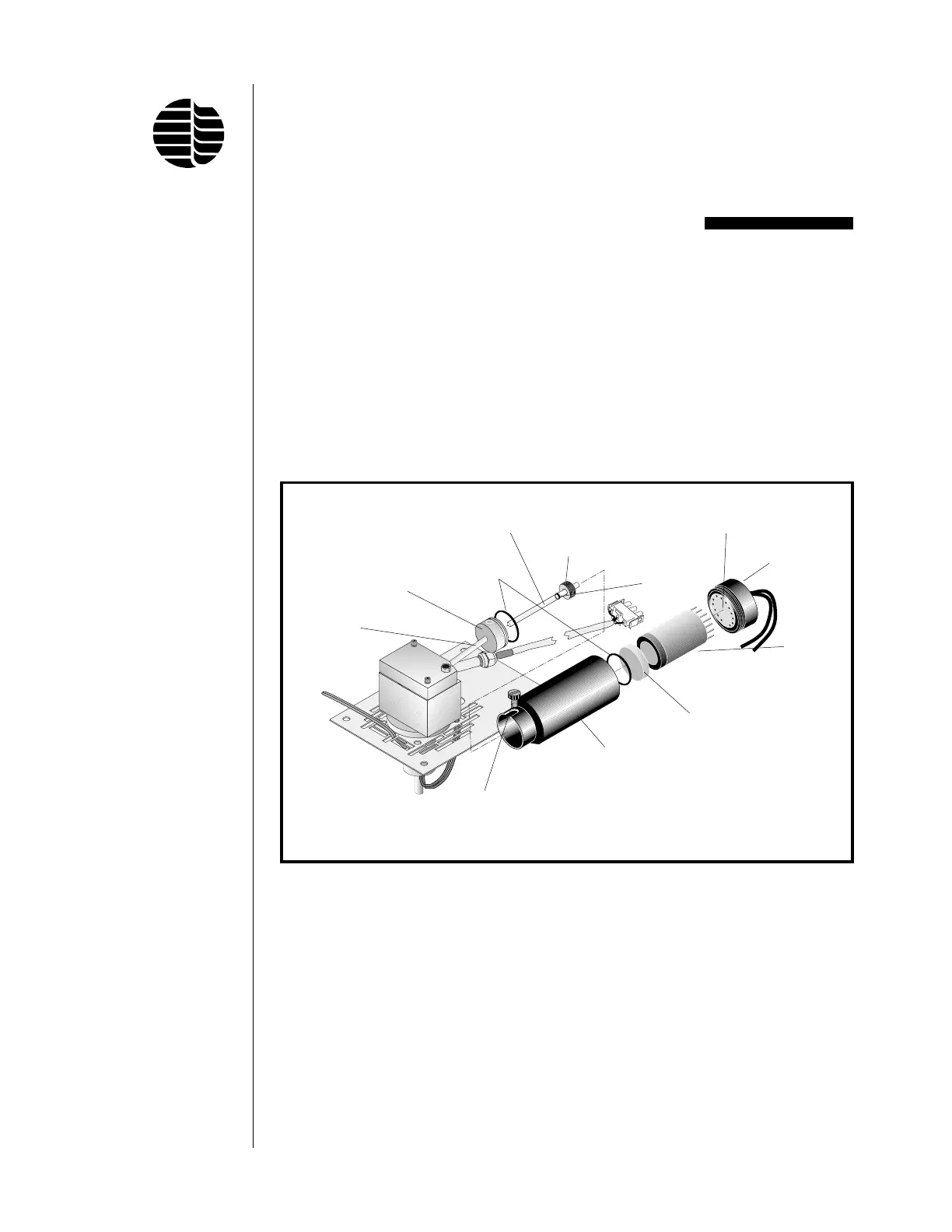

Figure 6.3. Photomultiplier Tube (PMT) Assembly
Light Pipe
Housing
PMT Mount
Viton O-ring
#288084
Light Pipe
#282608C
Light Pipe Clamp
#245563C
Viton O-ring
#288068
PMT Thumbscrew
#177065
PMT Housing
#286096
Optical Filter
#282947(BG-12)
#282921(GG-495)
#290007(RG-695)
#290015(BG-39)
or #290031(WG-345)
PMT
#284364
PMT Cap
PMT Socket
