74 Model 5380 PFPD Operator’s Manual
Rev. 3.1
5. Using the appropriate combustor extractor tool (Part #280719 for 2-mm I.D.
combustor; Part #280727 for 3-mm I.D. combustor) (see Figure 4.9) and
Teflon-coated forceps, carefully remove the combustor from the detector
body. Invert the combustor extractor tool, immediately reinsert it into its
protective sheath, and stand it on end. Make sure that it is placed where it will
not be accidentally knocked over.
6. After the combustor has been placed within the protective sheath, carefully
examine the combustor for signs of contamination. If the combustor does not
appear to be contaminated, place it in the plastic receptacle in which it was
supplied or in a clean, sealable plastic bag, and store it in a safe place. If only
changing the combustor, go to “Installing the Combustor” in this chapter.
Examining the Column Tip
1. Verify that the combustor has been removed.
2. Remove the detector body mounting screws (Part #295295C) using a U/yr"
Allen wrench. Place the screws on a clean lab tissue.
3. Gently lift the detector body straight up and off of the detector base, taking
care not to crush the column extending beyond the top of the combustor
support. Place the detector body on its side on a clean lab tissue.

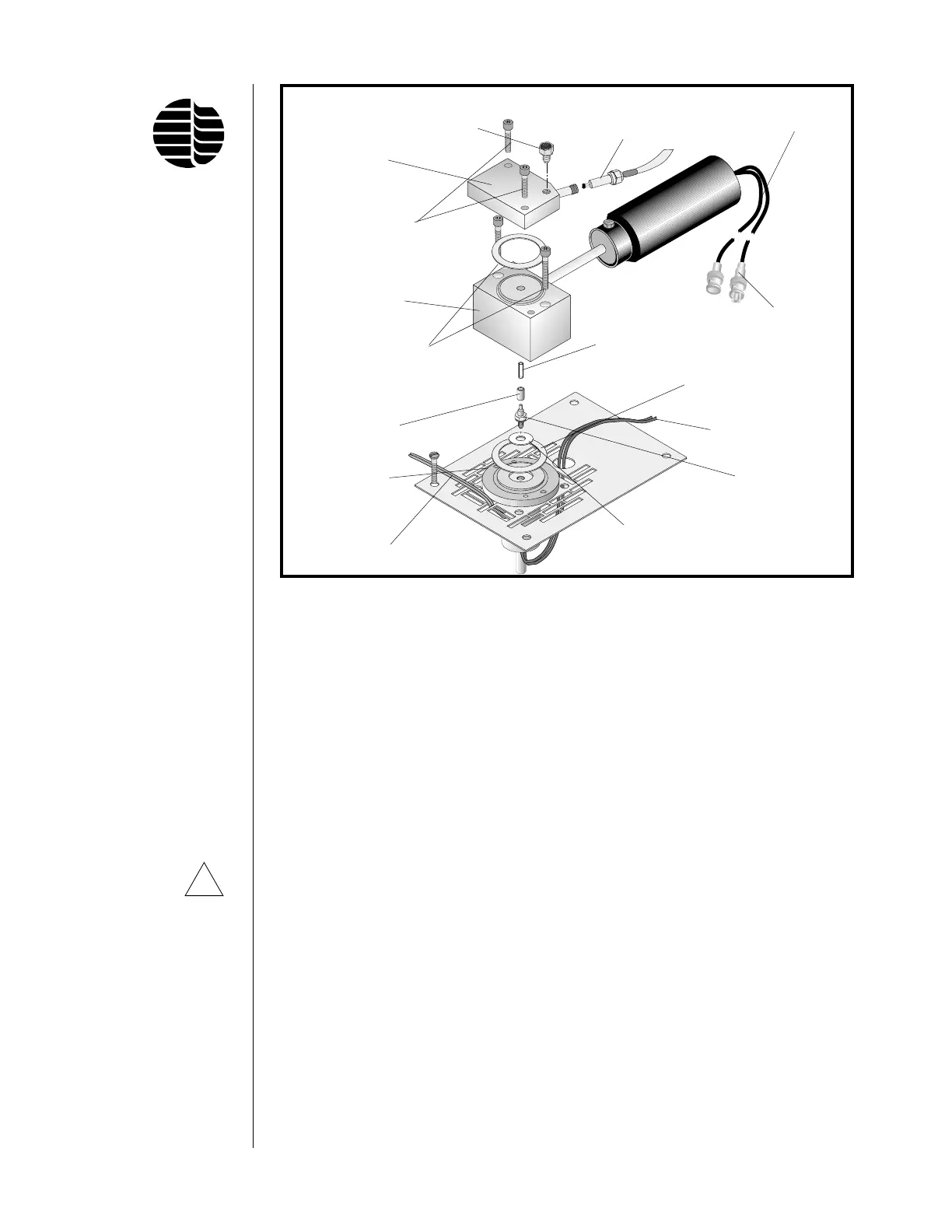

Figure 6.1. Model 5380 PFPD Assembly
Detector Cap
#246900
Detector Cap
Mounting Screws
#295287C
Detector Body
Mounting Screws
#295295C
Detector Body
#301333
Combustor
#282939C (2 mm)
or #282913C (3 mm)
Combustor Sleeve
#283093C
Aluminum Washer
#288050
PMT Signal Cable
PMT HV Cable
Heater Cable
Detector Base
Combustor
Support Washer
#288076
Gas Lines
Combustor
Support
#280461C
or #280453C
Flame Arrestor
#286393
Ignitor Assembly
#282624
!
CAUTION:
Due to high
temperatures, the
mounting screws
may become
increasingly
difficult to
remove. If any
resistance is
experienced in
removing them,
replace them with
new screws.
To Next Page
