148 A Appendix
Settings on the Printer Driver
The procedure here explains with Windows XP as an example.
1. Set the port that is used when installing to COM n (n=1, 2, 3,…).
2. After installation, click [Start] on the task bar, then select [Printers and Faxes].
3. Click the icon of this printer, and then select [Properties] from the [File] menu.
4. Click the [Ports] tab to confirm the port that is specified when installation is set, then
click [Configure Port].

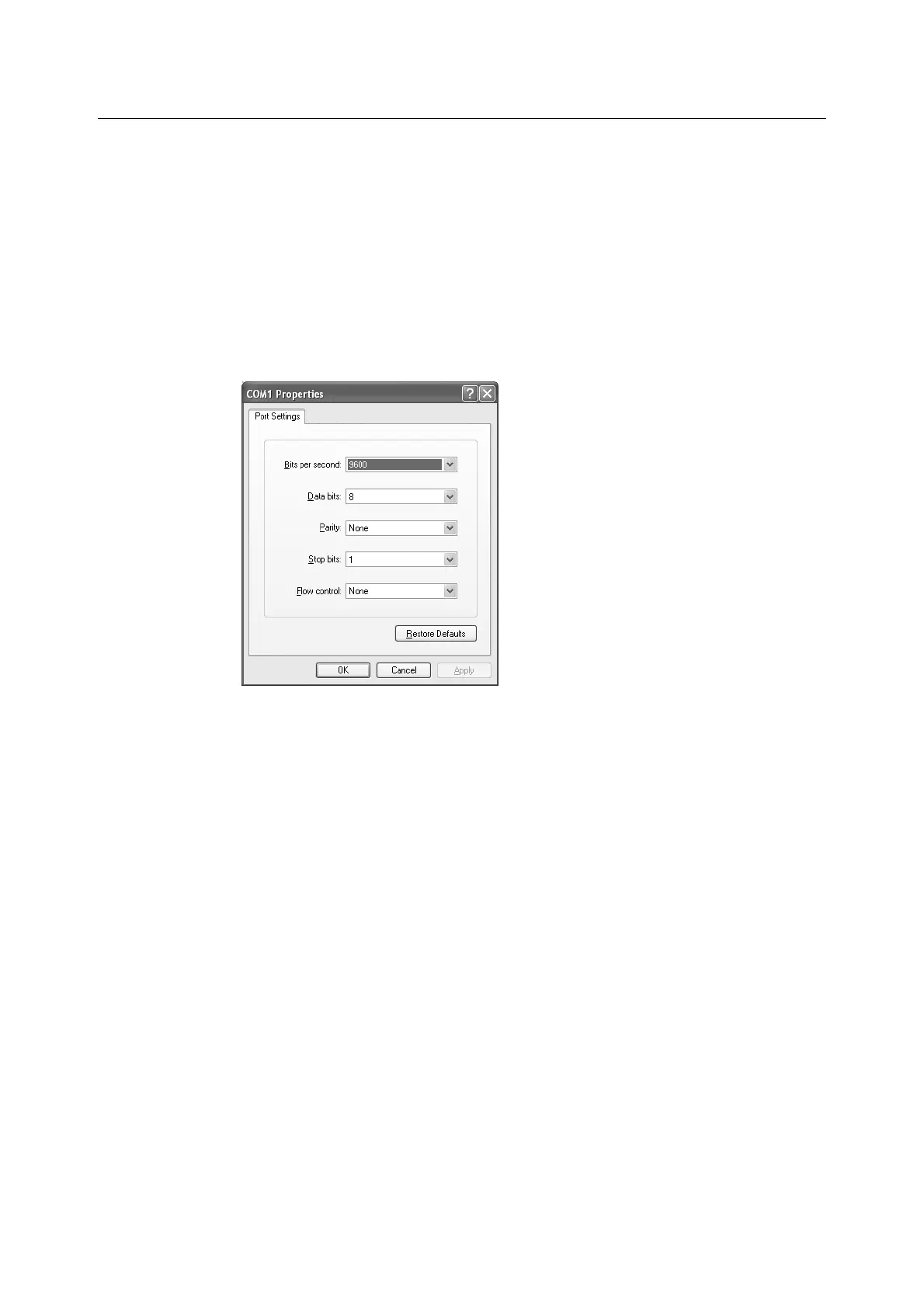

5. Set each item.
Bit/Sec: Select the value of Baud rate that is set on the printer.
Data bit: Select [8].
Parity: Select the value that is set on the printer.
Stop bit: Select the value that is set on the printer.
Flow control: Select [None] when the flow control is not enabled. Select [Xon/Xoff]
when setting [Xon-Xoff Control] to [On] on the printer. Select [Hardware]
when setting [DTR Control] to [Active-High] on the printer.
6. Click [OK].
7. Click [OK] in the printer properties dialog box.
To Next Page
