- 106 -
5. Maintenance
3

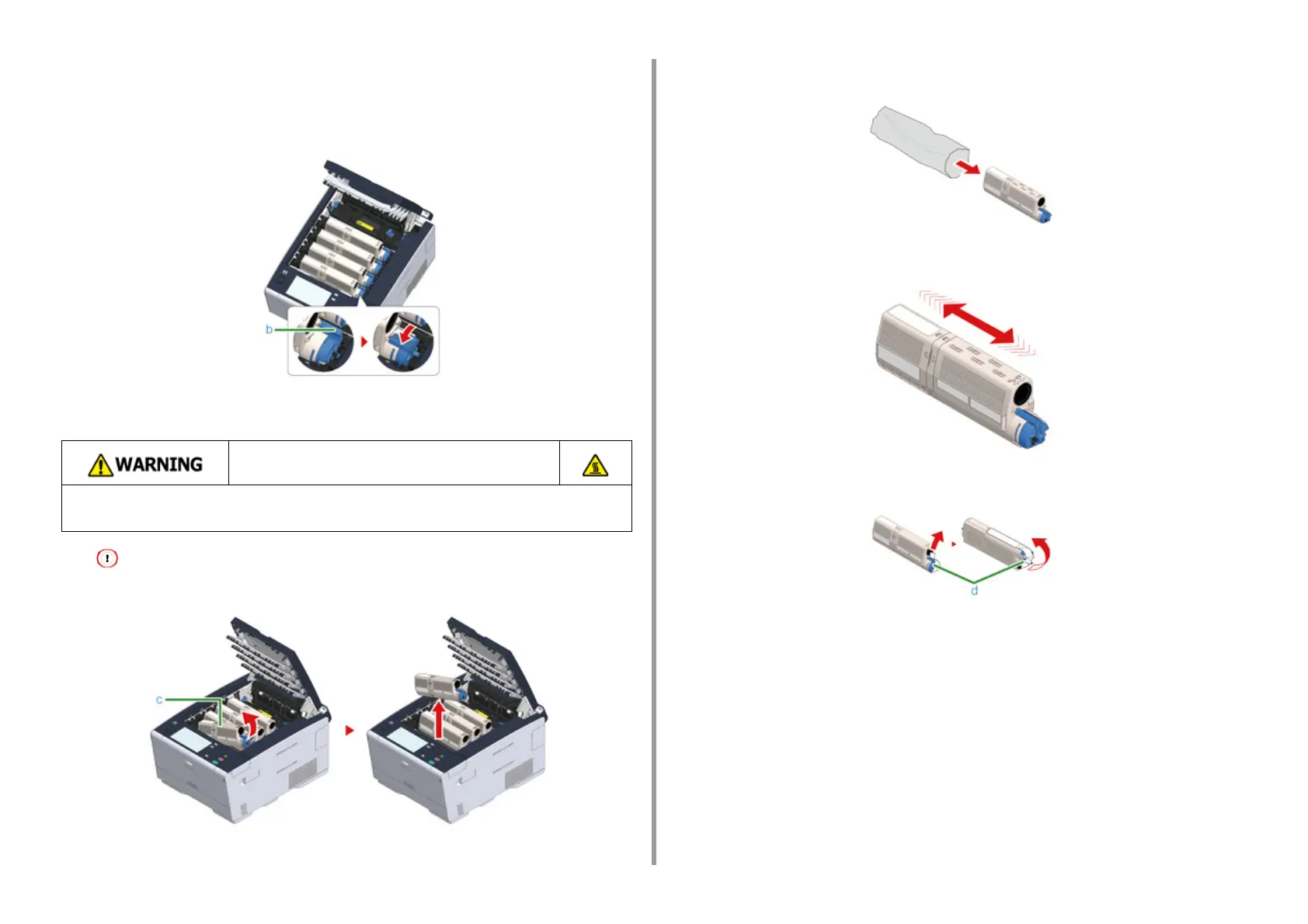

Identify an empty toner cartridge by its label color.
4
Pinch the tip of blue lever (b) of the toner cartridge and turn it toward you until
the tip aligns on the lug of the cartridge.
5
Lift the toner cartridge (c) from right side, and remove it from the machine.
While removing consumables, be careful not to hit them to the LED head.
6
Unpack a new toner cartridge.
7
Shake the cartridge several times vertically and horizontally.
8
Remove the tape (d) from the toner cartridge.
9
Insert a new toner cartridge (c) by aligning its left side indentation (e) with the
protrusion (f) on the image drum so the toner cartridge and image drum color
labels align. Then insert the right side gently into place.
Burns may result.
Never throw a used image drum or toner cartridge into a fire. They may explode, and
the toner inside may fly off and cause burns.
To Next Page
