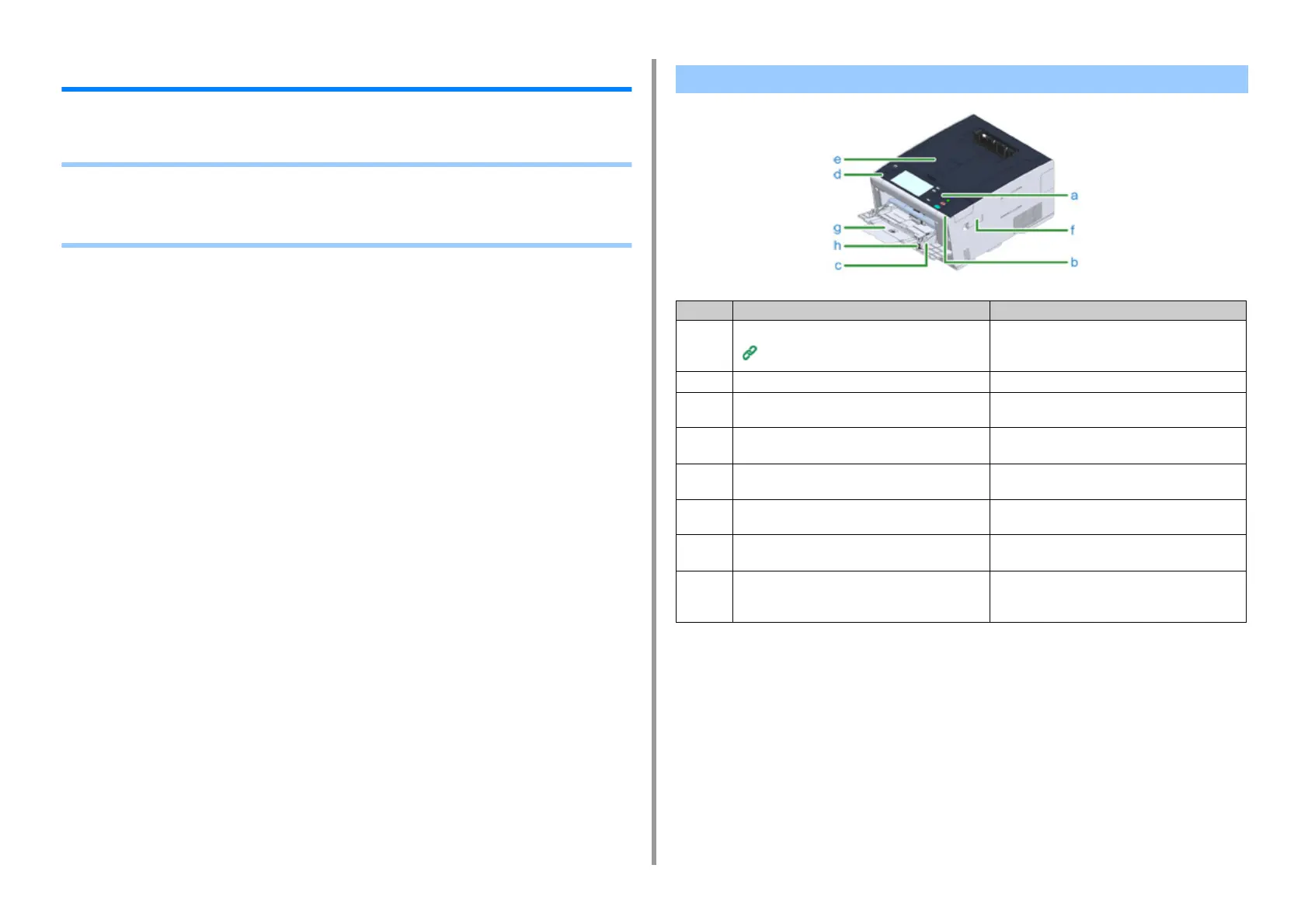

3. Basic Operations
Names of Components
The chapter describes the name of each component.
• Front View
• Rear View
• Inside of the machine
Front View
Symbol Name Description
a Operator panel
Basic Operations on the Operator Panel
This is the panel to operate the printer.
You can find touch panel and operation buttons on
the panel.
b USB port Port to insert a USB memory.
c MP tray (Multipurpose tray) Envelopes and various sizes and thicknesses of
paper can be printed.
d Open button Press this button to unlock when opening the output
tray.
e Output tray (Top cover) Printouts are stocked here.
Open when changing consumables.
f Wireless LAN module cover Cover for installation part of the wireless LAN
module.
g Paper supporter Draw this supporter when setting long size paper in
the MP tray.
h Envelope lever Use this when printing on envelopes. For
instructions, refer to "Printing on Envelopes
(Advanced Manual)".
