C8800 User’s Guide
138

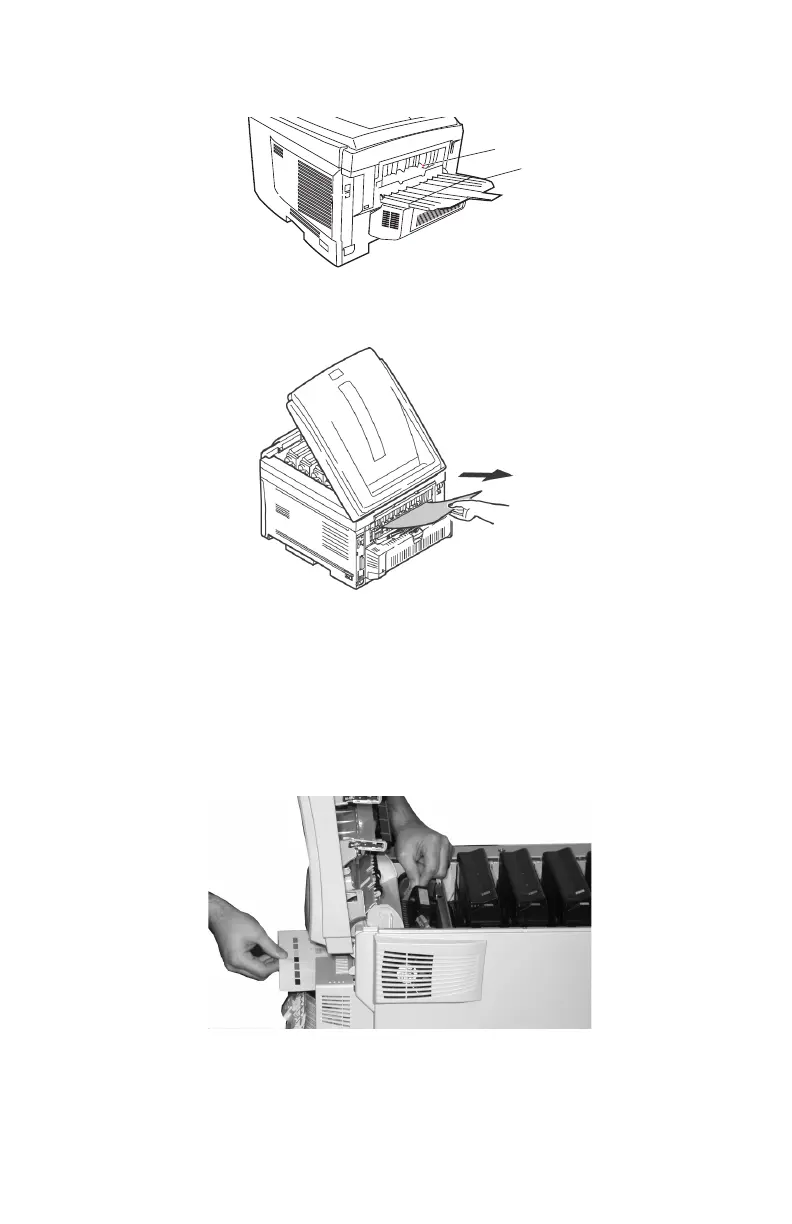

3. Lower the rear exit tray (5).
Jams 2.eps
4. Pull out the jammed sheet.
F12_07.eps
WARNING! The fuser may be HOT!
If the sheet is difficult to remove, it is partially jammed in
the fuser. To get it out, reach around the top cover and
press down on the fuser pressure release lever before
pulling the sheet out. Then let go of the fuser pressure
release lever.
5. Close the rear exit.
6. Close the top cover.
6
5
To Next Page
