2.3.3 FUSING LAMP AND HOT ROLLER
Preparation:
Remove the paper exit assembly (* 2.3.2).
Fusing Lamp

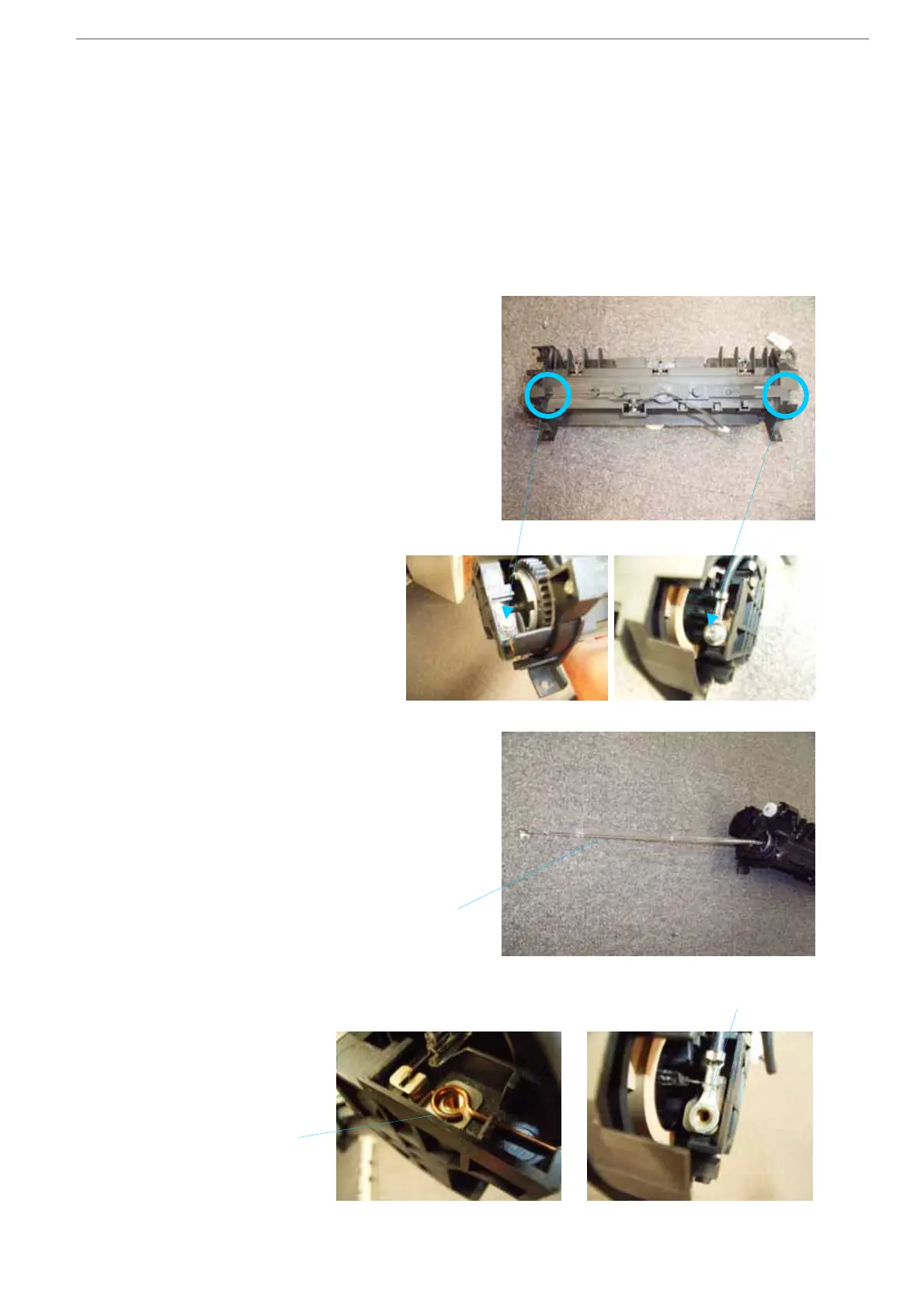

[A]: Fusing lamp (2 screws)
NOTE: Do not touch the surface of the
fusing lamp with bare hands.
Reassembly
When reassembling, be careful to set the
fusing lamp on the frame first, then set the terminals [B] and [C].
G182R015.JPG G182R014.JPG
G182R017.JPG G182R016.JPG
[B]
[A]
[C]
