2.4 PAPER FEED
2.4.1 PAPER FEED ROLLER REMOVAL
Preparation:
1) Remove the upper unit. (See Upper Unit Removal.)

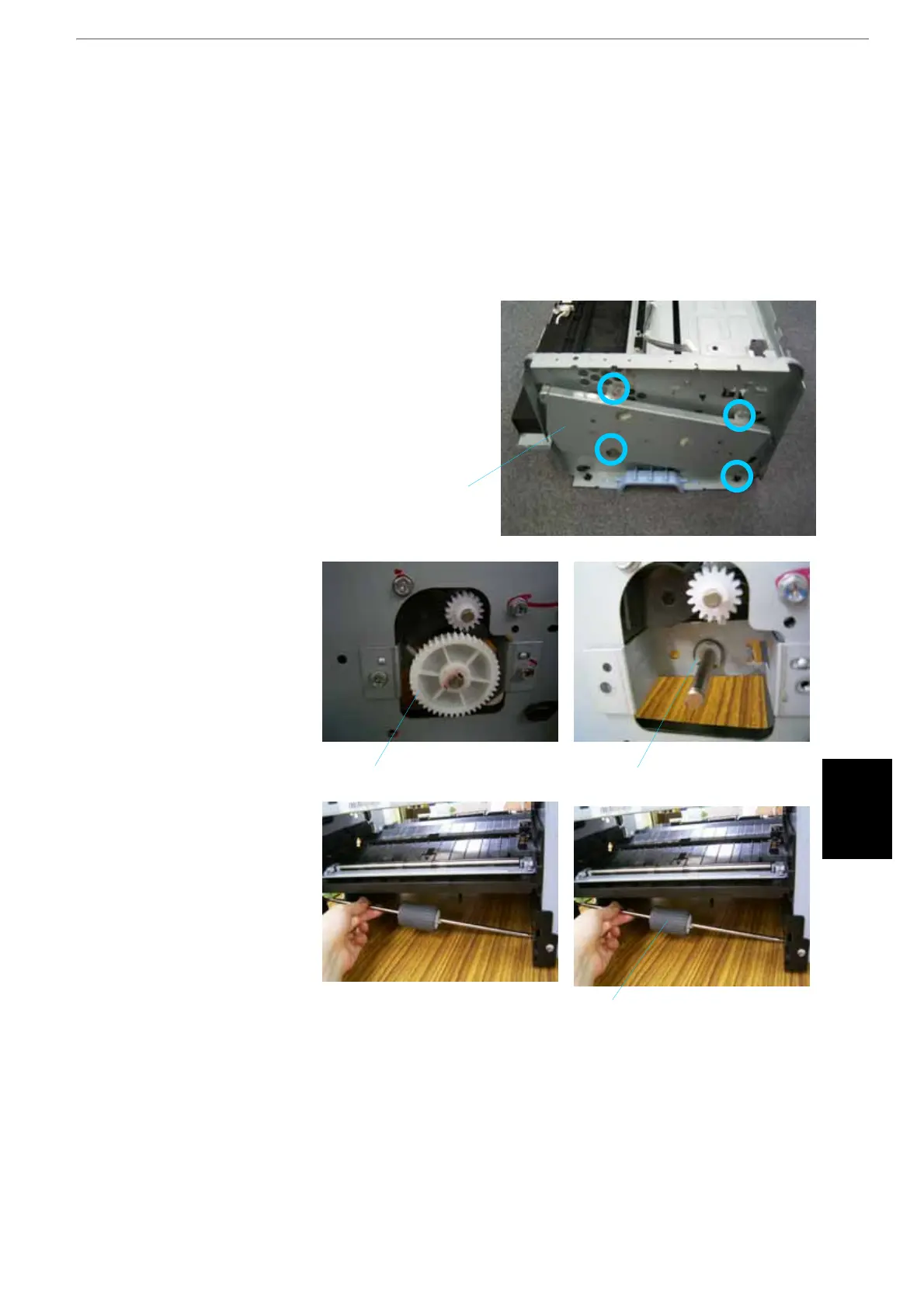

[A]: Drive assembly (4 screws)
[B]: Electromagnetic
clutch assembly (1
clip)
[C]: Paper feed roller
(2 clips, one at
the left side [D],
and one at the
right side)
G182R027.JPG G182R028.JPG
G182R030.JPG G182R030.JPG
[A]
[B] [D]
[C]
