Maintenance > 119

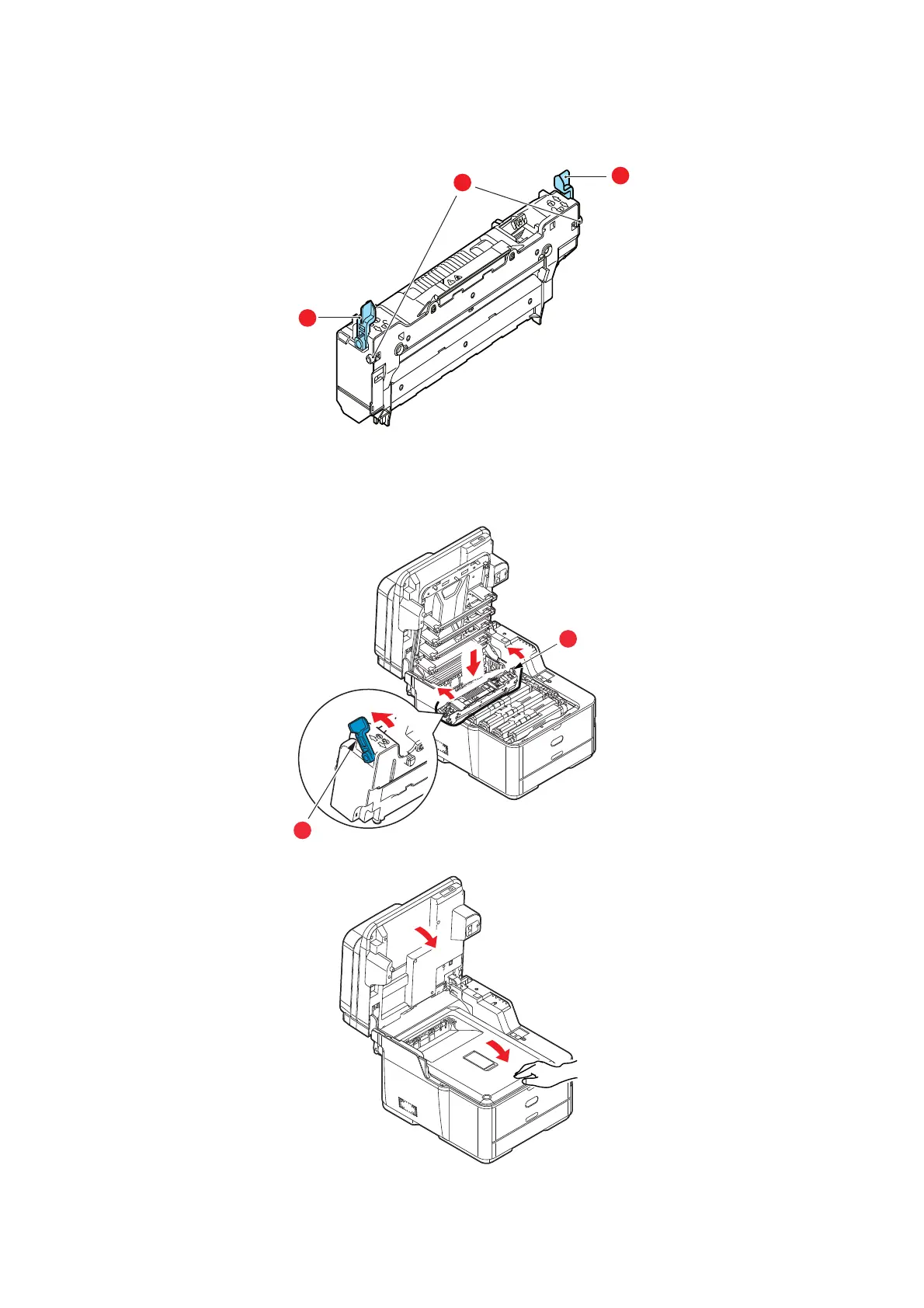

7. Holding the new fuser by its handle, make sure that it is the correct way round. The
retaining levers (b) should be fully upright, and the two locating lugs (c) should be
towards you.
8. Lower the fuser into the printer, locating the two lugs (c) into their slots in the sides
of the printer cavity.
9. Push the two retaining levers (b) towards the rear of the printer to lock the fuser in
place.
10. Close the output tray and press down firmly so that the cover latches closed.
11. Gently lower the scanner.
b
b
