Maintenance > 122
...
THE
PAPER
PATH
IN
THE
ADF
If marks are found on an image which has been read by the ADF, or the ADF does not feed
documents smoothly, follow the cleaning procedure below.
1. Switch the MFP OFF. Refer to “Turning off your machine” on page 19 for details.
2. Open the ADF top cover.

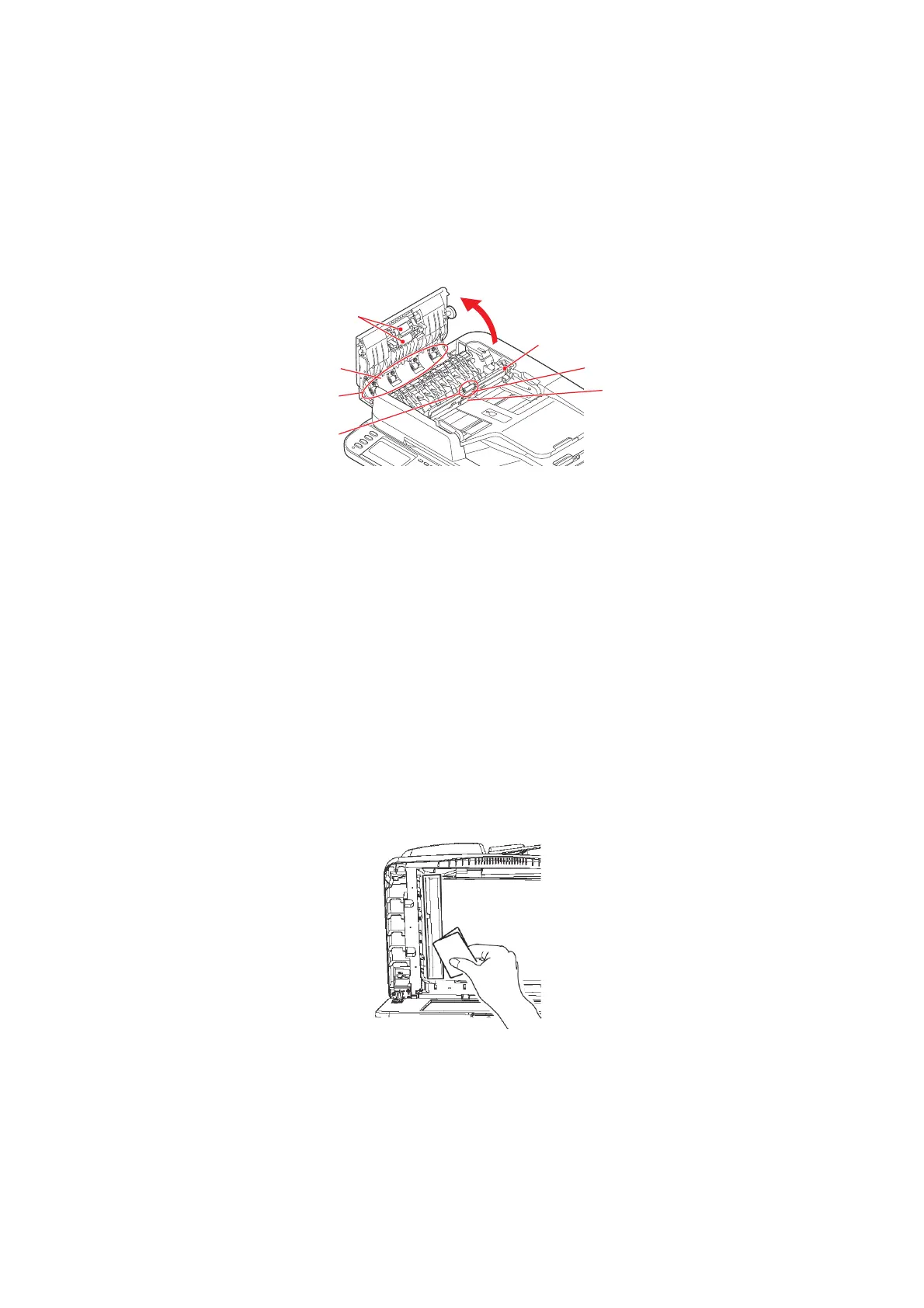

3. Moisten a soft, clean, lint-free cloth and wipe the feed rollers (1) by moving the cloth
from side to side.
4. Rotate the rollers forward with your finger and repeat step 3 until the rollers are
clean.
5. Carefully lift inner cover (2).
6. Wipe rollers (3 & 4) by moving the cloth from side to side.
7. Rotate the rollers forward with your finger and repeat step 6 until the rollers are
clean.
8. Wipe the guide (5) from side to side.
9. Wipe the rubber pad (6) and rubber sheet (7) from side to side.
10. Return the inner cover to its original position.
11. Close the ADF top cover.
...
THE
UNDERSIDE
OF
THE
ADF
1. Open the document cover.
2. Moisten a soft, clean, lint free cloth and remove any marks, as shown.
3. Close the document cover.
