22 Microline 490/491 User’s Guide
Print Quality
Important!
Front panel settings for print quality and character pitch are
normally overridden by software commands.

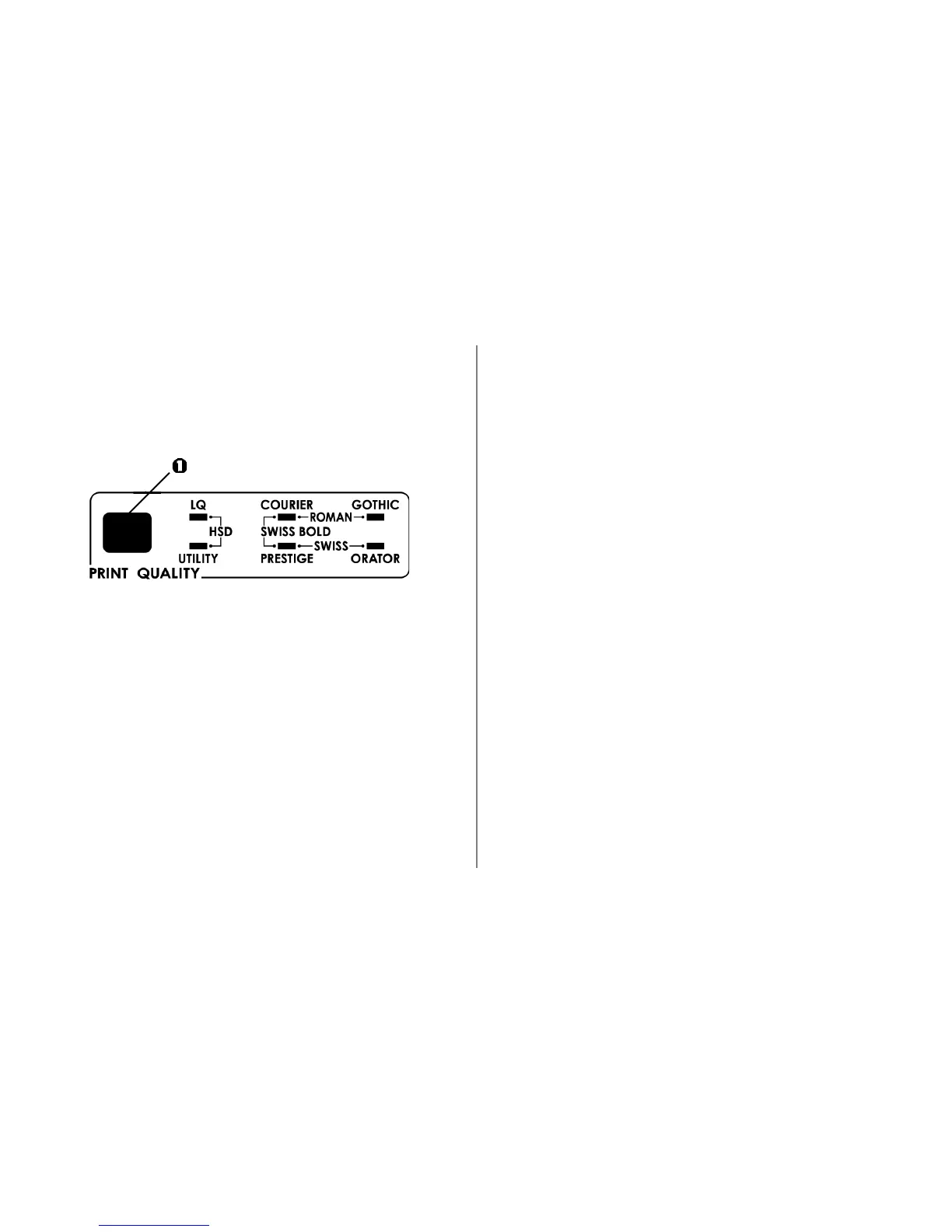

Press PRINT QUALITY (1) to select:
LQ: Letter Quality
[LQ light on]
• Highest quality, slowest speed
• Choice of 7 typefaces
Utility
[UTILITY light on]
• Medium quality, medium speed
• Gothic typeface only
HSD: High Speed Draft
[LQ and UTILITY lights both on]
• Lowest quality, highest speed
• Gothic typeface only
