60 Microline 320/321 Turbo/n
|

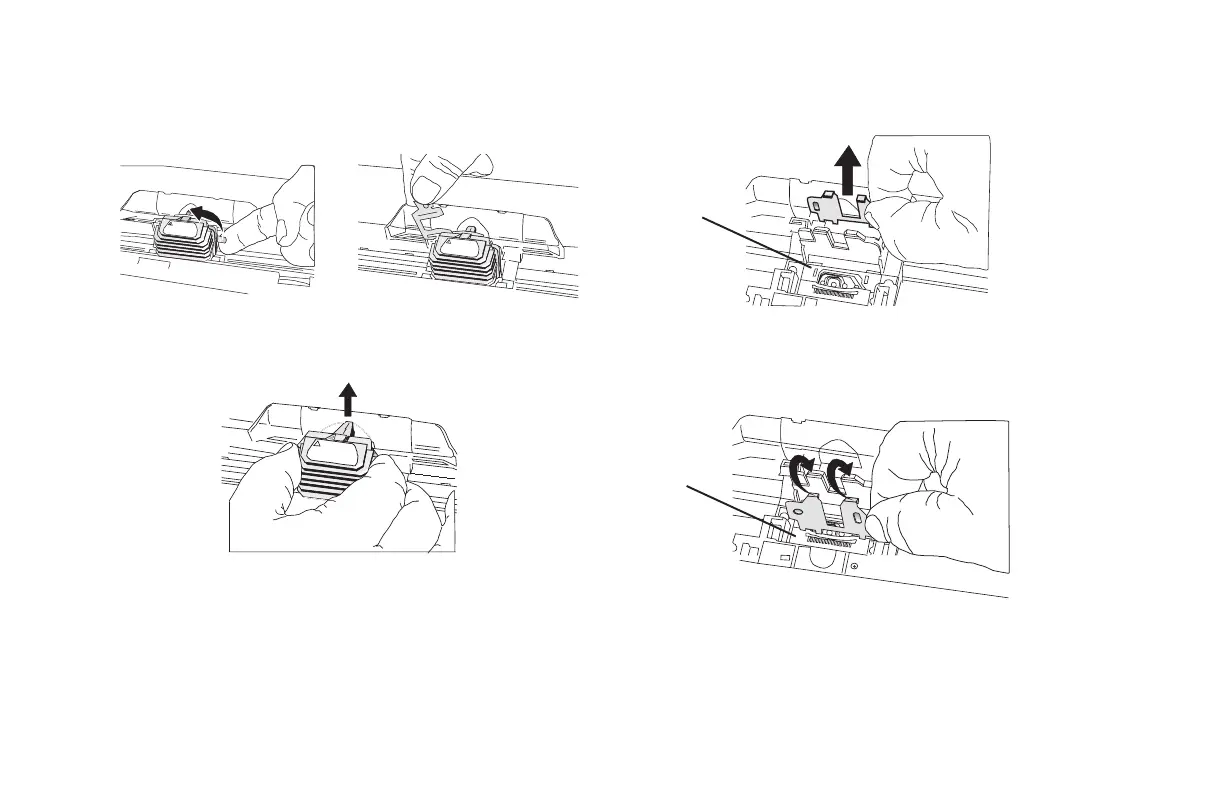

5 Swing up the printhead clamp, then remove it by
pushing forward (toward the platen) and to the left.
32T-hg01.eps and 32T-hg02.eps
CAUTION
ATTENTION
VORSICHT
HOT
CHAUD
HEISS
55091086
CAUTION
ATTENTION
VORSICHT
HOT
CHAUD
HEISS
55091086
6 Remove the printhead.
32T-hg03.eps
CAUTION
ATTENTION
VORSICHT
HOT
CHAUD
HEISS
T
55091086
7 Lift the printhead plate off the carriage assembly (1).
32T-hg04.eps
8 Turn the printhead plate around and reinsert it on the
other side of the carriage assembly (1).
32T-hg05.eps
