User’s Guide: English 85

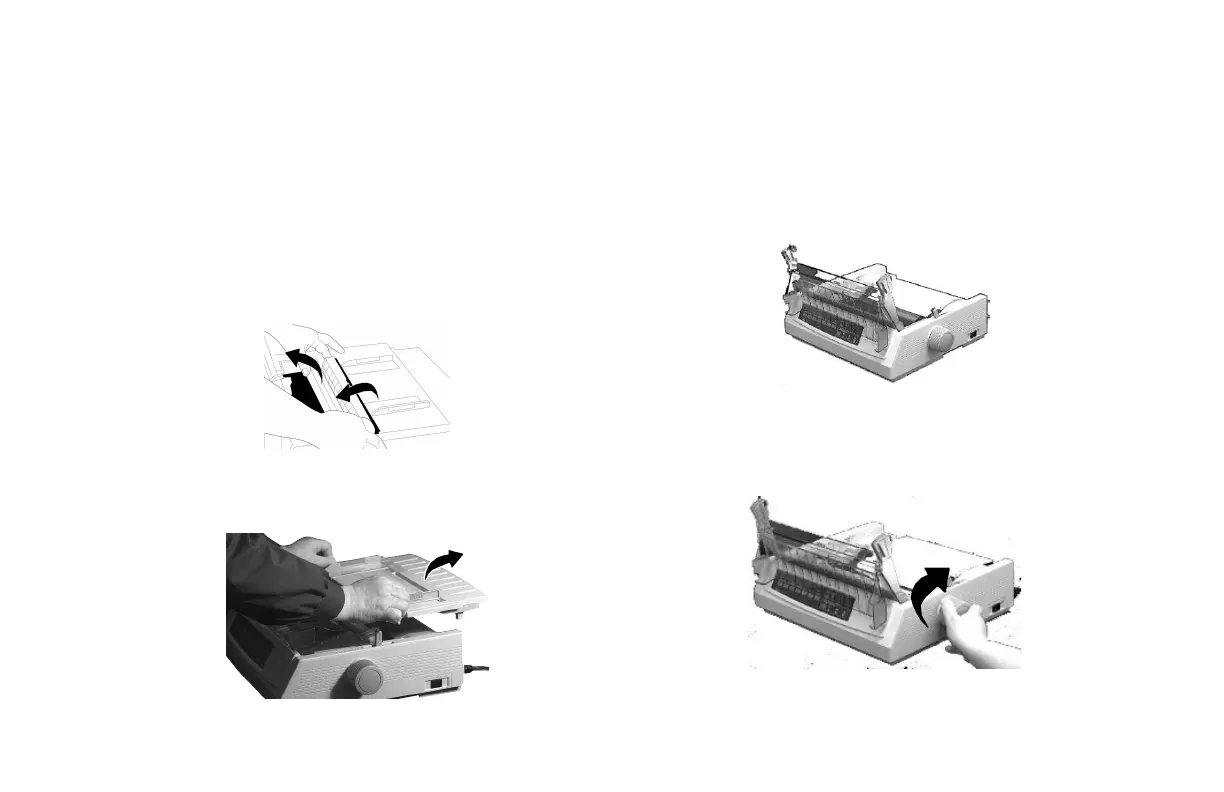

Rear-Feed, Repeating Paper Jams
If the paper keeps jamming, you probably have bits of paper
stuck in the paper path.
1 Turn off the printer. Then, use the platen knob to back the
paper out of the printer.
2 Open the access cover. Remove the pull up roller
assembly. Remove any torn pieces of paper.
32T-04up.eps
3 Grasp the tabs and lift off the paper separator.
32T-23A.eps
4 Fold some continuous-form paper over three times to
make a page four sheets thick. Then, load it on the
tractors and close the covers.
32T-41R.eps
5 Use the platen knob to draw the quadruple-thick page
around the platen. This clears any jammed bits of paper.
32T-42R.eps
To Next Page
