Olimpia splendid B0873 - Page 27

Bi2 Air AR
CVSV
E
+V10-
H2O
H2O
CFG
N
230V
50Hz
F
Y1
S1
*
J1
M1
LOCK
FANCOIL
LED
SW1
MOUNT
SEL1
SEL2
A
ENGLISH
EN - 7

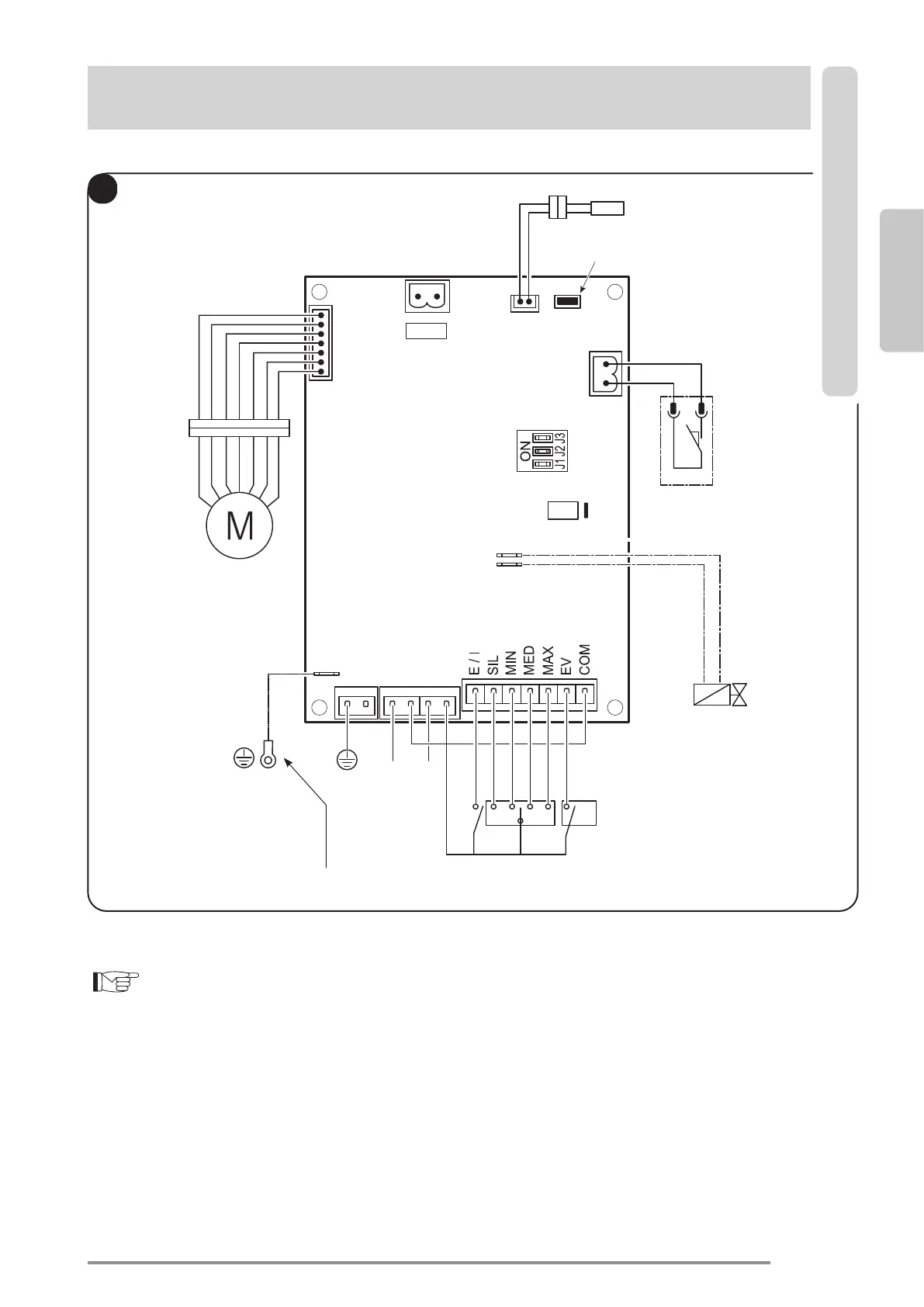

1 - MANAGEMENT OF THE FAN COIL WITH DC MOTOR THROUGH 4-SPEED
THERMOSTAT (J1 - OPEN)
To the ground connection of the fan coil
Open
For the key of the terminal box and the alarms: see page 12
WITHOUT FLAP
