J1
+V10-
H2O
CFG
Y1
M1
LOCK
FANCOIL
LED
0-10V
Fan
Speed
Valve
MIN
MAX
2,51,8
12
Vdc
ON
2,00,8
Vdc
H2O
*
N
230V
50Hz
F
SW1
MOUNT
SEL1
SEL2
* *
B
ENGLISH
EN - 8

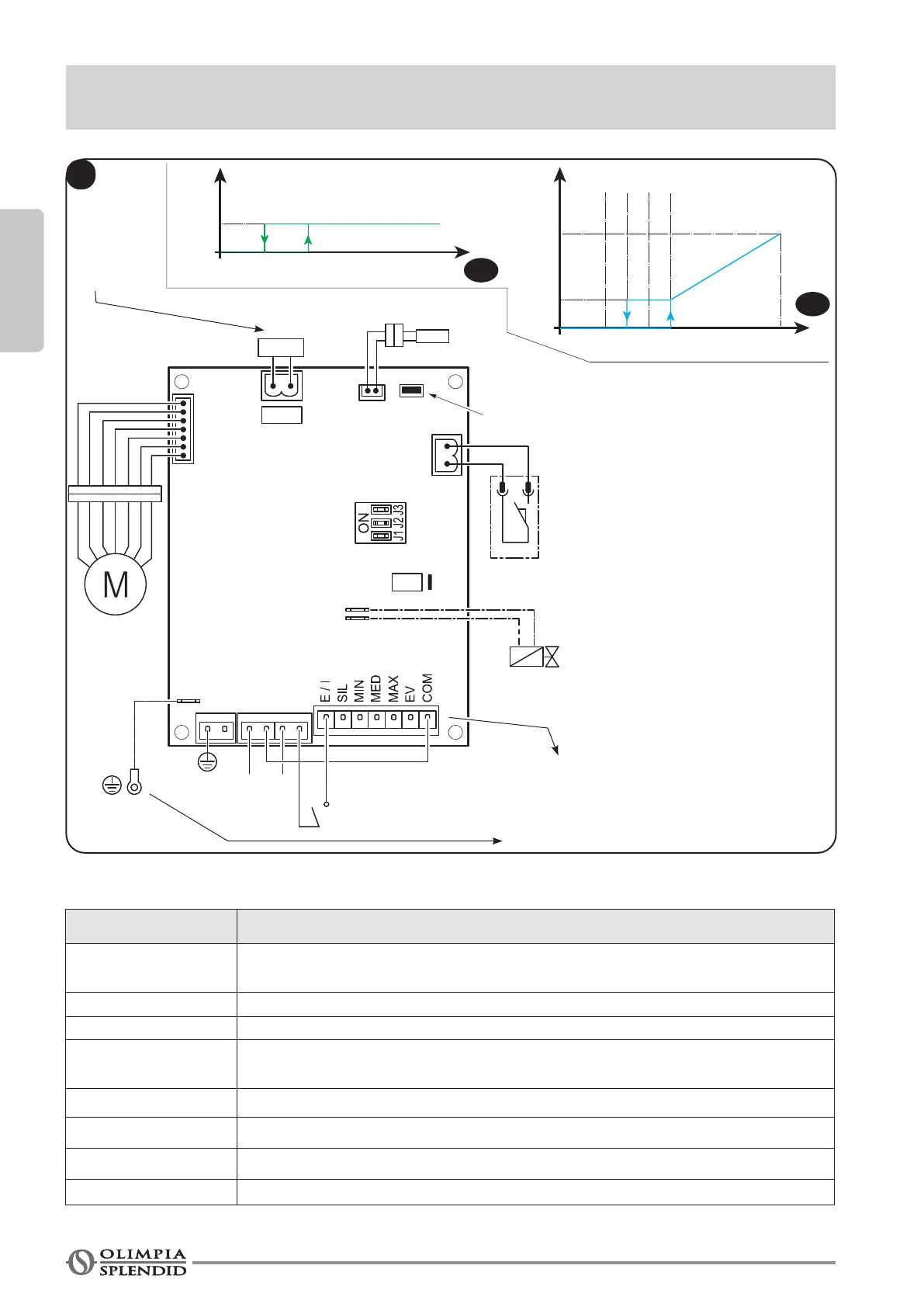

Tab_1 (diagram “B”)
Terminal box Connections
0-10 V
Thermostat 0÷10 V
(Only use double-insulation connections)
M1
DC motor
J1
Jumper closed to select mode “0÷10 V”
S1
Intake grille safety microswitch
(to be connected only on some models, removing the bridge)
N - F
Board supply 230V - 50Hz
Y1
Solenoid valve 230V - 50Hz, 1A
Led
Mode/status indication
SW1
Machine conguration selector
Do not use in conguration 0-10V
SIL, MIN, MED, MAX, EV
To the ground connection of the fan coil
2 - MANAGEMENT OF THE FAN COIL WITH DC MOTOR THROUGH 0-10Vdc
THERMOSTAT (J1 - CLOSED)
Closed
Only use
double-in-
sulation
connections
