60
ENGLISH
EN - 10

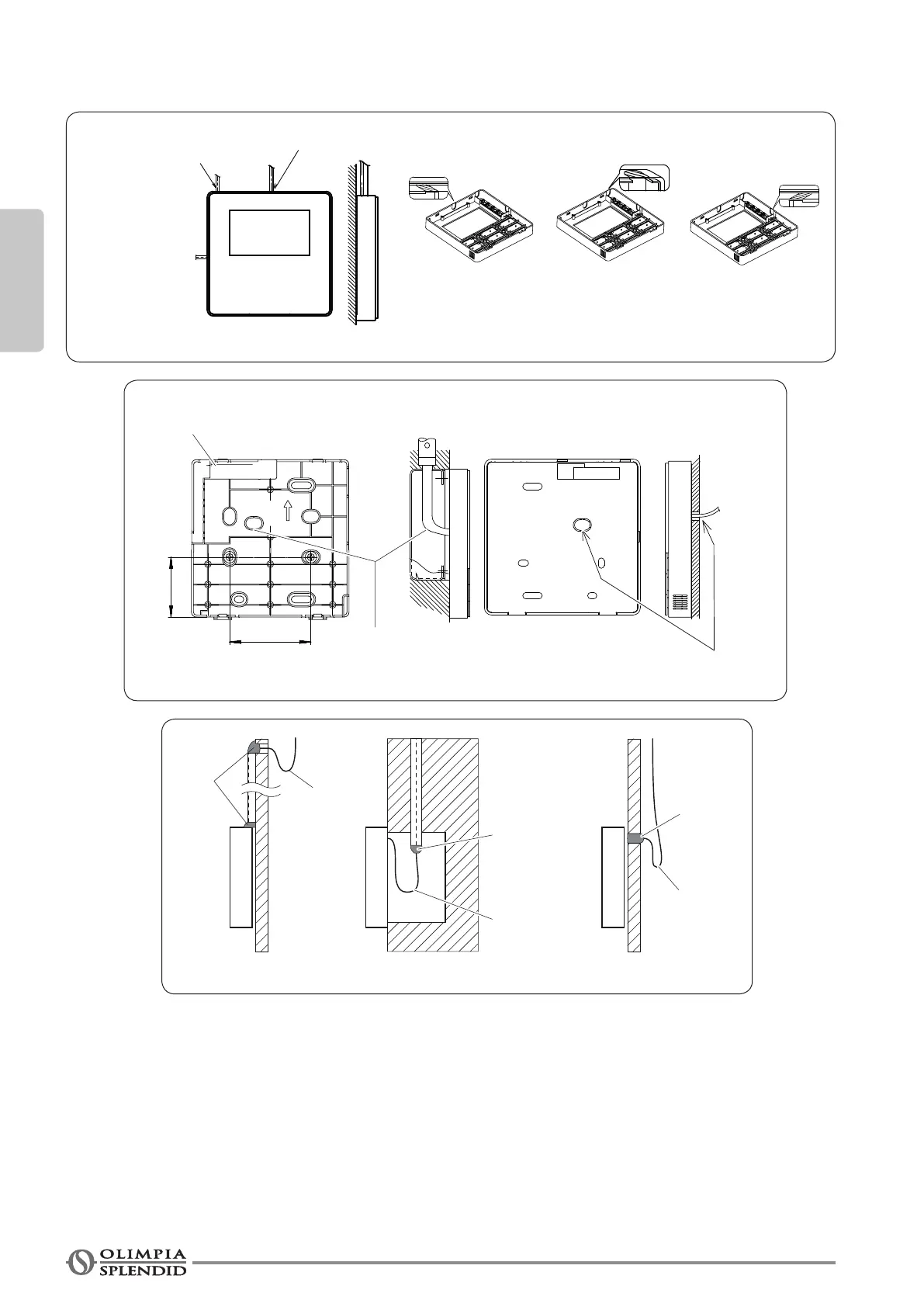

1.5 - WIRING
IMPORTANT
• Prevent water entering the remote control, use sheaths and mastic sealant during electric
connections(g.8)
• During the connections, reserve a longer length of connection cable to promote the
connection operations and any maintenance.
Cutting point for
outlet of the upper
side cable
Electric box wiring
Cutting point for
outlet of the top left
cable
Cutting point for
outlet of the cable
on the left central
side
Upper left cable
outlet
electric box
Mastic
sealant
Mastic sealant
Mastic
sealant
Sheath
Sheath
Sheath
Hole for wall and hole for
wiring
Diameter: ø8÷10 mm
wiring
hole
A. Wiring, three outlet positions
B. Shielded wiring
Upper cable
outlet
Left lateral cable
outlet
Fig. 6
Fig. 7
Fig. 8
