DOLCECLIMA BREZZA
21
24
23
25
25
26
26
27
27
27a
28
29
34
31
33
30
A
EN - 11
ENGLISH
properly maintained and that any associated electrical components are sealed to prevent
ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered
refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and
the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and
especially not in cylinders. If compressors or compressor oils are to be removed, ensure
that they have been evacuated to an acceptable level to make certain that ammable refrig-
erant does not remain within the lubricant. The evacuation process shall be carried out prior
to returning the compressor to the suppliers. Only electric heating to the compressor body
shall be employed to accelerate this process. When oil is drained from a system, it shall be
carried out safely.
1 - DESCRIPTION OF THE APPLIANCE
1.1 - LIST OF COMPONENTS (Fig.5)
The appliance is packaged singularly in a cardboard packaging.
The packaging can be transported by hand by two operators or loaded on a forklift.
Store the packaging singularly; do not stack it.
1. Flexible hose for air expulsion
2. Terminal for exible hose
machine side
3. Remote control
4. SLIDER for installation on
sliding / roller window
5. Terminal for slider / window
installation
6. Manual
7. Condensation discharge pipe

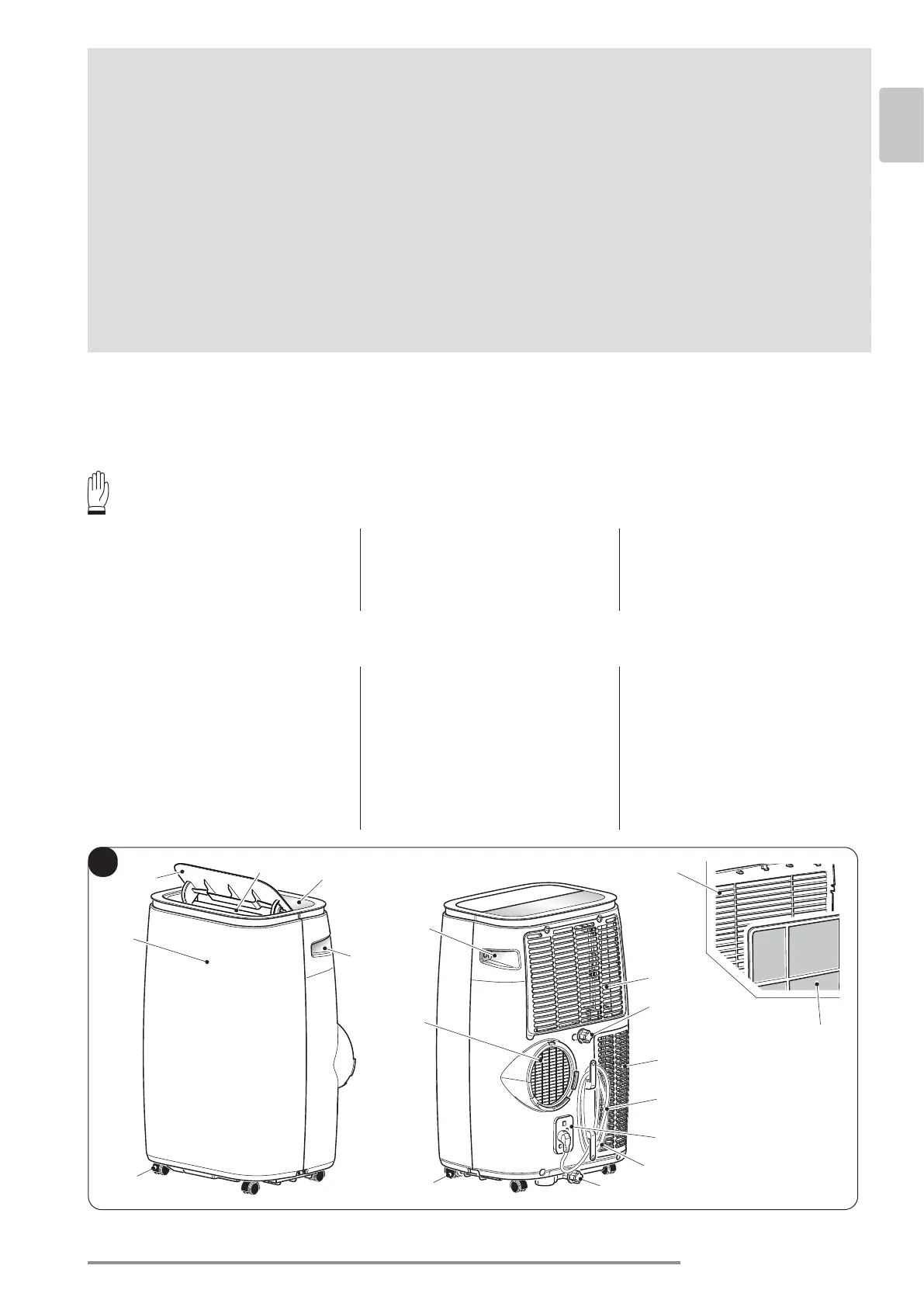

1.2 - IDENTIFICATION OF THE MAIN COMPONENTS (Fig.A)
21. Control panel
22. Air outlet grille
23. Flap
24. IR remote control receiver
25. Wheels
26. Handel
27. Air lter grille
27a. Air lter
28. Condensation drain cap (for
use as
dehumidier)
29. Air inlet grille
30. Air outlet grille
31. Hole for plug housing
32. Cap for condensation emp-
tying (in case of transport,
maintenance or excessive
accumulation of water)
33. Cable winder
34. Power supply cable
35. Condensation drain cap
(only for version with heat
pump)
