1-1-4
1-1-2 Parts names
(1) Main body

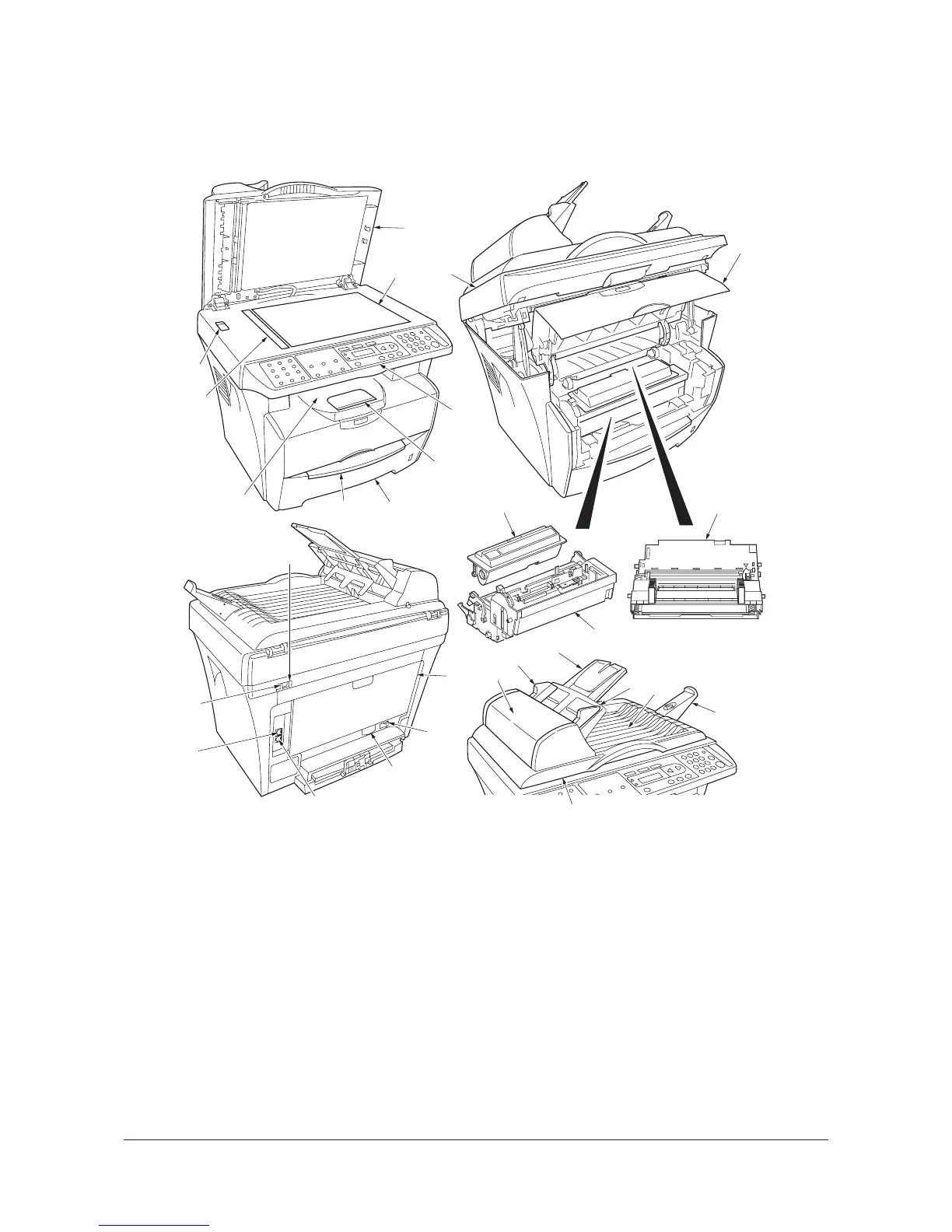

Figure 1-1-1
1. Scanner unit
2. Front cover
3. Paper cassette
4. Manual feed tray
5. Toner container
6. Developer unit
7. Drum unit
8. Shipping lock
9. Original size indicator plate
10. Operation panel
11. Original cover
12. Platen
13. Output tray
14. Paper stopper
15. USB Interface connector
16. 5 V DC output (for print server)
17. Rear cover
18. Power switch
19. AC inlet
20. Telephone jack (d-Copia164MF only)
21. LINE jack (d-Copia164MF only)
22. Original table
23. Original insert guides
24. Left cover
25. Ejection extension
26. Original eject table
27. Document processor (DP)
Service Manual Y107330-8
To Next Page
