Olivetti d-Copia 163MF User Manual

1-1-6

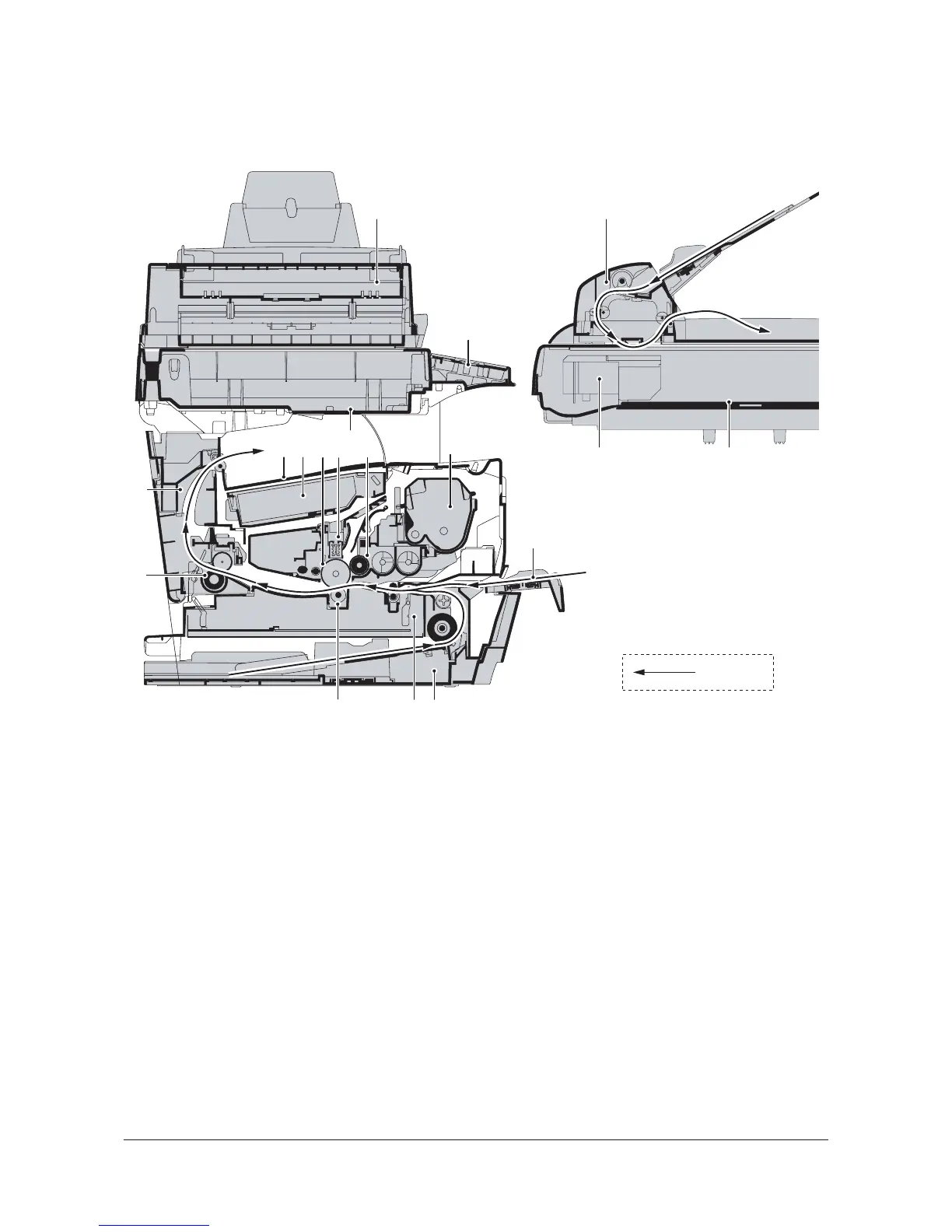

1-1-3 Machine cross section
Figure 1-1-3 Machine cross section
















Paper path
1. Paper cassette
2. Manual feed tray
3. Paper feeding/conveying
section
4. Toner container
5. Developer unit
6. Main charger unit
7. Drum unit
8. Laser scanner unit
9. Transfer section
10. Fuser unit
11. Paper exit section
12. Output tray
13. Operation unit
14. Scanner unit
15. Optical module unit
16. Document processor (DP)
Service Manual Y107330-8
