ASSEMBLY
10

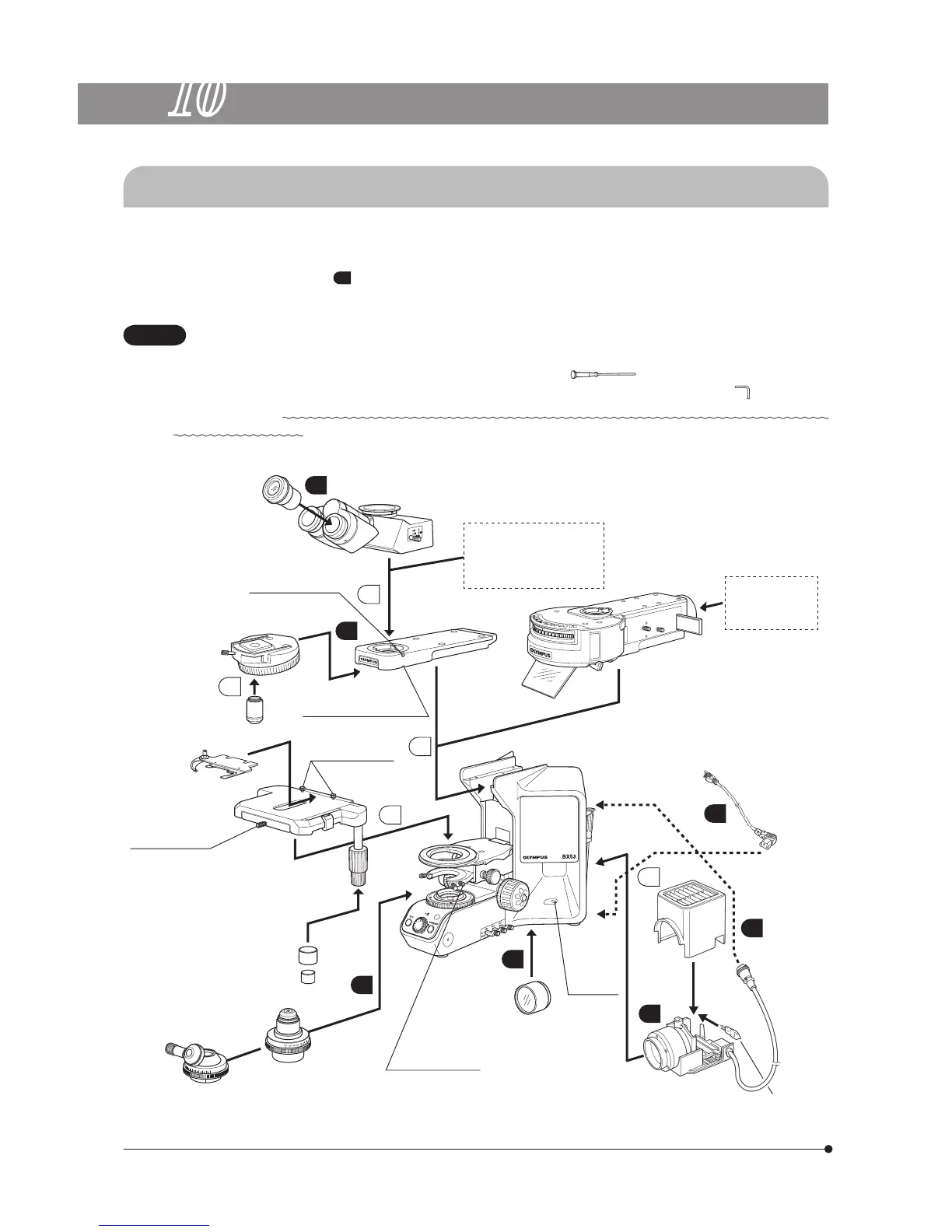

10-1 Assembly Diagram
The diagram below shows the sequence of assembly of the various modules. The numbers indicate the order of as-
sembly.
Assembly steps enclosed in
will be detailed on the subsequent pages.
The module numbers shown in the following diagram are merely the typical examples. For the modules with which the
module numbers are not given, please consult your Olympus representative or the catalogues.
When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching
any parts or touching glass surfaces.
}Most assembly operations are possible by using the Allen screwdriver (
) provided with the microscope.
However, the assembly of the reflected light illuminator requires the use of the provided Allen wrench (
) for clamping
the internal screws (to ensure the performance, we recommend that you have your Olympus representative assemble
or remove this module).
Eyepieces
WHN10X (FN 22)
WHN10X-H (FN 22), etc.
Slide holder
U-HLDT-4
U-HRDT-4, etc.
Revolving nosepiece
U-5RE-2
U-D6RE
U-P6RE
U-D7RES, etc.
Observation tube
clamping screw
UIS2 series
objective
Stage clamping
knob
Stage
U-SVRB-4
U-SVLB-4, etc.
Stage feed knob
rubber caps
U-SHG
U-SHGT
Slide holder
clamping knobs
Revolving nosepiece
clamping screw
Condenser
U-LC
U-AC2
U-SC3
U-UCD8 (T2), etc.
Microscope
frame
BX53F
Condenser
clamping knob
Observation tube
U-BI30-2
U-TTLBI
U-TR30-2, etc.
Intermediate attachment
U-EPA2
U-DO3
U-TRU, etc.
Arm
BX3-ARM
Vertical illuminator
BX3-URA
BX3-RFAS, BX3-RFAA, etc.
Reflected light
mercury/xenon
lamp housing
Power cord
100 W halogen
lamp housing
U-LH100-3
100 W halogen bulb
12V10WHAL-L
Lamp
socket
clamping
screw
Auxiliary lens
for U-LC
CAUTION
