2

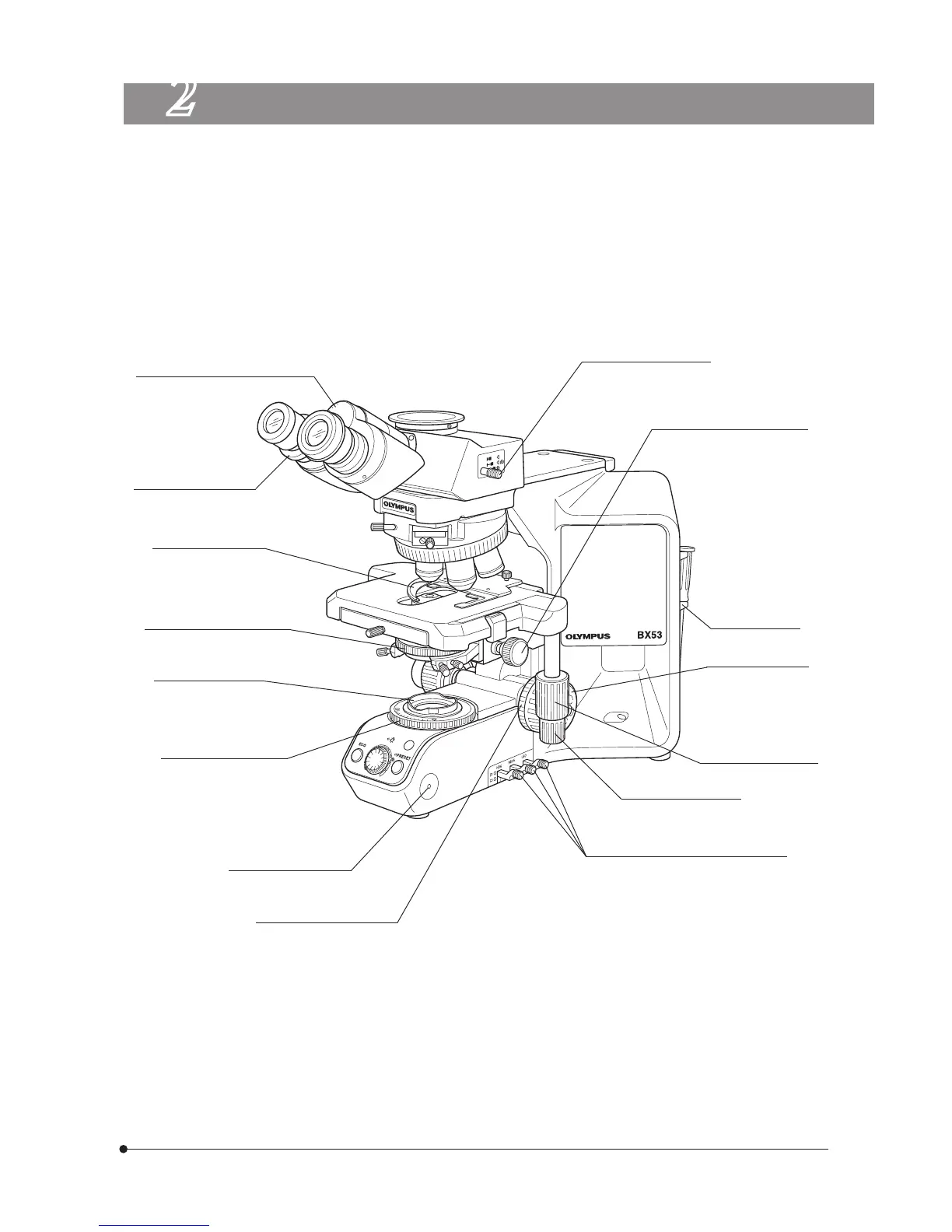

CONTROLS
} If you have not yet assembled the microscope, read section 10, “ASSEMBLY” (pages 34 to 37).
Interpupillary distance adjustment
scale (Page 11)
* The U-SHG (thin type) and U-SHGT (thick type) stage feed
knob rubber caps can be attached optionally.
Diopter adjustment ring
(Page 11)
Slide holder (Page 19)
Aperture iris diaphragm ring
(Page 12)
Filter mount (Page 15)
Field iris diaphragm ring
(Page 12)
Light preset adjustment
screw (Page 13)
Coarse adjustment tension
adjustment ring (Page 18)
Light path selector knob
(Page 23)
Condenser height adjustment
knob (Page 12)
Allen screwdriver
holder
Y-axis knob* (Page 20)
X-axis knob* (Page 20)
Coarse adjustment
knob (Page 17)
Filter knobs (Page 15)
ND6, ND25 and LBD from the front to
the rear (In-out possible from the other
side)
