Disassembly and Reassembly ProcedureCLV-180
4-30
ISSUE1

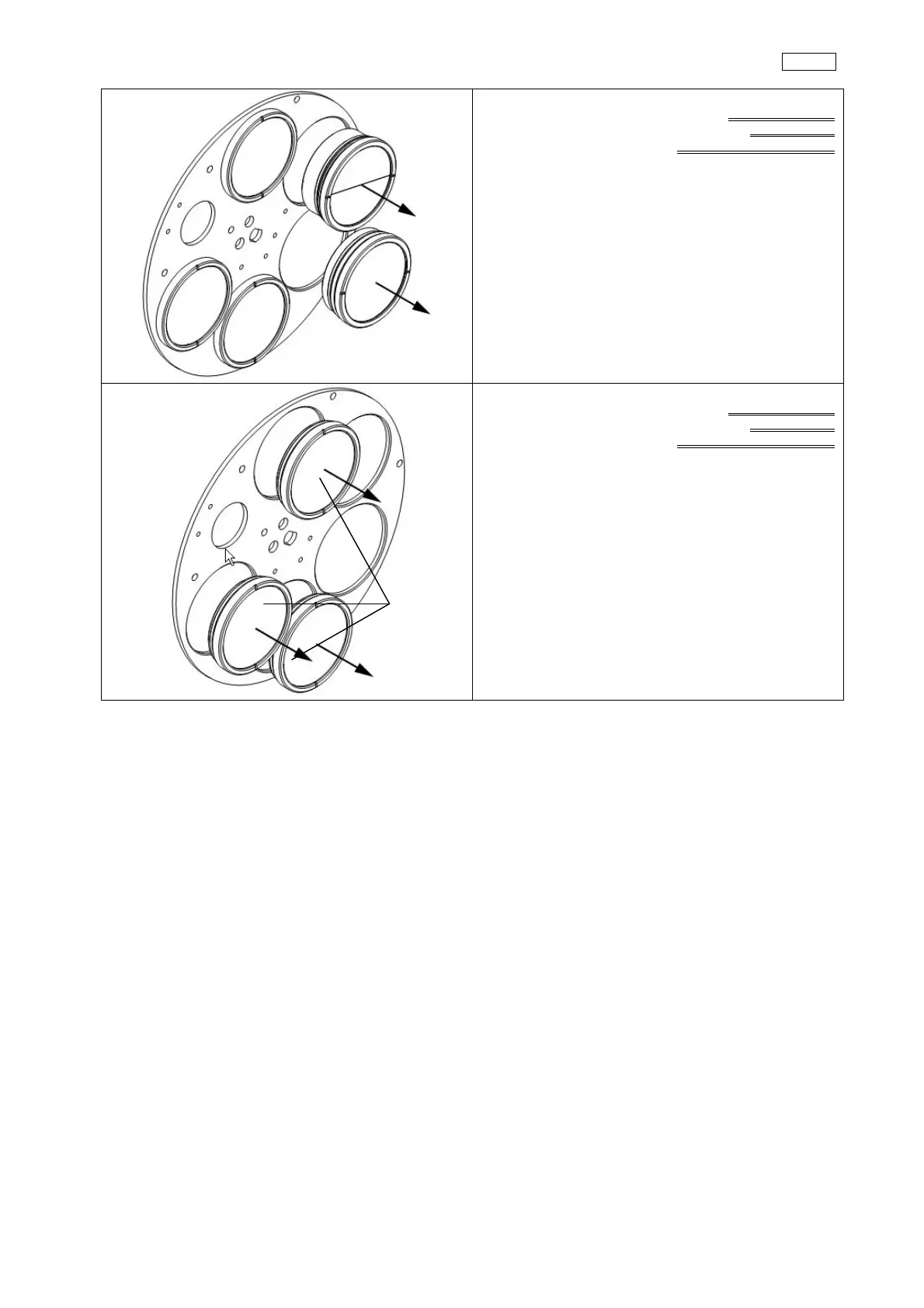

(9) Take off NORMAL FU and NBI FU
Filter retaining jig
Torque driver
Tightening torque 0.8 Nm
(10) Take off F FRAME DUMMY
Filter retaining jig
Torque driver
Tightening torque 0.8 Nm
NORMAL
] FU
NBI FU
F FRAME
DUMMY
