Disassembly and Reassembly ProcedureCLV-180
4-29
ISSUE1

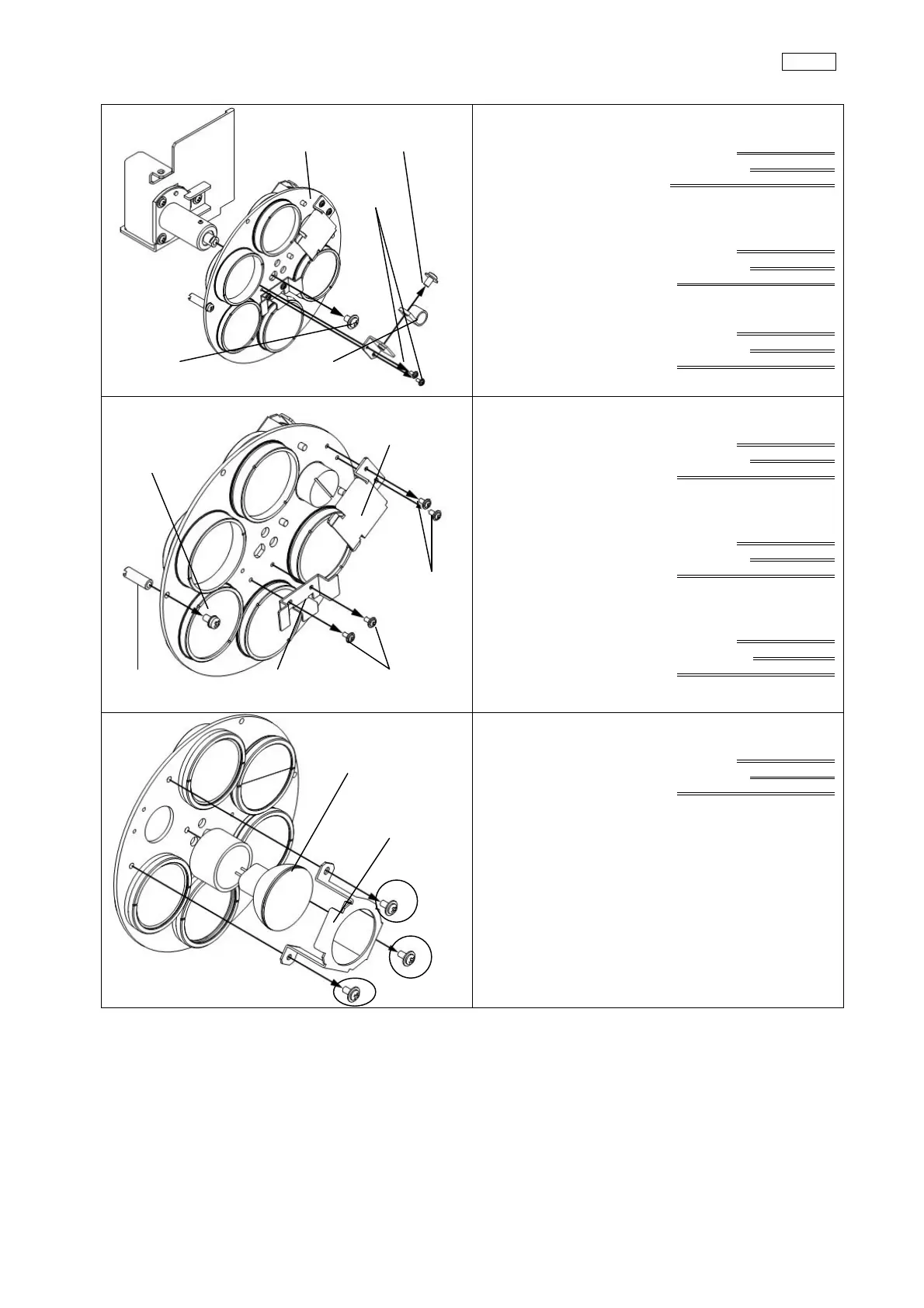

3-4-4 Turret U
(1) Take off 2 SCREWS (CCUK2x4SZ) and CRAMP
BASE ECO
Phillips bit (№1)
Torque driver
Tightening torque 0.15 Nm
(2) Take off 1 SCREW (CCUK4x6SZ) and BINDER
Phillips bit (№2)
Torque driver
Tightening torque 1.4 Nm
(3) Take off 1 SCREW (CCUK4x6SZ) and TURRET
Phillips bit (№2)
Torque driver
Tightening torque 1.4 Nm
(4) Take off 2 SCREWS (CCUK2x4SZ) and F FRAME
PLATE
Phillips bit (№1)
Torque driver
Tightening torque 1.5 Nm
(5) Take off 2 SCREWS (CCUK2x4SZ) and H LAMP
SHIELD
Phillips bit (№1)
Torque driver
Tightening torque 1.5 Nm
(6) Take off 1 SCREW (CUKSK3x6SZ) and T
STOPPER PIN
Phillips bit (№2)
Torque driver
Tightening torque 0.6 Nm
(7) Take off 3 SCREWS (CCUK3x6SZ) and H LAMP
RETAINER
Phillips bit (№2)
Torque driver
Tightening torque 0.6 Nm
(8) Take off HALOGEN LAMP and H LAMP SPRING
(1) CCUK2x4SZ
(2) CCUK4x6SZ
(3) CCUK4x6SZ
(6) CCUK3x6SZ
(4) CCUK2x4SZ
(5) CCUK2x4SZ
HALOGEN LAMP
H LAMP SPRING
STOPPER
PIN
H LAMP
SHIELD
F FRAME
PLATE
TURRET
BINDER
