10
CX21LED
Fig. 13
6

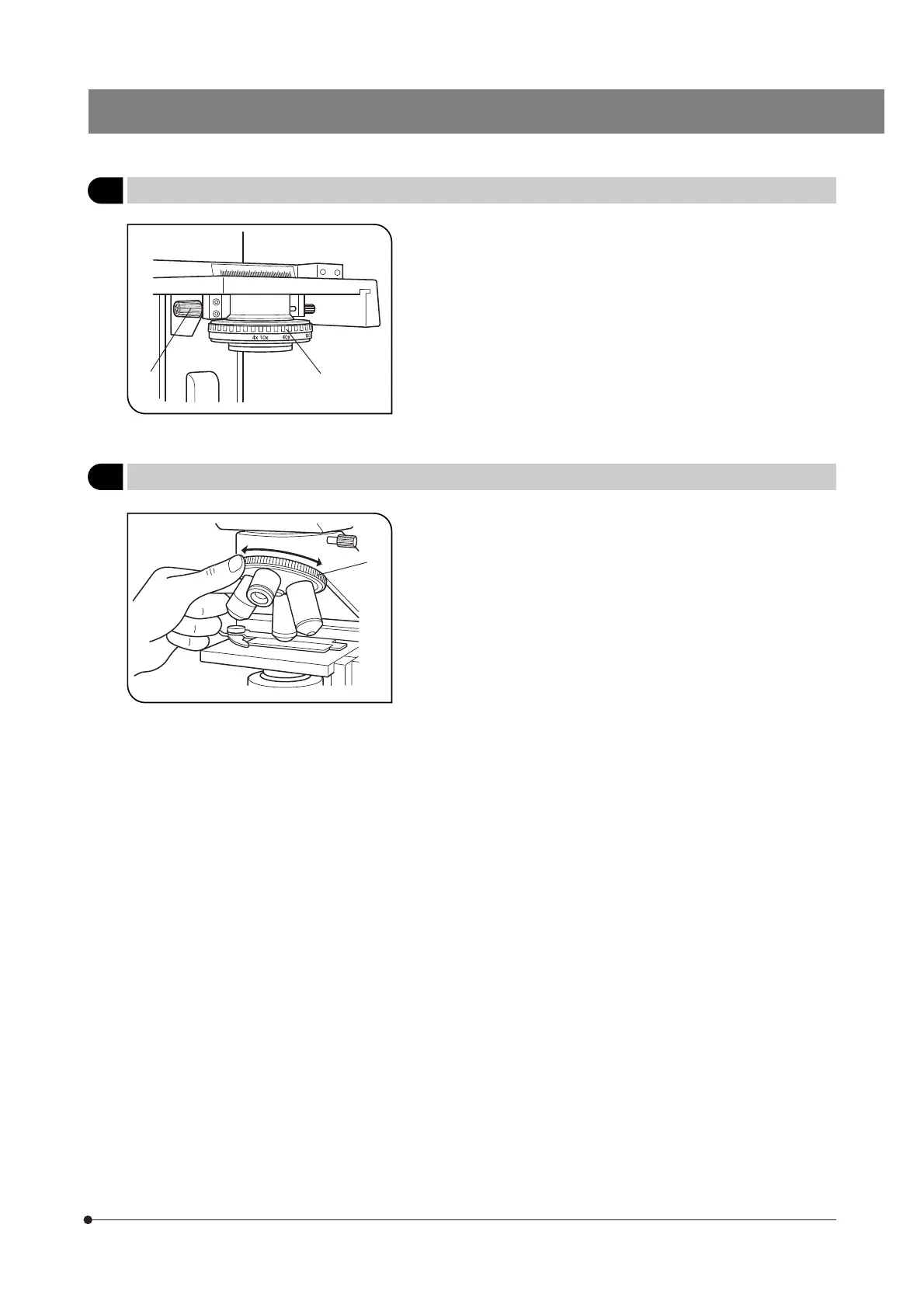

Adjusting the Condenser Position and Aperture Iris Diaphragm
(Fig. 13)
}The condenser is usually used in the highest position. If the entire ob-
served field of view is not bright enough, brightness may be improved by
lowering the condenser slightly.
1. Rotate the condenser height adjustment knob 1 to move the condenser
to the highest position.
2. The aperture iris diaphragm ring 2 has an objective magnification
scale (4X, 10X, 40X, 100X). Rotate the ring so that the magnification
of the objective in use faces frontward.
7
Switching the Objectives
(Fig. 14)
Fig. 14
Hold and rotate the revolving nosepiece 1 so that the objective to be
used come exactly above the specimen.
²
@
@
