Reflection Mirror CH20-MM

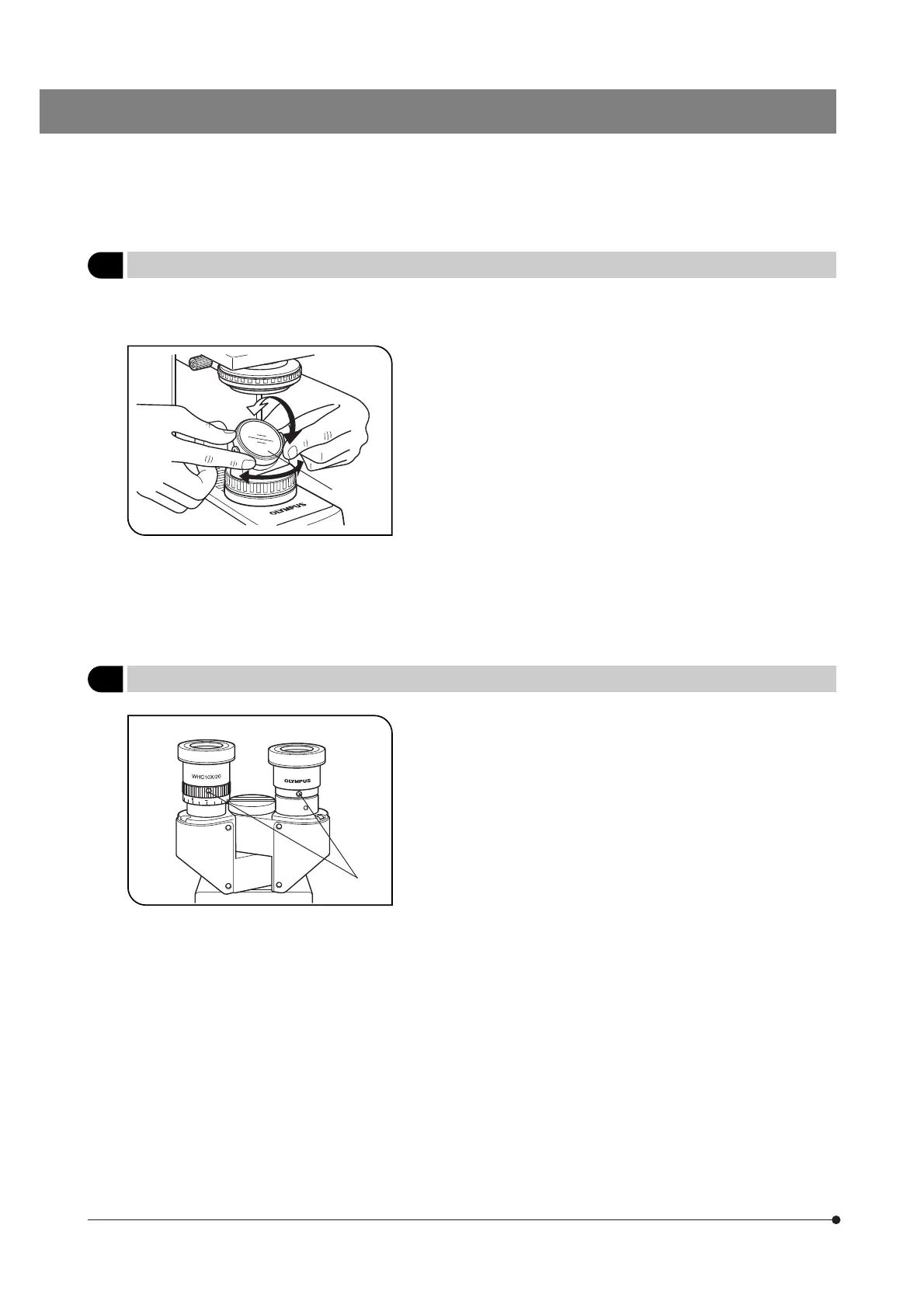

(Fig. 19)
}The reflection mirror is designed to be used in microscopic observation in a location where power supply is not available.
It makes it possible to use the natural light in place of the LED illumination.
Fig. 19
#The microscope should be installed near a window, in a place that
is not exposed to direct sunlight.
The eyepieces should be oriented toward the rear so that the reflec-
tion mirror receives the bright light. Loosen the observation tube
clamping knob and rotate the tube by 180°.
1. Fit the reflection mirror in the window lens of the microscope frame by
aligning the mounting tab.
2. The reflection mirror 1 should be pointed toward the bright area. While
observing the image through eyepieces, adjust the orientation of the
reflection mirror.
}A planar reflection mirror is used normally. However, if the image bright-
ness is uneven or the outside view is visible in the image, use a concave
reflection mirror.
@
Fig. 20
3
Eyepieces WHC15X/WHC15X-H
(Fig. 20)
}The standard 10X eyepieces are clamped using screws.
1. Using a small flat-blade screwdriver, loosen the clamping screw 1 of a
10X eyepiece and remove it.
2. Insert the WHC15X or WHC15X-H into the eyepiece sleeve and tighten
the clamping screw 1.
@
