Olympus CX21LED - Optional Accessories - Continued; Eyepiece Micrometer Usage Guide

20
CX21LED
}The eyepiece micrometer can be inserted in a standard 10X eyepiece
as well as the WHC15X and WHC15X-H.
However, unless the WHC15X-H is used, helicoid adjustment cannot be
performed, so those with poor eyesight will have trouble in bringing the
micrometer into focus.
· Get a micrometer with diameter of 19 mm and thickness of 1 mm.
· Remove the micrometer sleeve ² and fit the micrometer @ into the
eyepiece with the indication side facing down as shown in Fig. 21.
Replace the micrometer sleeve to use the micrometer.
4
Using the eyepiece micrometer

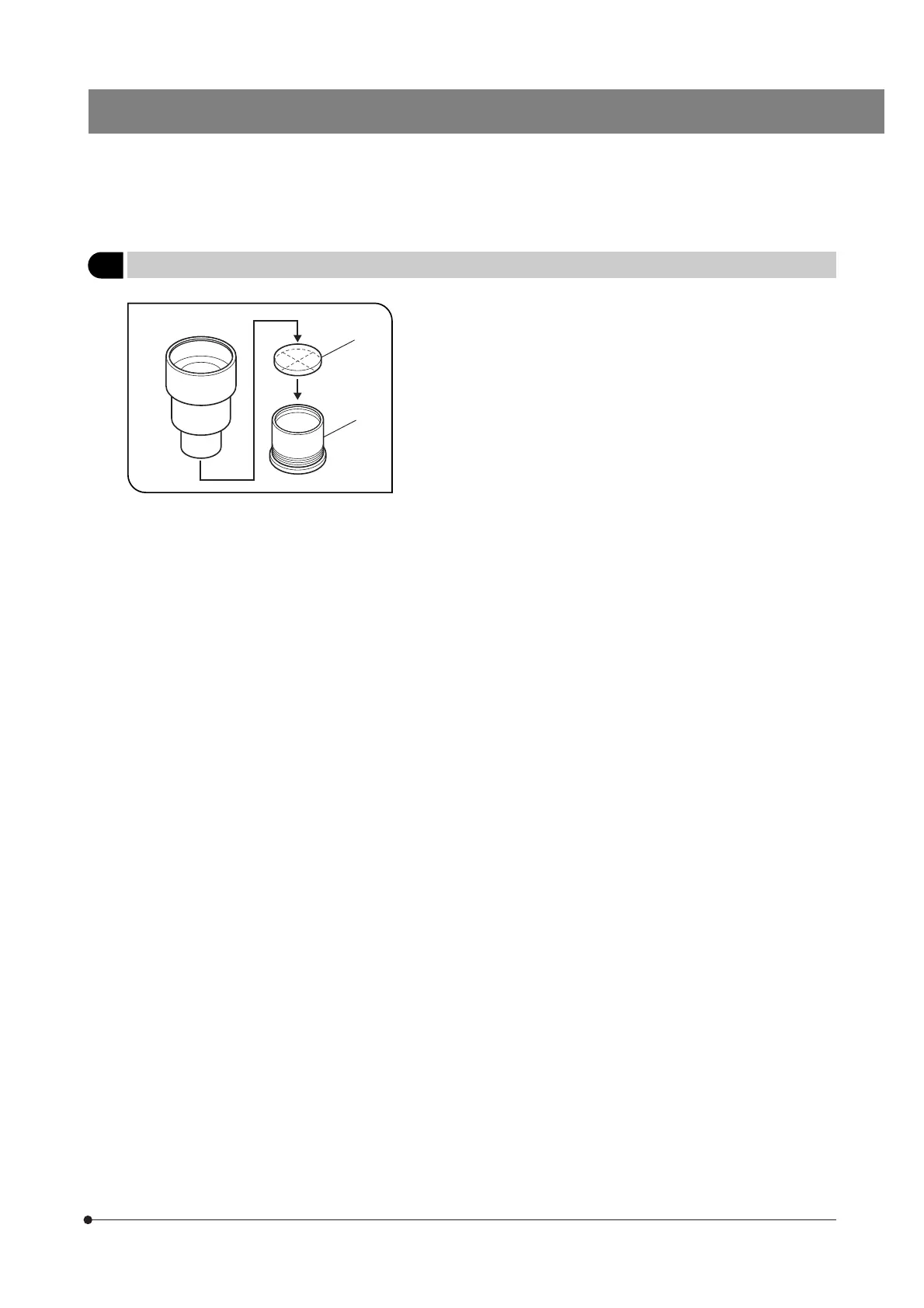

(Fig. 21)
Fig. 21
@
²
