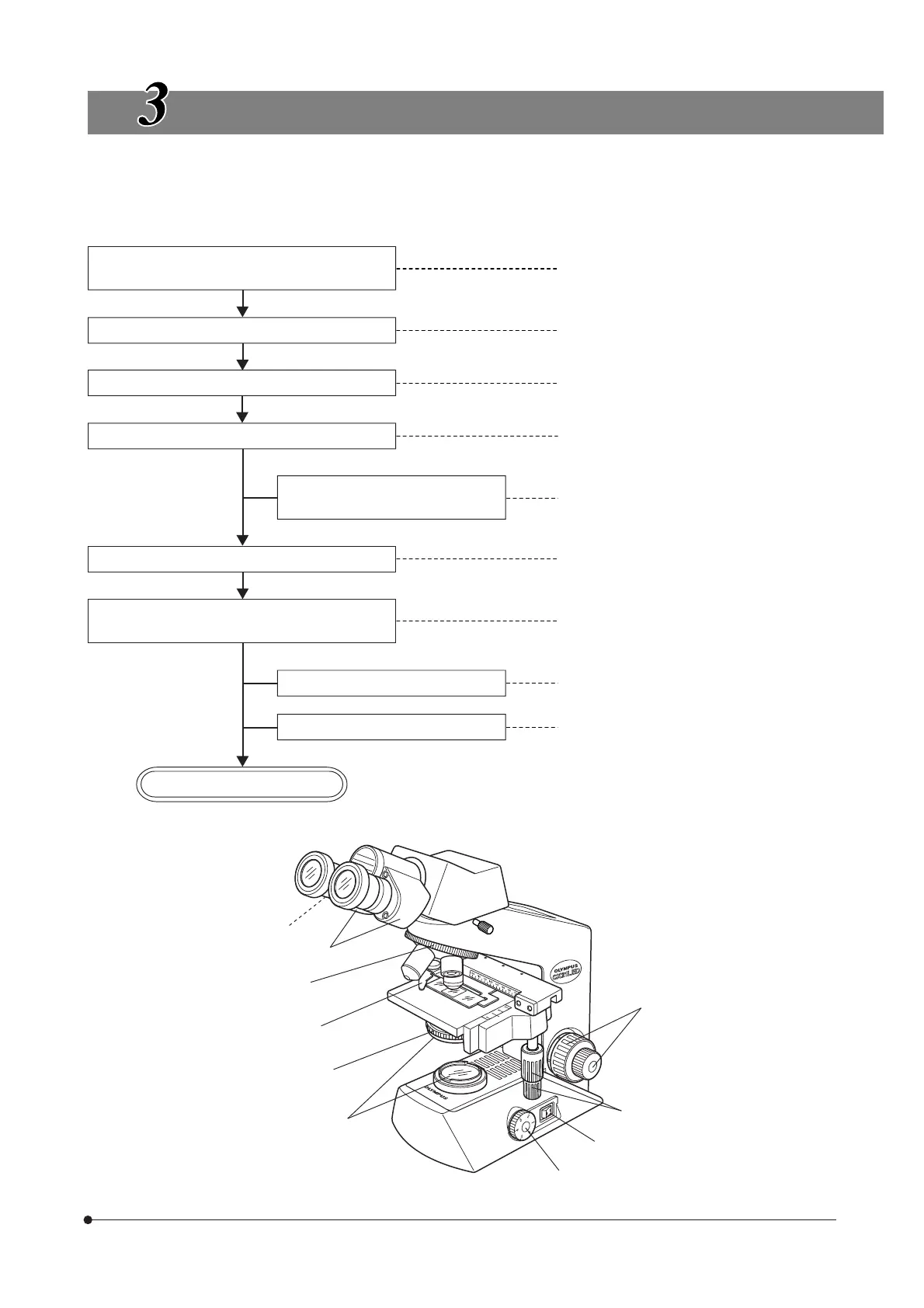

SUMMARY OF BRIGHTFIELD OBSERVATION PROCEDURE
Set the main switch to “ I " (ON) and adjust
the brightness.
1Main switch (P. 7)
2Light intensity adjustment knob (P. 7)
Place the specimen on the stage.
3Specimen holder (P. 7)
4X-axis/Y-axis feed knobs (P. 7)
Engage the 10X objective in the light path. 5Revolving nosepiece (P. 10)
Bring the specimen in focus
6Coarse/fine focus adjustment knobs (P. 8)
Adjust the interpupillary distance.
Adjust the diopter.
7Binocular tube (P. 9)
8Diopter adjustment ring (P. 9)
Adjust the aperture iris diaphragm. 9Aperture iris diaphragm ring (P. 10)
Engage the objective to be used in the light
path and bring the specimen in focus.
aFilters (Diameter: 45 mm) (P. 5)
Engage the required filters.
5Revolving nosepiece (P. 10)
6Coarse/fine adjustment knobs (P. 8)
Adjust the brightness.
2Light intensity adjustment knob (P. 7)
Start observation.
(Controls Used)
(Page)
1
2
4
6
a
9
3
5
7
8
