ASSEMBLY

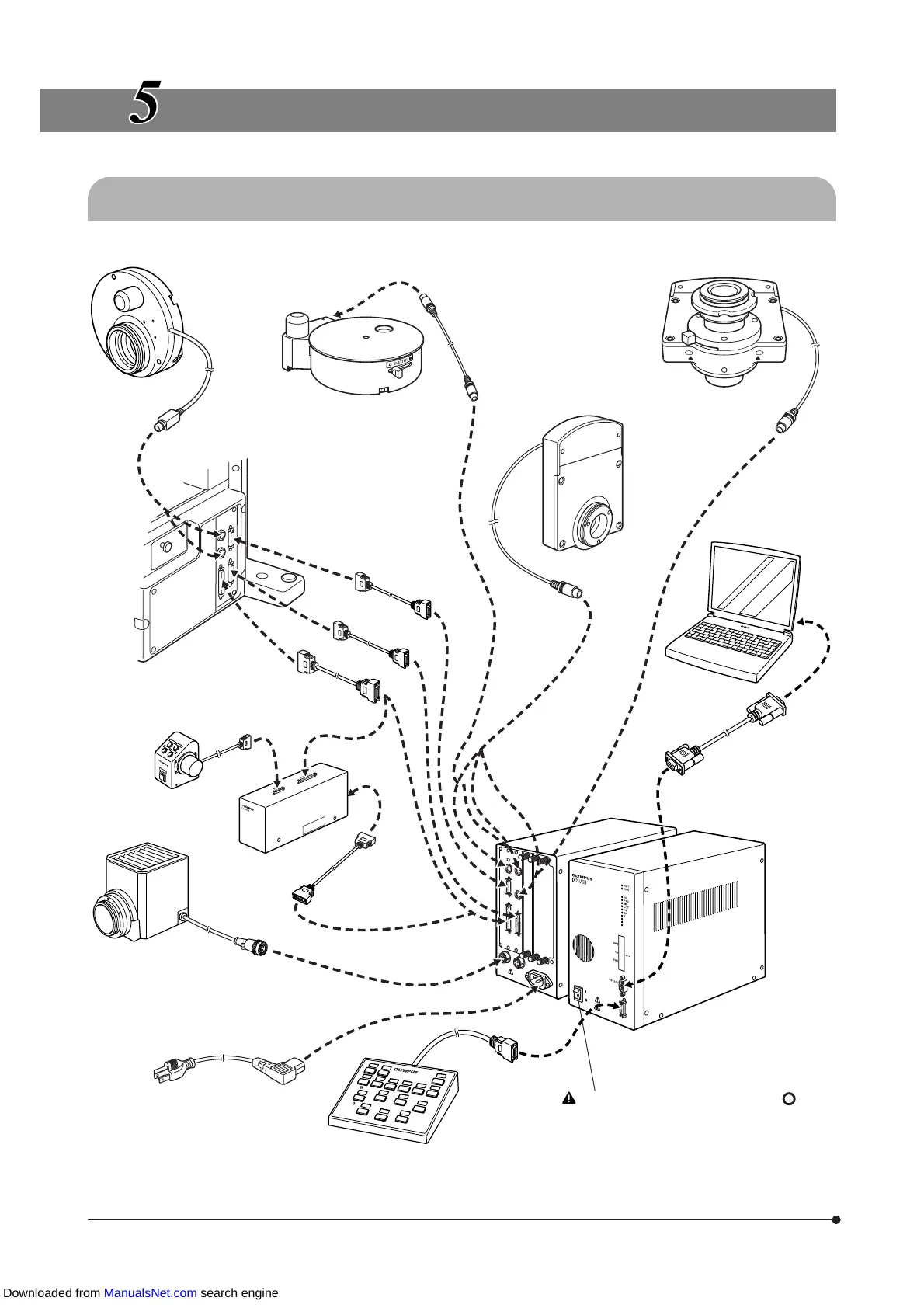

5-1 Assembly Diagram
Motorized shutter
*
IX2-SHA
Motorized fluorescence
mirror unit cassette
IX2-RFACA
Motorized long-WD universal
condenser
IX2-LWUCDA
Filter wheel
U-FWO
U-FWR
Microscope
frame
IX81S1F-2
IX81S8F-2
IX81F-2
100 W halogen bulb lamp housing
U-LH100L-3
IX-HLSH100 + U-RMT (extension cord)
IX-LH100-3 + U-RMT (extension cord)
Rear panel
Hand Switch
U-HSTR2
Power cord
RS232C cable
Control Box
IX2-UCB-2
Be sure to set the main switch to “ ” (OFF)
before connecting cables.
Focusing knob unit
U-FH
Focusing
interface
U-IFFH
PC
*
Plug the IX2-SHA into the SHA1 (top) connector when it has been mounted in the transmitted illumination light path,
and plug it into the SHA2 (bottom) connector when it has been mounted in the reflected illumination light path.
