IX2-UCB/U-HSTR2
NOMENCLATURE
}The functions of the IX2-UCB-2 control box and U-HSTR2 hand switch described in the following pertain only to
those available when this system configuration is used. The GX71/GX51 motorized system does not use the
controls that are not described below.

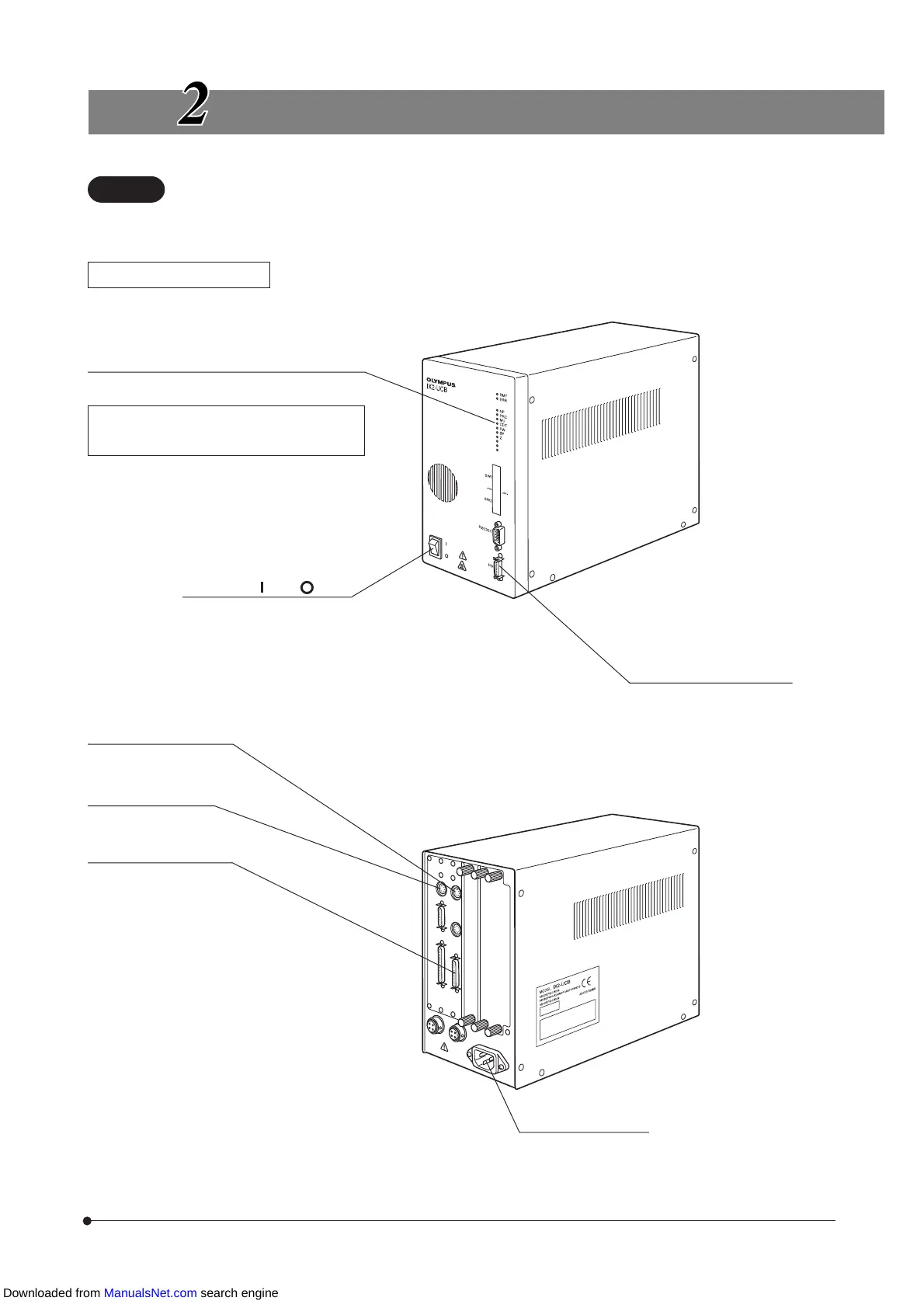

Control Box IX2-UCB-2
Indicator LEDs
· RMT: Lights in remote mode. (Orange)
· ERR: Blinks in case of an error. (Red)
Each of the following indicators lights (in Green)
when the corresponding module is connected
and blinks when it is functioning.
· NP: Motorized revolving nosepiece
· MU: Motorized mirror turret unit GX-RTUA
· FW: Filter wheel U-FWR
Main switch ( : ON. : OFF)
HS (Hand Switch) connector
RFACA/FW1 connector
(Connector for GX-RTUA)
MAIN3 connector
(Connector for U-REMMT)
Power cord connector
CAUTION
FW3 connector
(Connector for U-FWR)
