36

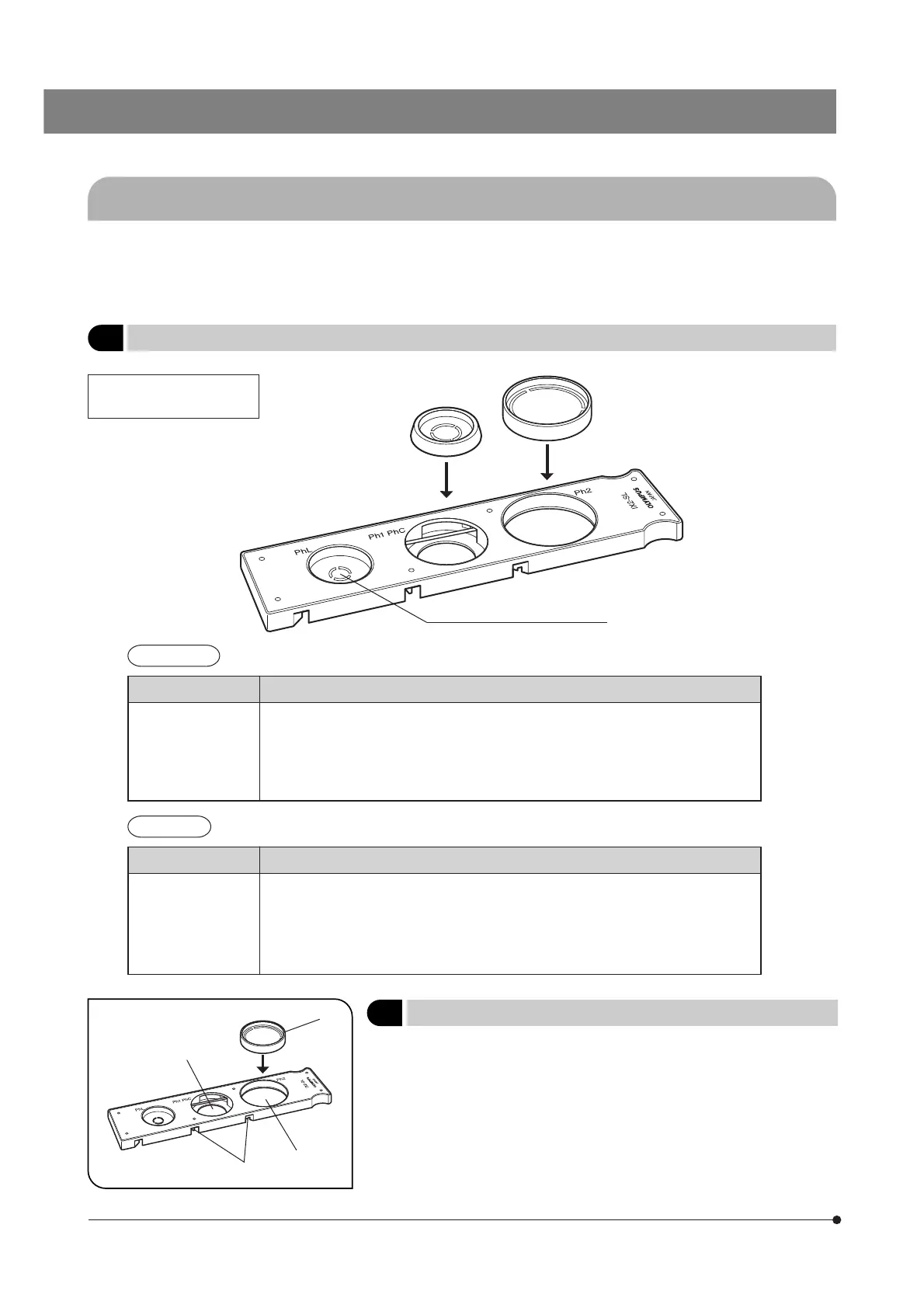

5-2 Phase Contrast Observation (Using the IX2-ILL30 Column)
}A phase contrast slider, phase contrast objective, phase contrast optical element and the U-CT30 centering telescope
(which is not required when the U-BI90CT binocular observation tube is used) are required for phase contrast observa-
tion.
}If a DIC slider and/or analyzer are engaged in the light path, disengage them.
Phase Contrast Slider
IX2-SL
Optical element
IX2-SLPHC
IX2-SLPH1
Optical element
IX2-SLPH2
Built-in optical element (for PhL)
Not detachable.
2
Attaching the Optical Elements
(Fig. 54)
}When using an objective that is not compatible with the built-in optical
element, it is required to use a special optical element.
1. To insert the IX2-SLPH2 optical element, insert it in the idle position ² so
that the surface with indication @ faces upwards.
2. When attaching the IX2-SLPHC or IX2-SLPH1 optical element in the center
position ³, insert the provided centering knobs into the screw holes |,
loosen them, insert the optical element and tighten lightly the centering
knobs again.
1
Phase Contrast Optical Elements and Applicable Objectives
Optical Element Applicable Objectives
PhL (Built in) UPlanFl4XPh
IX2-SLPH1 UPlanFl10XPh, UPlanFl20XPh, LCPlanFl20XPh, UPlanApo10XPh
IX2-SLPHC CPlanFl10XPh, CPlan10XPh, LCAch20XPh
IX2-SLPH2 UPlanFl40XPh, LCPlanFl40XPh, LCPlanFl60XPh, UPlanApo20XPh, LCAch40XPh
LUCPlan40XPh, SLCPlanFl40XPh
Fig. 54
@
²
³
|
Optical Element Applicable Objectives
PhL (Built in) UPlanFLN4XPh
IX2-SLPH1 UPlanFLN10XPh, UPlanFLN20XPh, LUCPlanFLN20XPh
IX2-SLPHC CPlanN10XPh, LCAch20NXPh, CPlanFLN10XPh
IX2-SLPH2 UPlanFLN40XPh, LUCPlanFLN40XPh, LUCPlanFLN60XPh,
LCAch40XPh, UPlanFLN60XOIPh
UIS2 Series
UIS Series
