7
: Observation/
: Side port

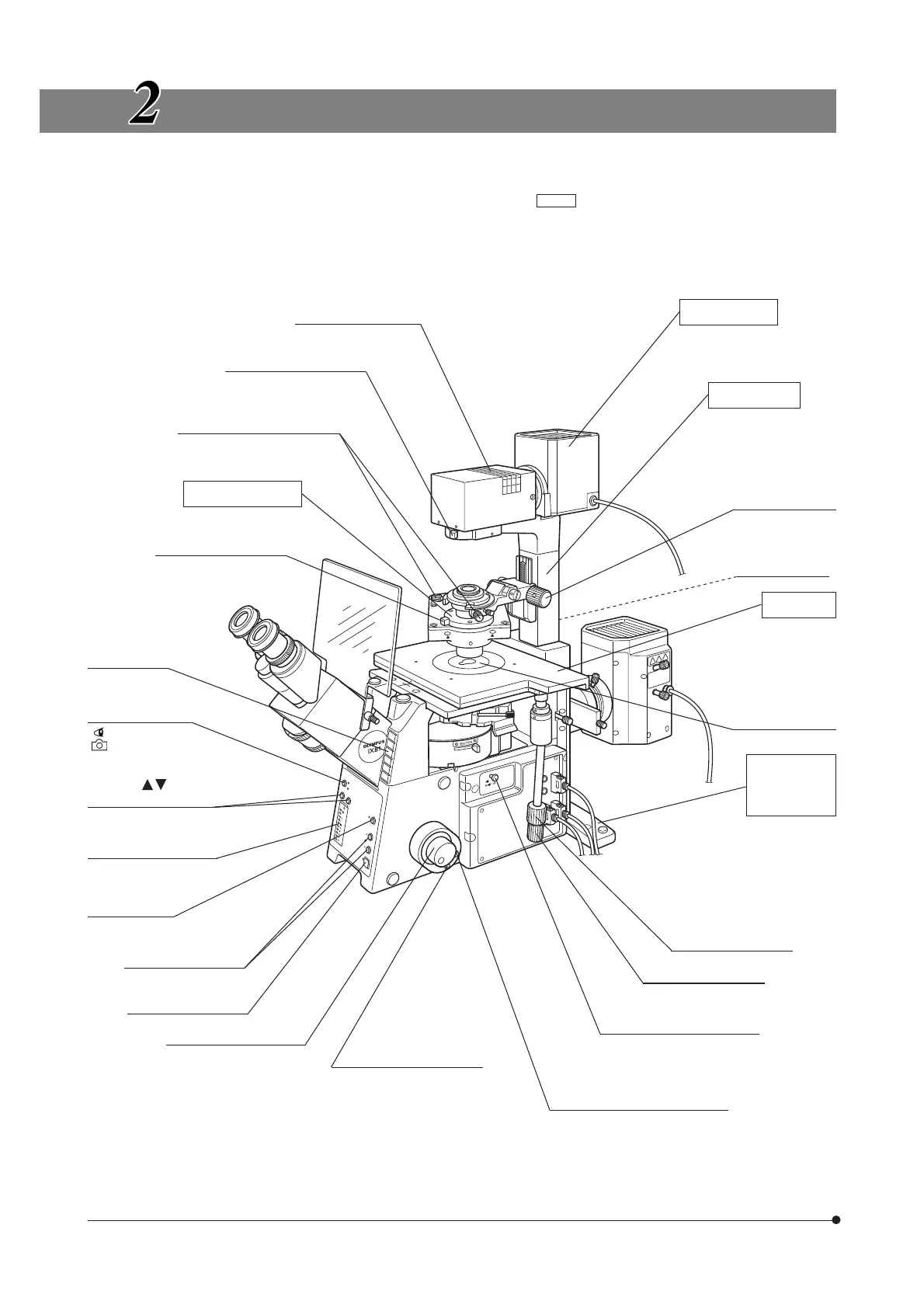

CONTROLS
}If you have not yet assembled the microscope, read Chapter 9, “ASSEMBLY” (pages 49 to 58).
· The illustration shows the system composed of modules enclosed in .
· For the reflected light fluorescence modules including the IX2-RFACA, IX2-RFA, U-LH100HG and IX2-UCB/U-HSTR2, refer to
their separate instruction manuals.
Filter pocket (Page 21)
Field iris diaphragm lever
Condenser centering knobs
IX2-LWUCDA2
Aperture iris diaphragm
lever
Indicator plate
pockets
Light path selector
button (Page 13)
Focusing buttons
(Page 15)
Auxiliary button
Transmitted light ON-
OFF button (Page 13)
Lamp voltage indicator
(Page 13)
Light intensity control
buttons (Page 13)
Focusing knob (Page 15)
Detachable.
IX2-ILL100
Condenser height
adjustment knob
(Page 22)
Stage center plate
(Page 16)
IX81S1F-3
IX81S8F-3
IX81F-3
Y-axis knob (Page 17)
U-LH100L-3
IX2-SFR
Column tilt
clamping screw
(Page 20)
X-axis knob (Page 17)
Magnification selector knob (Page
14)
Pushed in: 1X
Pulled out: 1.6X
Objective escape/return button
(Page 15)
Coarse/fine
adjustment switching
button (Page 15)
To Next Page
