Olympus IX81 - Page 14

9
Manipulator mounting
screw holes
M6 screw (x 6)
Y-axis knob
X-axis knob
Condenser height fine
adjustment knob
(Page 24)
}This is a manually controlled condenser.
Aperture iris diaphragm
lever (Page 23)
Aperture iris diaphragm
lever (Page 23)
}This is a manually controlled condenser. Re-
fer to the separate instruction manual for de-
tails.

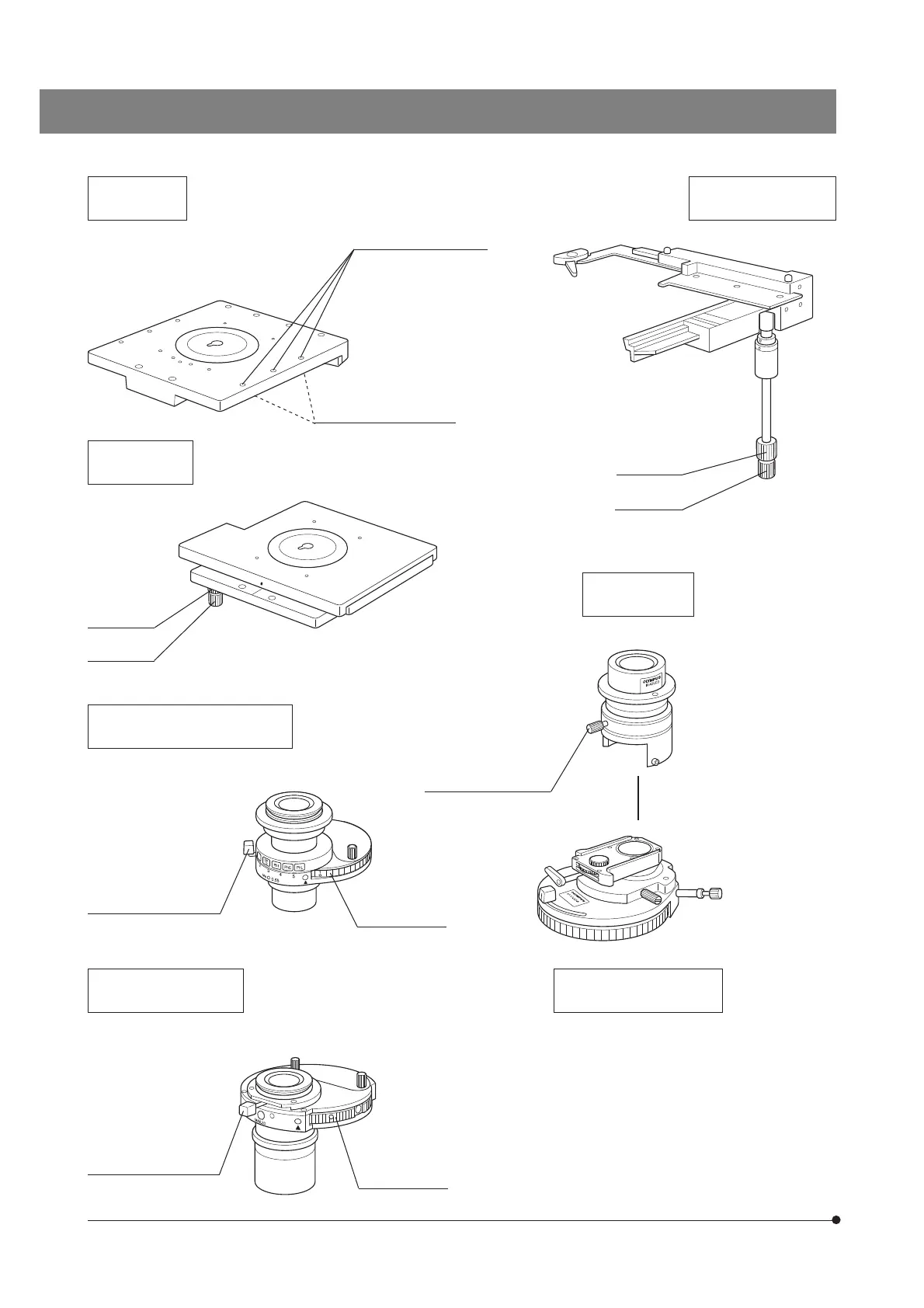

Plain Stage
IX2-SP
Mechanical Stage
IX-MVR
Cross Stage
IX-SVL2
UCD Adapter
IX-ADUCD
LWD Universal Condenser
IX2-LWUCD
ULWCD Condenser
IX-ULWCD
Universal Condenser
U-UCD8
(On both sides)
Y-axis knob
X-axis knob
Turret (Page 23)
Turret (Page 23)
}This condenser is manually operated.
IX-MVR mounting screw
holes (Page 52)
