Olympus U-UCD8 - Mounting the Optical Elements

U-UCD8
22
5-2 Mounting the Optical Elements
1,3: The U-DIC10S or U-DP10S optical element can be mounted.
2: Any of the U-PH1S, U-PH2S and U-PH3S can be mounted.
4,8: The U-DFA and U-PH3 can be mounted. When not in use,
DIC optical elements can be mounted.
5-7: Only DIC optical elements can be mounted because the
centering mechanism is not provided.

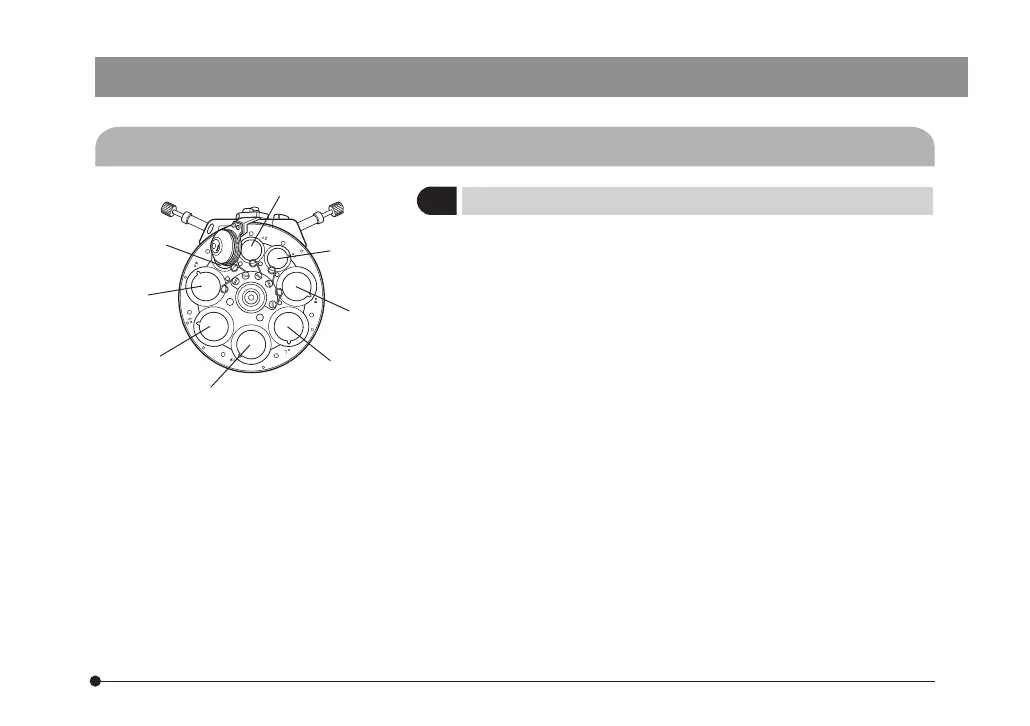

1 Optical Element Mounting Positions
(Fig. 6)
Fig. 6
1
2
3
4
5
6
7
8
