Applicable objective power
To perform Nomarski DIC observation, the transmitted light DIC slider and an analyzer (U-ANT or U-AN)
are required. Install them by referring to the instruction manual of the DIC slider.

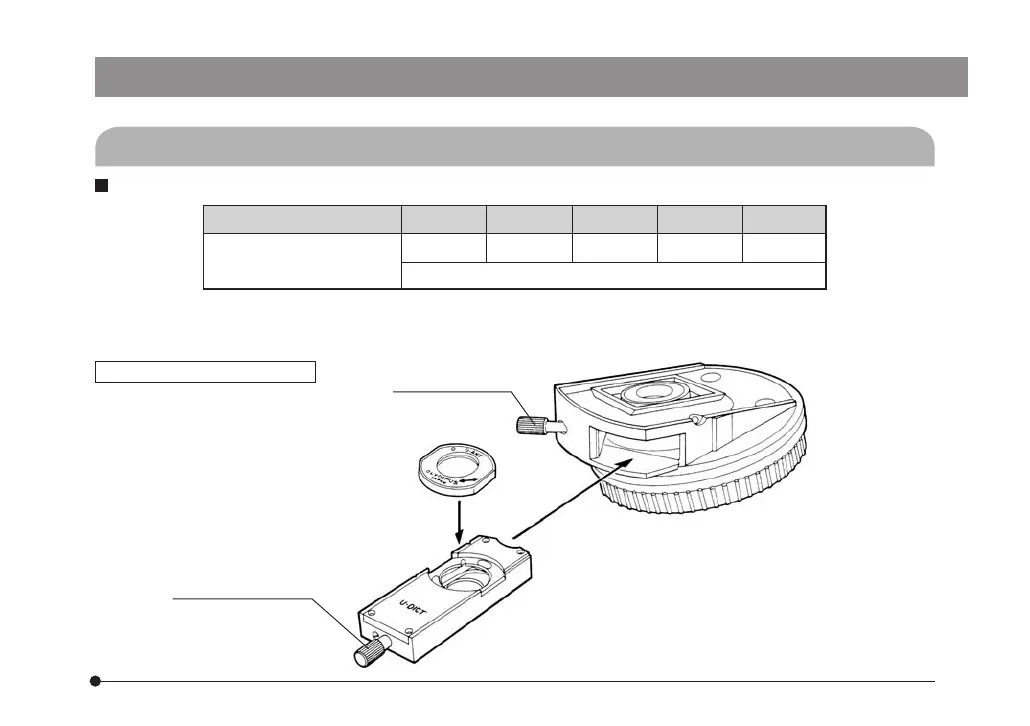

Installation Using U-DICT
Clamping knob
Analyzer for transmitted
light (U-ANT)
DIC-compatible revolving nosepiece
(U-D6RE, U-D5BDRE, etc.)
2-3 Nomarski Differential Interference Contrast Observation (DIC)
Power 10X 20X 40X 60X 100X
Nomarski Differential
¦¦¦¦¦
Interference Contrast (DIC)
Top lens IN
Transmitted light DIC slider
(U-DICT)
Prism control knob
