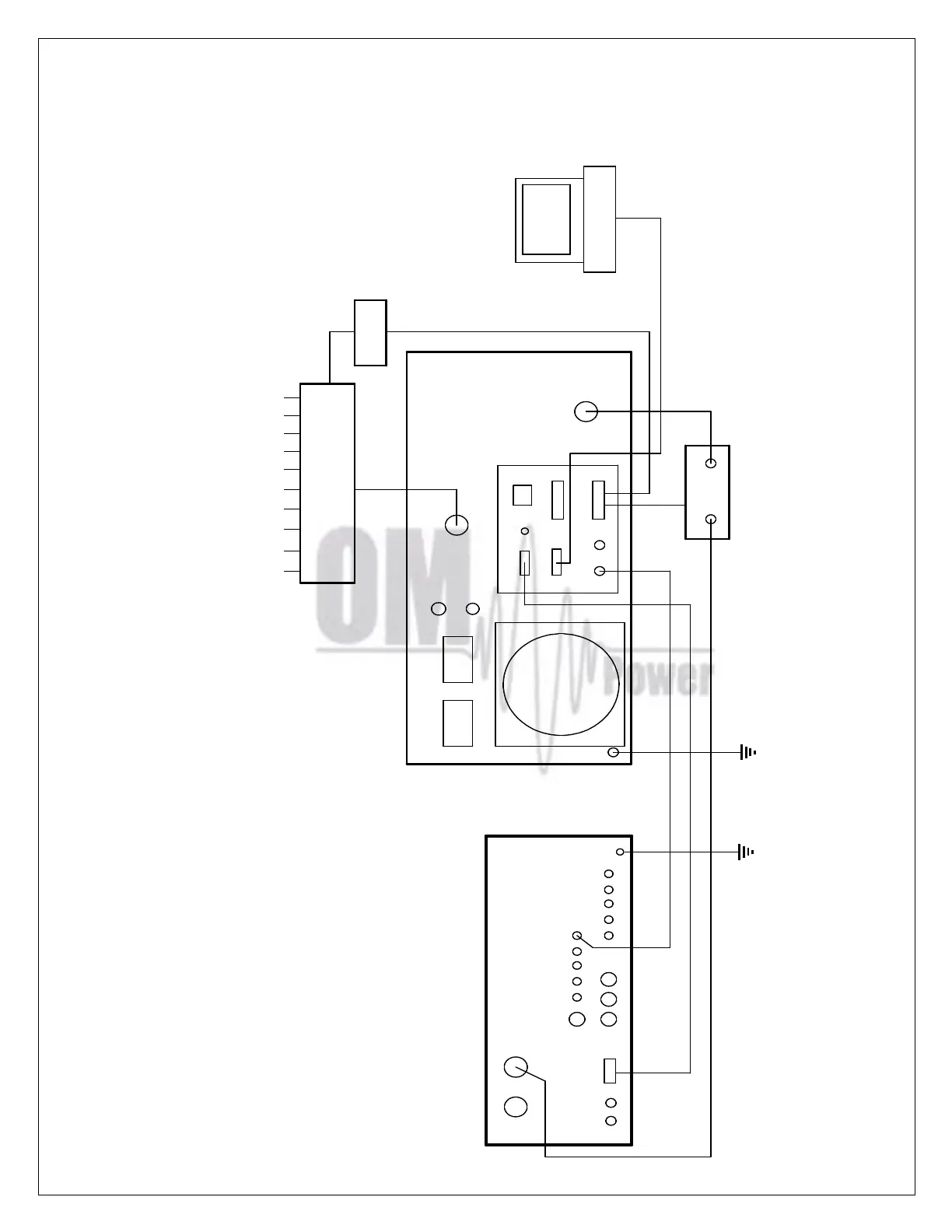

7.7. Yaesu plus BPF plus ANT Switch connection with OM2501A (OM3501A)
AC 1
OM6BPF
BCD decoder
GND
OUT
LAN
REAR VIEW
OM2501A
PC
TCVR CI-V IN
KEY
ANT & BPF CONTROL
INPUT
OUTPUT
F2 F1
AC 2
ANT switch
Bandpass filter
OUTPUTINPUT
TX GNDBAND DATA
CAT
COM port RS 232
PC
ANT
ANT2 ANT1
SEND
RS 232
FT1000MP / FT9000
