3.2.6
Alarm 1 Menu

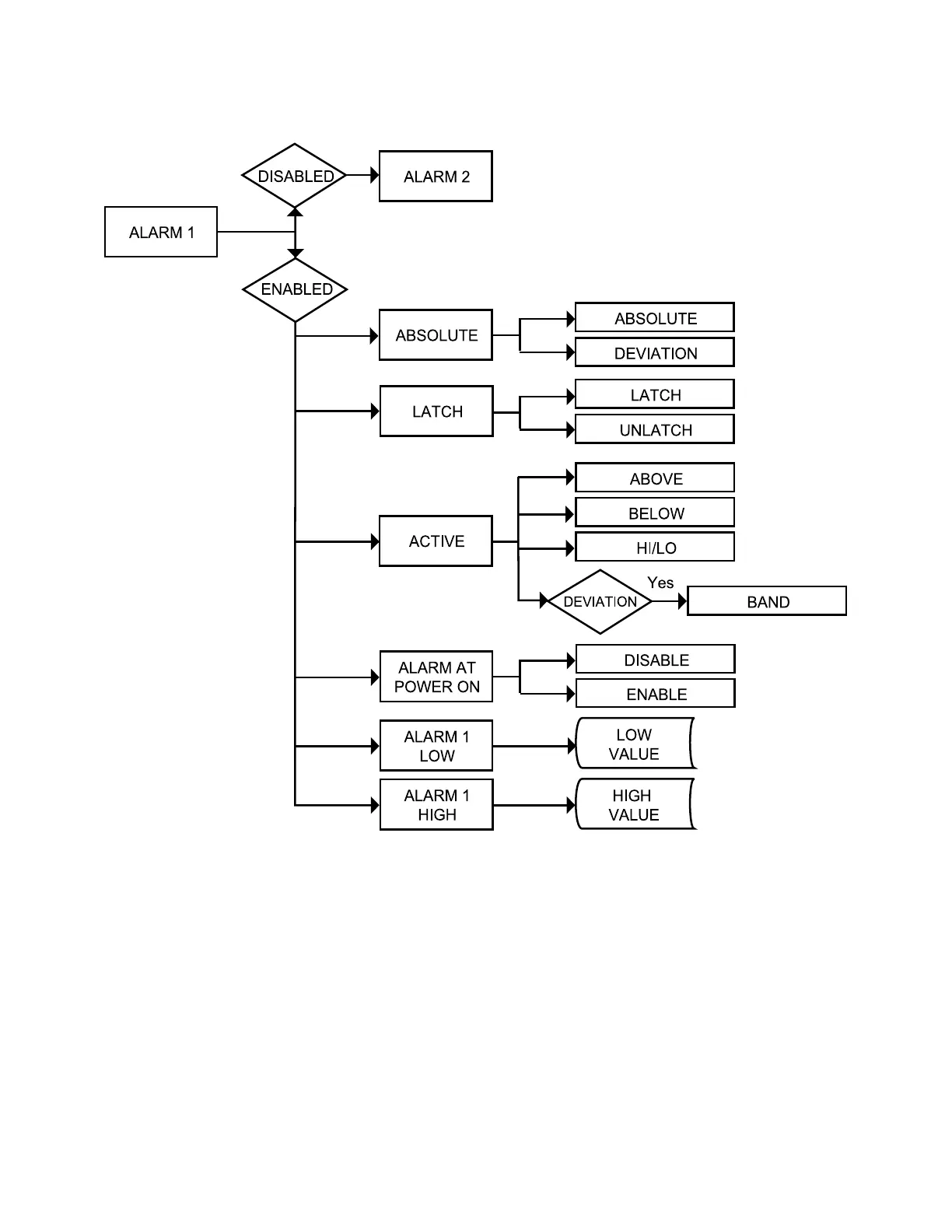

Figure 3.5 Flow Chart for
Alarm 1 Menu
ENTER
ALARM 1 MENU:
Press
a
1)
Press
a
, if necessary
, until
CNFG
prompt appears.
Press
d
2)
Display advances to
INPT
Input Menu.
Press
a
3)
Press
a
, if necessary
, until display advances to
ALR1
Alarm 1
Menu.
Press
d
4)
Display advances to
Alarm 1
ENBL
Enable or
DSBL
Disable
Submenu and flashes the previous selection.
25
28
30
Table of Contents
Table of Contents
3
Part 1: Introduction
6
Description
6
Safety Considerations
7
Before You Begin
8
Part 2: Setup
9
Front Panel View
9
Figure 2.1 Front Panel Display
9
Table 2.1 Front Panel Annunciators
9
Rear Panel Connections
10
Figure 2.2 Rear Panel Power and Output Connector Labels
10
Figure 2.3 Rear Panel Input Connector Labels
10
Table 2.2 Rear Panel Connector
10
Electrical Installation
11
Power Connections
11
Figure 2.4 Main Power Connections
11
Table 2.3 Power Connections
11
Thermocouple - Input Connection
12
Figure 2.5 Thermocouple Wiring Hookup
12
Table 2.4 TC Wire Color Chart
12
Two / Three / Four Wire RTD-Hookups
13
Figure 2.6 Two/Three/Four-Wire RTD Wiring Hookup A) RTD-1000 Ohm/Rtd-500 Ohm
13
Process Current - Wiring Hookup
14
Process Voltage - Wiring Hookup
14
Figure 2.7 Process Current Wiring Hookup (Internal and External Excitation)
14
Figure 2.8 Process Voltage Wiring Hookup A) with Sensor Excitation
14
Wiring Outputs - Wiring Hookup
15
Figure 2.9 Output Wiring Hookup A) Mechanical Relay and SSR Outputs
15
Figure 2.10 Communication Output Wiring Hookup A) RS-232 Output
15
Figure 2.11 Excitation Output
15
Part 3: Operation: Configuration Mode
16
Introduction
16
Table 3.1 Button Function in Configuration Mode
16
Menu Configuration
17
Figure 3.1 Flow Chart for ID and Setpoints
17
ID Number
18
Setpoints
19
Configuration Menu
20
Figure 3.2 Flow Chart for Configuration Menu
20
Input Type Menu
21
Figure 3.3 Flow Chart for Input Type Menu
21
Input Type (Thermocouple)
22
Input Type (RTD)
23
Input Type (Process)
24
Reading Configuration Menu
25
Figure 3.4 Flow Chart for Reading Configuration
25
Table 3.2 Conversion Table
28
Alarm 1 Menu
29
Figure 3.5 Flow Chart for Alarm 1
29
Alarm 2 Menu
33
Figure 3.6 Flow Chart for Alarm 2
33
Reading Adjust Menu
34
Figure 3.7 Flow Chart for Reading Adjust
34
Setpoint Deviation Menu/Field Calibration
35
Figure 3.8 Flow Chart for Setpoint Deviation/Field Calibration
35
ID Code Menu
36
Figure 3.9 Flow Chart for ID Code
36
Communication (Options) Menu
38
Figure 3.10 Flow Chart for Communication Option
38
Display Color Selection Menu
45
Figure 3.11 Flow Chart for Display Color Selection
45
Part 4: Specifications
48
Table 4.1 Input Properties
50
Table 5.1 Factory Preset Values
51
Part 5: Factory Preset Values
52
Ce Approval Information
53
