PART 2
SETUP
2.1 Front Panel

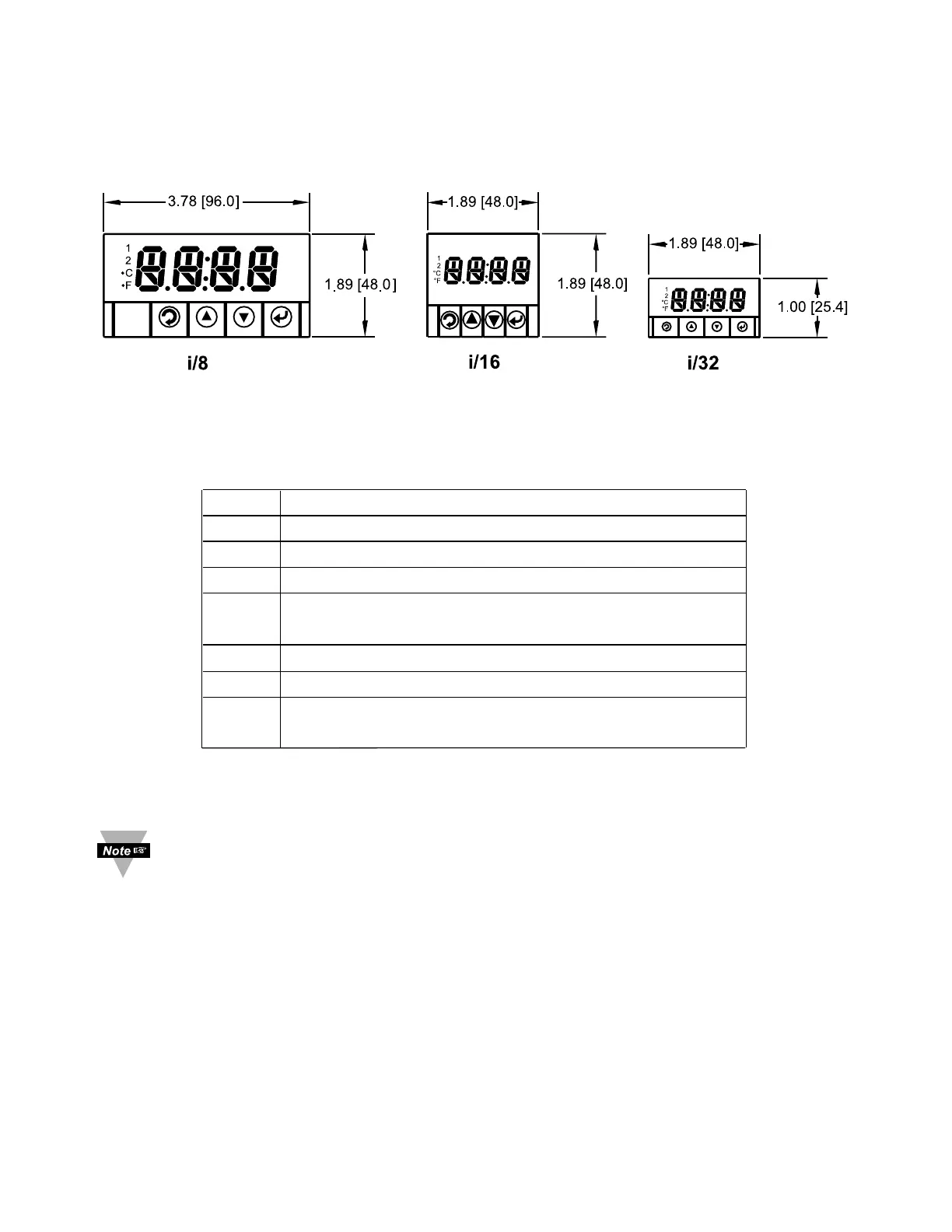

Figure 2.1 Front Panel Display
Table 2.1 Front Panel Annunciators
1 Setpoint 1/ Alarm 1 indicator
2 Setpoint 2/ Alarm 2 indicator
°C °C unit indicator
°F °F unit indicator
a
Changes display to Configuration Mode and
advances through menu items*
b
Used in Program Mode and peak recall*
c
Used in Program Mode and valley recall*
d
Accesses submenus in Configuration Mode
and stores selected values*
* See Part 3 Operation: Configuration Mode
5
Refer to the Quick Start Guide for assembly and disassembly instructions.
