3.2.5 Reading Configuration Menu

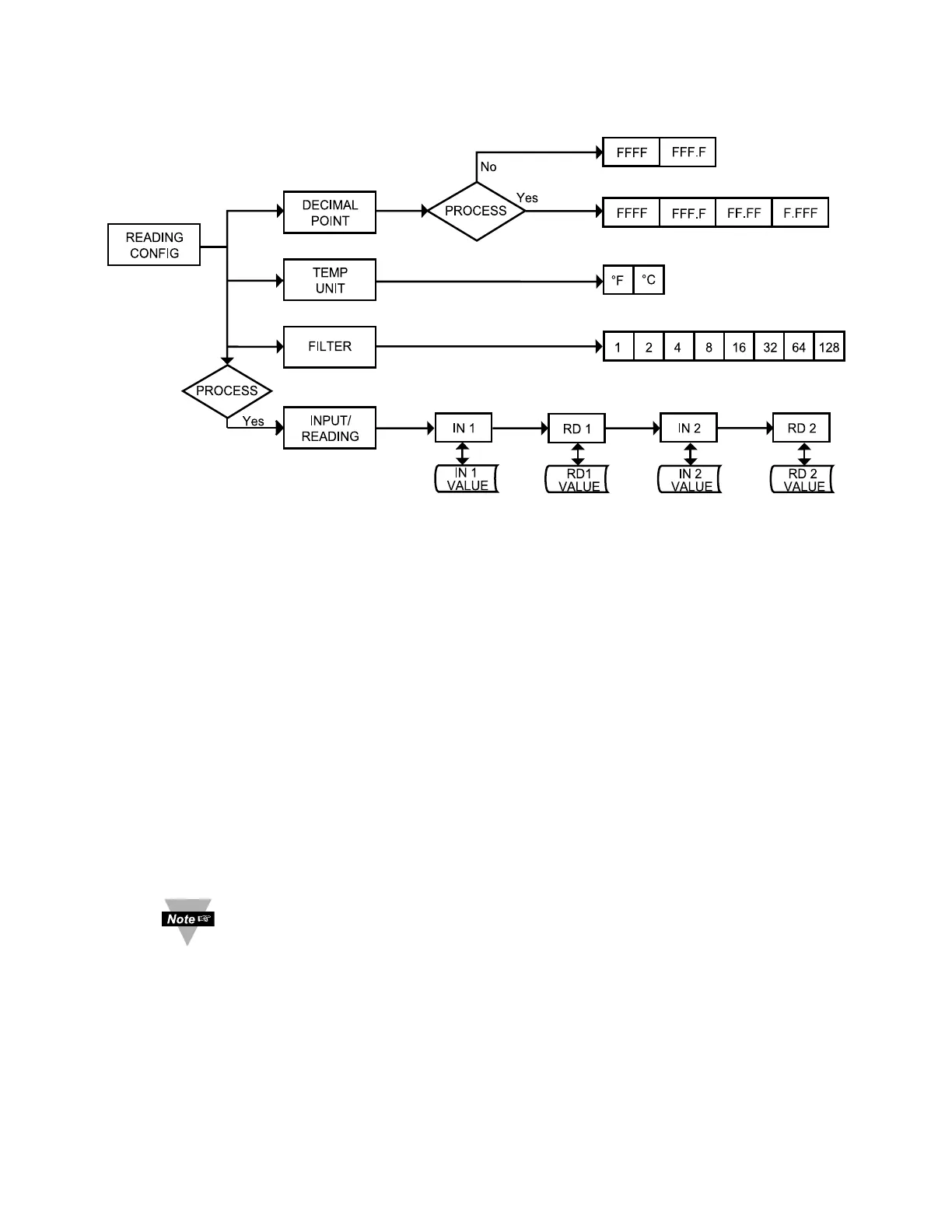

Figure 3.4 Flow Chart for Reading Configuration Menu

ENTER READING CONFIGURATION MENU:

Press

1) Press

, if necessary, until

CNFG

prompt appears.

Press

2) Display advances to

INPT

Input Menu.

Press

3) Display advances to

RDG

Reading Configuration Menu.

Press

4) Display advances to

DEC

Decimal Point.

DECIMAL POINT SUBMENU:

Press

5) Display flashes previous selection for Decimal location.

Press

6) Scroll though the available selections and choose Decimal

location:

FFFF

FFF.F

(also

FF.FF

and

F.FFF

— if

PROC

Process type was selected in the Input Type Menu).

Press

7) Display shows

STRD

stored message momentarily and then

advances to

TEMP

Temperature Unit.

Decimal Point for Process Input Type is passive.
