omi ED 270 - Wiring Diagrams

Cod. 710.0138.01.00 Rev1C – 09.2009 61 - 75

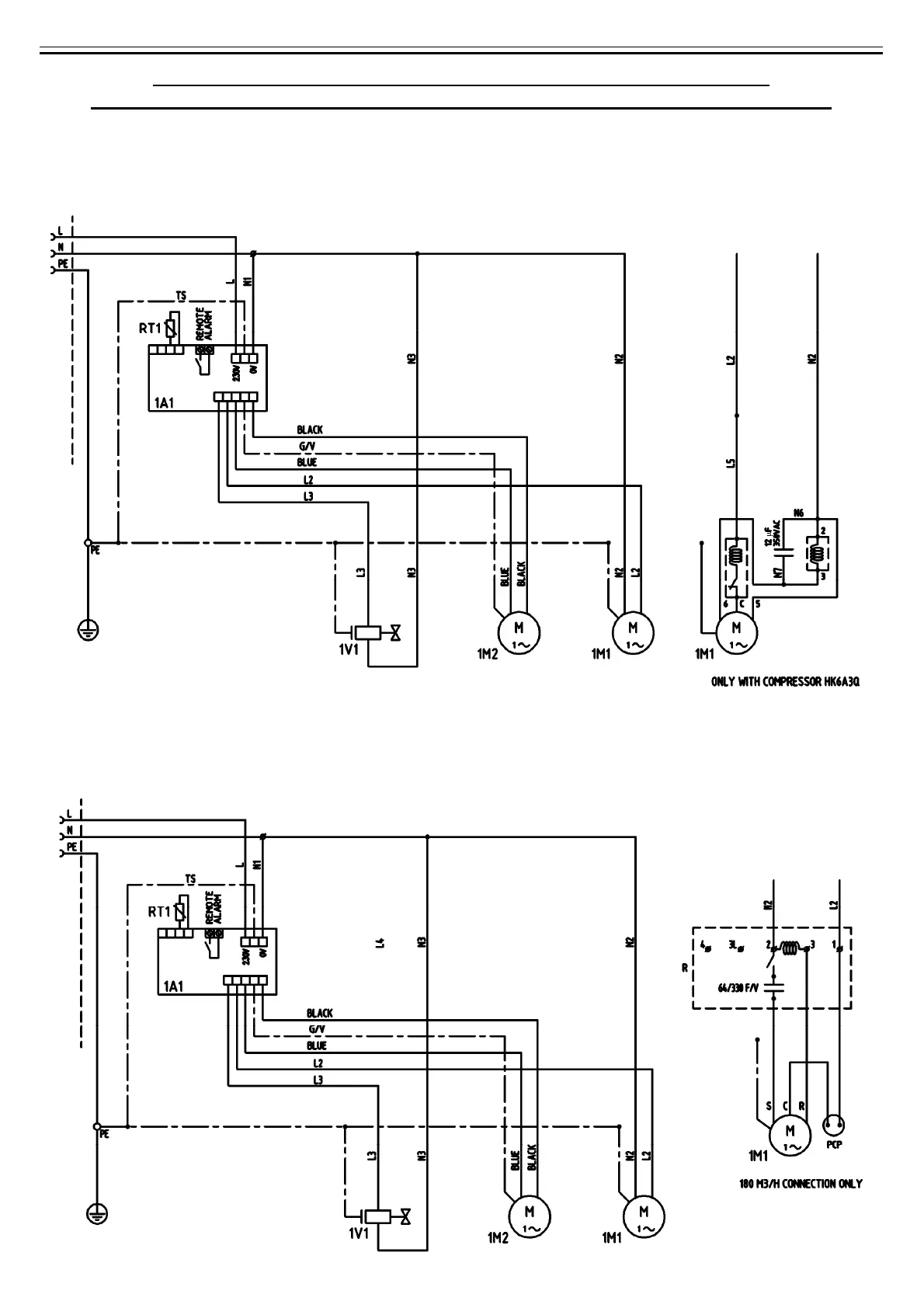

B) SCHEMA ELETTRICO - WIRING DIAGRAM - SCHALTSCHEMA
ESQUEMA ELECTRICO - SCHEMA ÉLECTRIQUE - ЭЛЕКТРИЧЕСКАЯ СХЕМА
Mod. 18 – 24 – 54 – 72 – 108 – 144 – 180 Nm3/h
(Mod. 300 – 400 – 900 – 1200 – 1800 – 2400 – 3000 Nl/min)
(230V/1Ph/50Hz)
Cod. 714.0104.01.00 – Rev. 00
Mod. 18 – 24 – 54 – 72 – 108 – 144 – 180 Nm3/h
(Mod. 300 – 400 – 900 – 1200 – 1800 – 2400 – 3000 Nl/min)
(230V/1Ph/60Hz)
Cod. 714.0104.06.00 – Rev. 00
