omi ED24-SR - Page 28

Cod. 710.0138.62.00 Rev00 – 03.2016 27 - 30

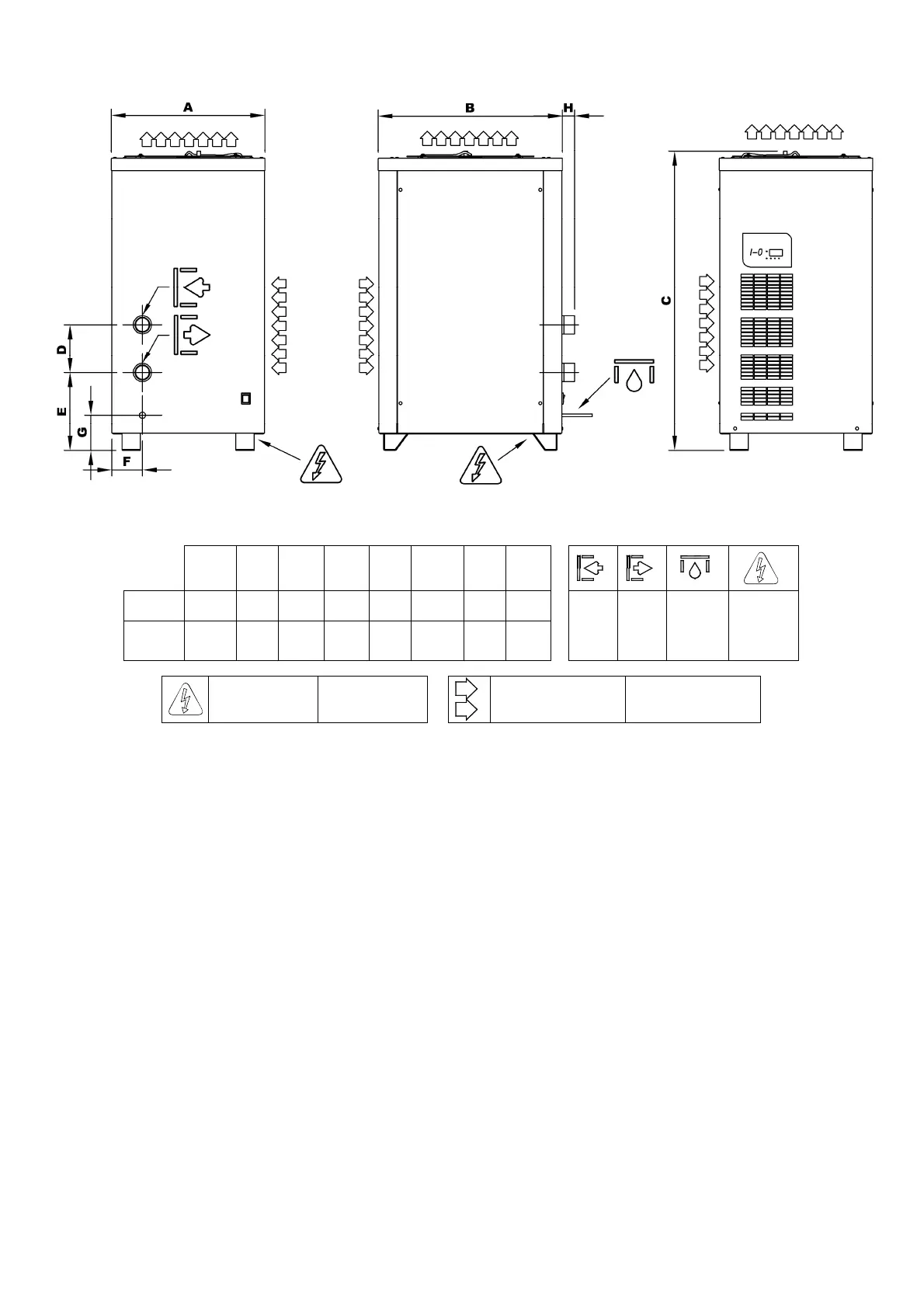

Models ED270 to ED360
A B C D E F G H
mm
500 679 980 157 254 99.5 114 40
1"
1/2
NPT
1"
1/2
NPT
Ø 6mm
230/1/60
V/ph/Hz
inches
19"
11/16
26"
3/4
38"
9/16
6"
3/16
10"
3"
15/16
4"
1/2
1"
9/16
Power supply Alimentation Air flow Circulation de l'air
