omi ED24-SR - F) Basic Spare Parts; F) Pièces de Rechange Essentielles

Cod. 710.0138.62.00 Rev00 – 03.2016 28 - 30
F) BASIC SPARE PARTS - PIÈCES DE RECHANGE ESSENTIELLES
Model
ED18 ED25-SR ED54 ED72 ED108 ED144 ED180
Pos Element
1A1
Electronic Controller 305.0063.01 305.0063.01 305.0063.01 305.0063.01 305.0063.01 305.0063.01 305.0063.01
RT1
Temperature probe 243.0034.01 243.0034.01 243.0034.01 243.0034.01 243.0034.01 243.0034.01 243.0034.01
1M1
Refrigerant compressor 201.0114.00 201.0114.00 201.0116.00 201.0116.00 201.0146.00 201.0149.00 201.0047.00
1M2
Fan Motor 210.0053.00 210.0053.00 210.0053.00 210.0053.00 210.0113.00 210.0113.00 210.0113.00
VT
Fan blade 213.0020.00 213.0020.00 213.0020.00 213.0020.00 213.0010.00 213.0010.00 213.0010.00
G
Grid - 213.0044.01 213.0044.01 213.0044.01 213.0046.01 213.0046.01 213.0046.01
1P1
High pressure Switch 245.0093.00 245.0093.00 245.0093.00 245.0093.00 245.0093.00 245.0093.00 245.0093.00
1S1
Main power switch - - - - 250.0003.00 250.0003.00 250.0003.00
1V1
Complete solenoid drain valve 240.0106.00 240.0106.00 240.0106.00 240.0106.00 240.0106.00 240.0106.00 240.0106.00
1B1
Drain solenoid valve coil 240.0112.00 240.0112.00 240.0112.00 240.0112.00 240.0112.00 240.0112.00 240.0112.00
CND
Condenser 921.0063.01 921.0048.01 921.0065.01 921.0065.01 921.0067.01 921.0067.01 921.0068.01
FF
Filter dryer 630.0049.00 630.0049.00 630.0049.00 630.0049.00 630.0050.00 630.0050.00 630.0050.00
FR
Drain screen 630.0041.00 630.0041.00 630.0041.00 630.0041.00 140.0100.00 140.0100.00 140.0100.00
K1
Contactor switch - - - - 242.0105.00 242.0105.00 242.0105.00
SC
Heat exchanger base 904.0097.01 904.0097.01 904.0101.01 904.0101.01 904.0102.01 904.0103.01 904.0103.01
STC
Control panel cover 711.0261.01 711.0261.01 711.0260.01 711.0260.01 711.0260.01 711.0260.01 711.0260.01

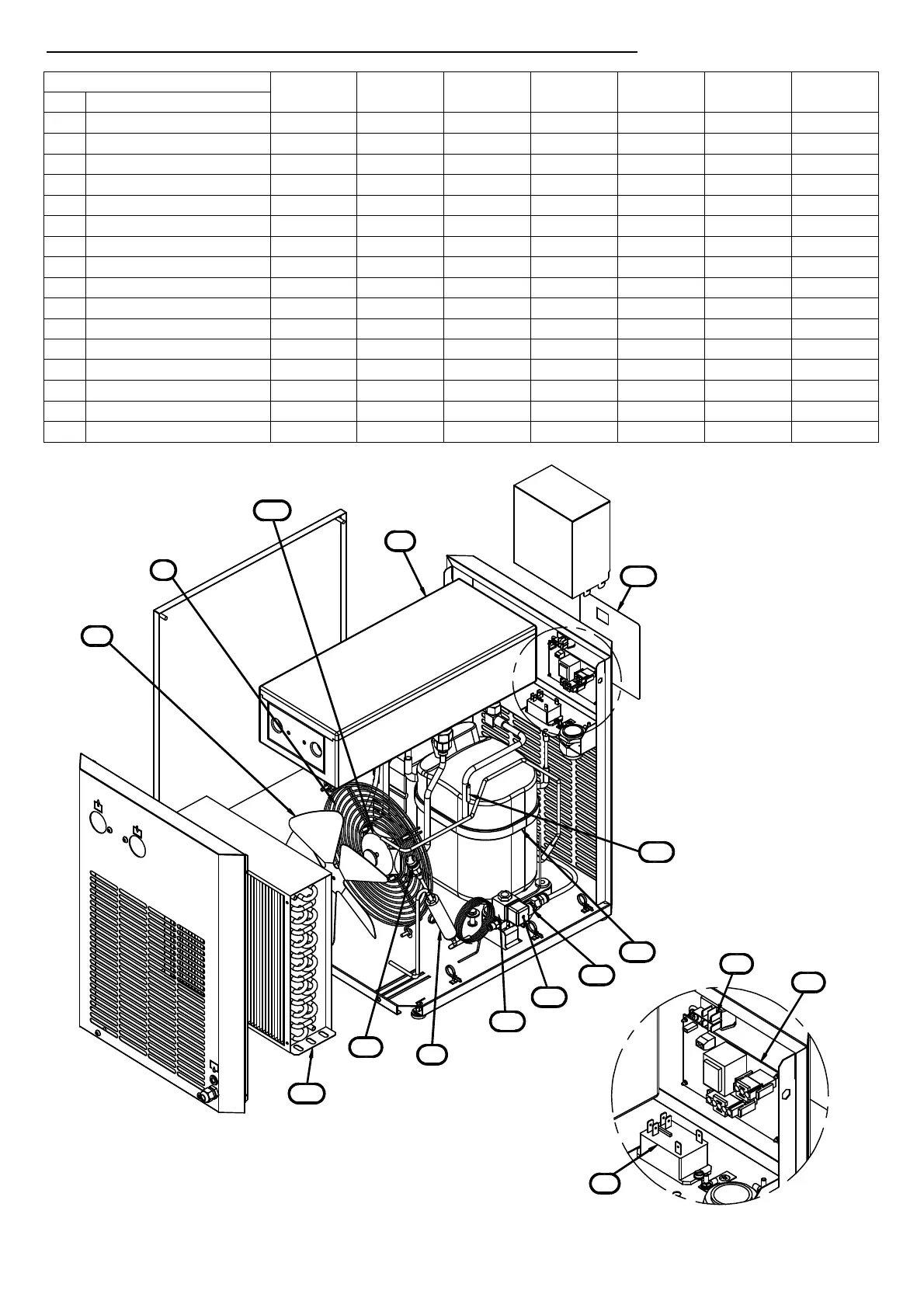

DETAIL A
