omi ED24-SR - Page 30

Cod. 710.0138.62.00 Rev00 – 03.2016 29 - 30
Model
ED270 ED360

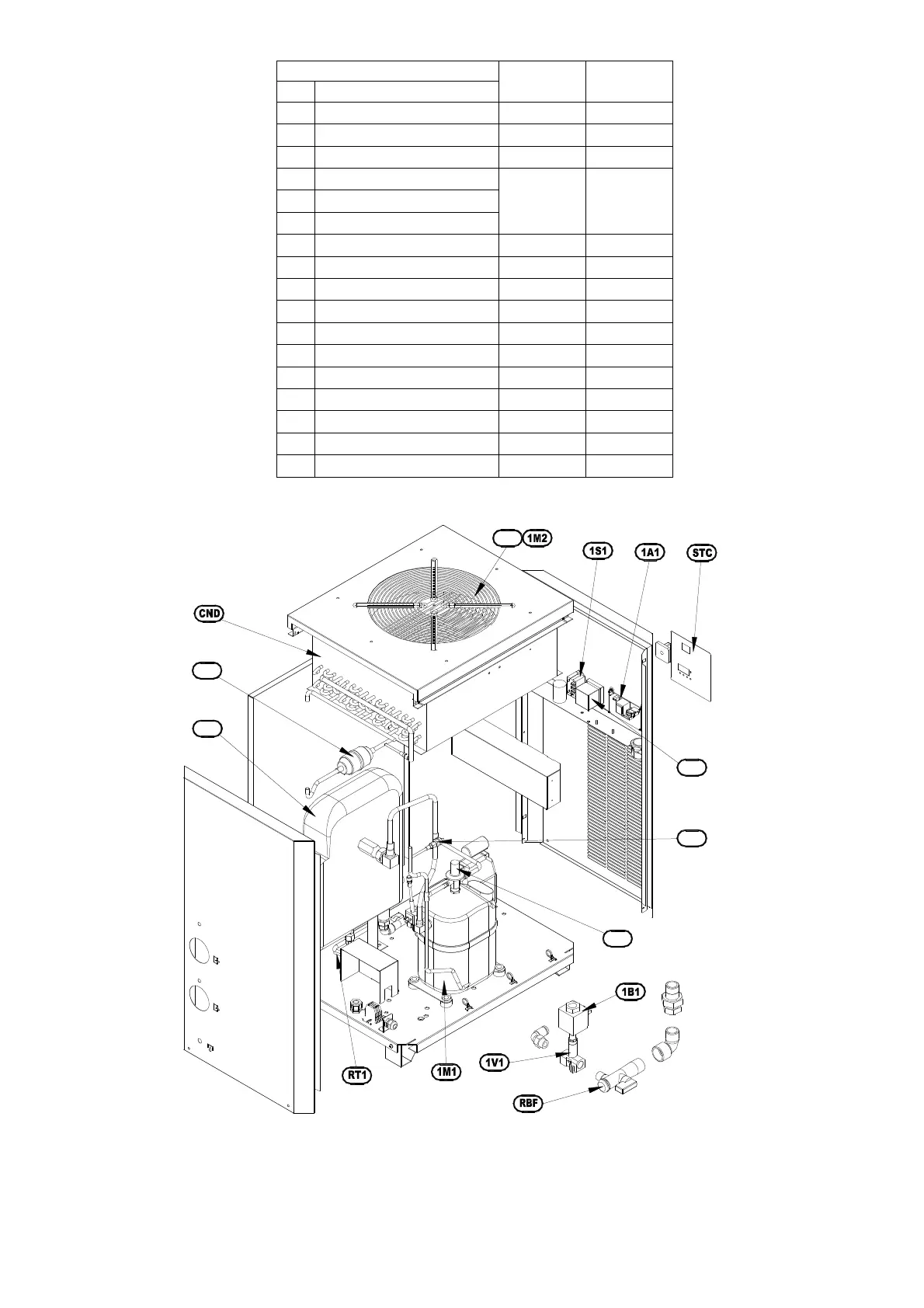

Pos Element
1A1
Electronic Controller 305.0061.01 305.0061.01
RT1
Temperature probe 243.0034.02 243.0034.02
1M1
Refrigerant compressor 201.0137.00 201.0137.00
1M2
Fan Motor
210.0151.00 210.0151.00
VT
Fan blade
G
Grid
1P1
High pressure Switch 245.0093.00 245.0093.00
1S1
Main power switch 250.0015.00 250.0015.00
1V1
Complete solenoid drain valve 240.0108.00 240.0108.00
1B1
Drain solenoid valve coil 240.0102.00 240.0102.00
CND
Condenser 921.0069.01 921.0070.01
FF
Filter dryer 630.0092.00 630.0092.00
RBF
Drain screen 140.0100.00 140.0100.00
K1
Contactor switch 242.0031.00 242.0031.00
SC
Heat exchanger base 920.0033.01 920.0033.01
STC
Control panel cover 711.0260.01 711.0260.01
VB
By-pass hot gas valve 142.0120.00 142.0120.00
SC
VB
VT
FF
K1
1P1
